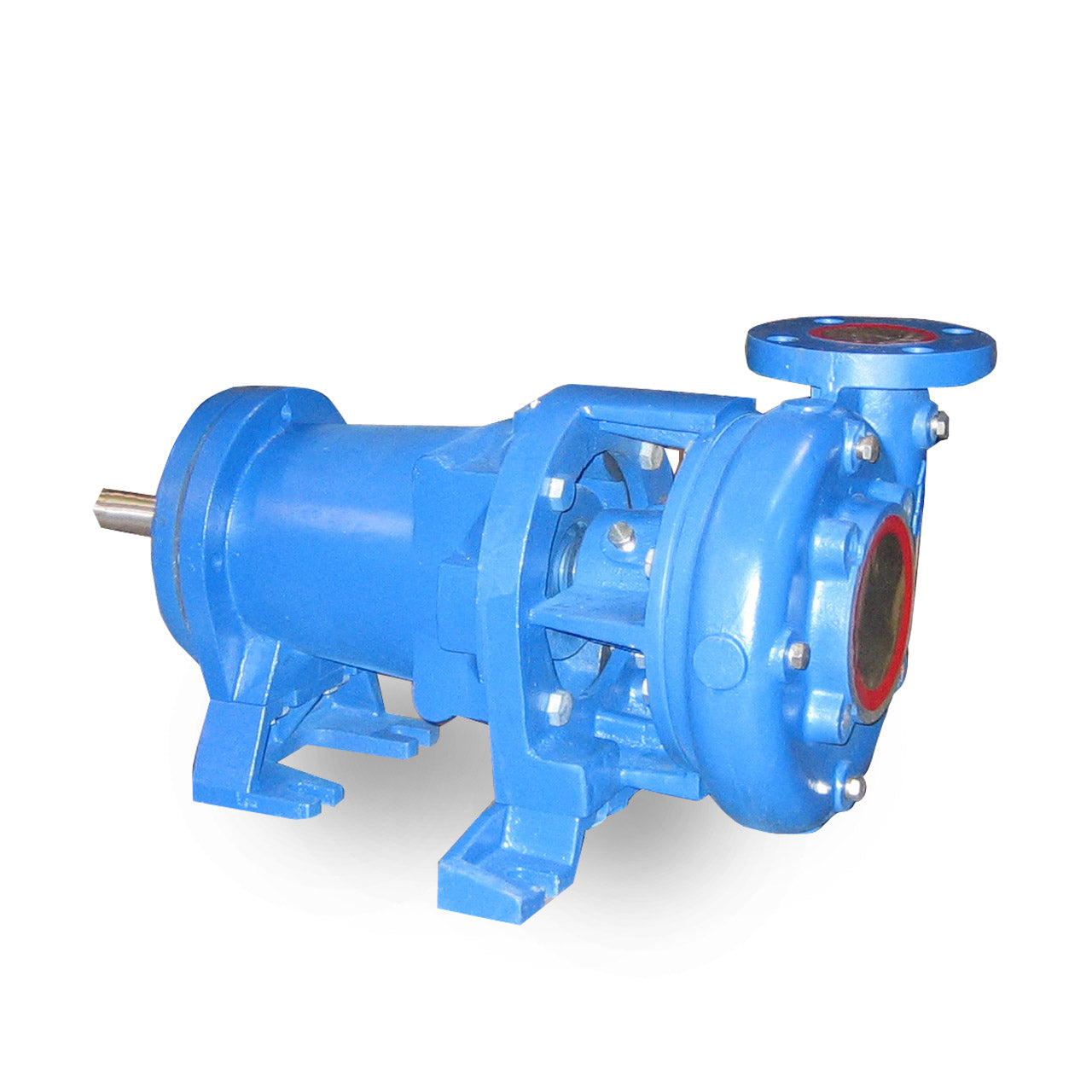

Power-Flo PF2025CU7 End Suction Centrifugal Pump

Power-Flo PF2025CU7 End Suction Centrifugal Pump

SKU : PFPF2025CU7

In Stock Quantity:0

:
Brand : Power-Flo
$4,866.52 USD
Shipping calculated at checkout.

Description

Power-Flo End Suction Centrifugal Pump Description

Suitable for general industrial use such as liquid transfer or as booster pumps.

Power-Flo End Suction Centrifugal Pump Typical Application

  • Designed For Marine, Municipal and Industry
  • Designed For The User Who Has A Separate Power Source Suitable For Driving Through Couplings Or With Belts.

Power-Flo End Suction Centrifugal Pump Features

  • DISCHARGE: 2", 125lb, ANSI Flange, can be Placed in 4 Different Locations Depending on the Piping Requirements
  • SUCTION: 2-1/2", 125lb, ANSI Flanged
  • LIQUID TEMPERATURE: 225°F Continuous
  • CASING: Cast Iron, ASTM A48, Back Pull-Out Design, with Removing Suction & Discharge
  • CASING WEAR RING: Bronze C95200
  • CASE WORKING PRESSURE: 175 PSI
  • MOTOR BRACKET: Cast Iron ASTM A48
  • POWER FRAME: Cast Iron ASTM A48
  • SHAFT: Stainless Steel AISI420
  • SHAFT SLEEVE: Bronze C95200
  • PAINT: Air Dry Enamel
  • HARDWARE: Steel
  • SEAL: Single Mechanical, Carbon/Ni-Resist/Buna-N
  • IMPELLER: Enclosed, Stainless Steel, Dynamically Balanced, ISO G6.3, Max Solids 3/8"
  • BEARING-PUMP END: Single Row, Ball, Grease Lubricated
  • BEARING-DRIVE END: Single Row, Ball, Grease Lubricated
  • WARRANTY: 1 Year

Specifications

Power-Flo PF2025CU7 End Suction Centrifugal Pump Specifications

  • SEAL: Mechanical Type, Carbon/Buna-N/Ni-Resist
  • BEARING-PUMP END: Single Row Ball, Grease Lubricated
  • BEARING-DRIVE END: Single Row Ball, Grease Lubricated
  • MAX HEAD: 51.0' @ 1750 RPM
  • MAX FLOW RATE: 225.0 GPM @ 1750 RPM
  • IMPELLER TYPE: Enclosed Type, Dynamically Balanced, ISO G6.3, 81-3-7-9 Bronze OR 304 Stainless
  • WEAR RING: Bronze C95200
  • SPHERICAL SOLIDS: 0.375"
  • SUCTION: 2.5" 125 lb ANSI Flange Included
  • DISCHARGE: 2.0" 125 lb ANSI Flange Included

Power-Flo End Suction Centrifugal Pump Performance Curve



WARNING Cancer and Reproductive Harm - www.P65Warnings.ca.gov WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Resources

Power-Flo End Suction Centrifugal Pump Product Resources


Download Power-Flo PF2025CU7 End Suction Centrifugal Pump Catalog Sheet

Download Power-Flo End Suction Centrifugal Pump Installation Manual
