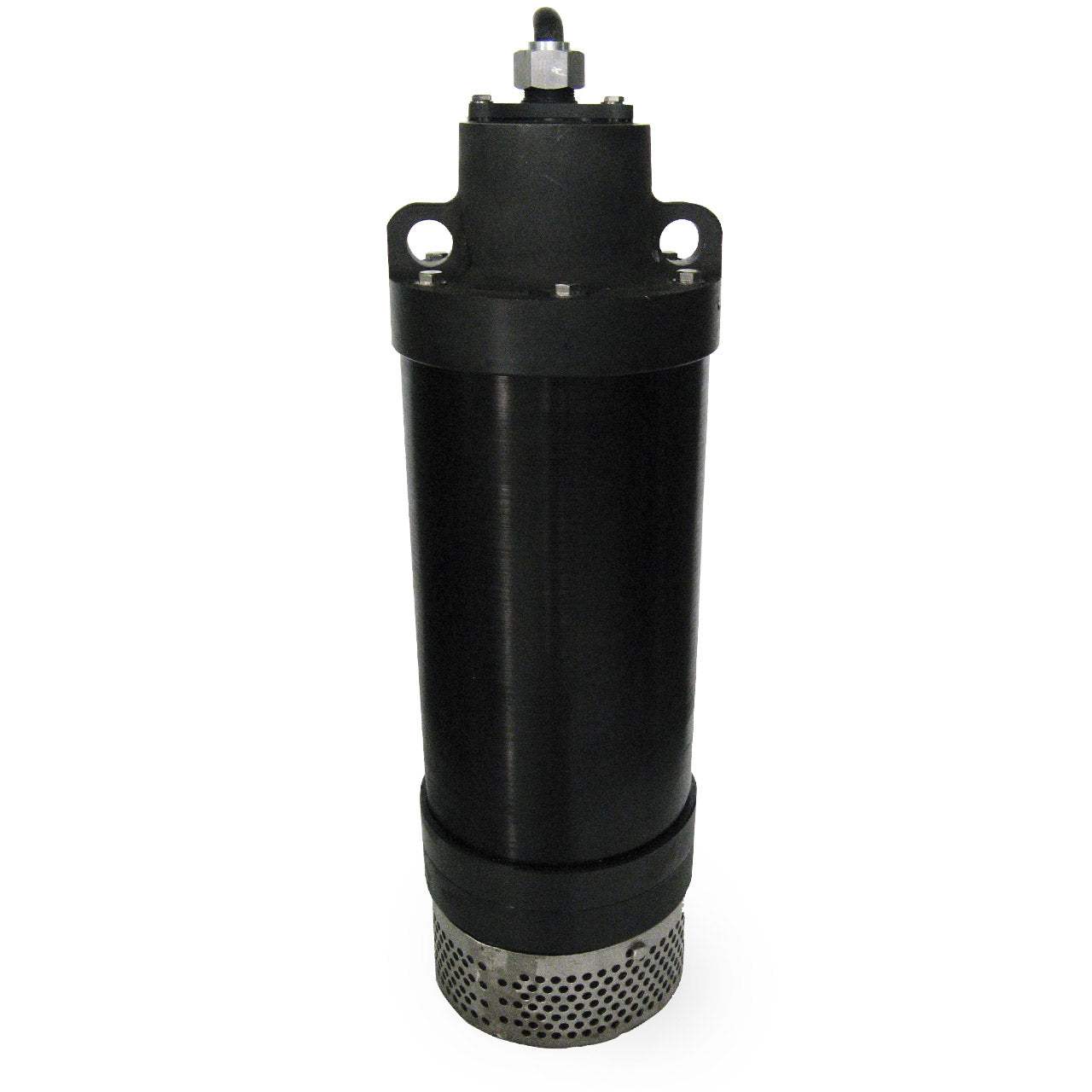

Power-Flo Submersible Fountain Pump Description

Power-Flo pumps are compact, lightweight powerful Portable Electric Submersible Pumps. They are whisper quiet and will perform in any position. Power-Flo pumps can be staged in series for higher head applications.

Power-Flo in-line design assures maximum heat transferred to the pumped liquid. Power-Flo pumps can operate in up to 140°F (60°C) temperature water. Power-Flo design provides the coolest operating motor for maximum life.

Power-Flo Submersible Fountain Pump Typical Application

• Decorative Water Features
• Dewatering

Power-Flo Submersible Fountain Pump Features

• DISCHARGE CASE: Aluminum, Hard Anodized, 3" w/2" Adapter
• DIFFUSER: Aluminum, Hard Anodized
• SUCTION CASE: Aluminum, Hard Anodized with Wear Resistant Polyurethane Liner
• FRAME & OUTER CASE: Aluminum, Hard Anodized
• WEAR PLATE: Polyurethane
• PUMP SHAFT: Stainless Steel
• IMPELLER: Hardened 17-4 Stainless Steel
• HARDWARE: Stainless Steel
• O-RINGS: Buna-N
• SEAL: Tandem Mechanical, Oil Lubricated
• INBOARD: Carbon/Ceramic/Buna-N, Hardware-300 Series Stainless
• OUTBOARD: Silicon Carbide/Silicon Carbide/Buna-N Hardware-300 Series Stainless
• STRAINER: Stainless Steel, 1/4" Holes
• UPPER BEARING: Single Row, Shielded, Ball, Pre-Lubricated High-Temperature Grease, Load: Radial
• LOWER BEARING: Single Row, Shielded, Ball, Pre-Lubricated High-Temperature Grease, Load: Radial & Thrust
• CORD ENTRY: 50 ft., 12/4 SOOW, with Strain Relief and Pressure Grommet for Sealing
• MOTOR: Class H Insulation, VPI
• CONTROL: NEMA 3R Rainproof, w/Start Capacitor, Start Relay and Circuit Breaker
• WARRANTY: 1 Year

Power-Flo PF20112 Specifications

• VOLTAGE: 1ø, 230V, 60Hz
• HORSEPOWER: 2.0 HP
• AMP DRAW (full load): 11.7
• MOTOR TYPE: Class H Insulation, VPI
• RPM: 3450
• MAXIMUM HEAD: 76'
• MAXIMUM CAPACITY: 175 GPM
• DISCHARGE PIPE SIZE: 3” w/2” Adapter
• IMPELLER TYPE: Hardened 17-4 Stainless Steel
• IMPELLER DIAMETER: 5.32"
• CORD LENGTH: 50'
• CORD SIZE: 12/4 SOOW, with Strain Relief and Pressure Grommet for Sealing
• BODY CONSTRUCTION: Aluminum
• MAXIMUM LIQUID TEMPERATURE: 140°F (60°C)
• CONTROL BOX REQUIRED

Power-Flo Submersible Fountain Pump Performance Curve

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Power-Flo Submersible Fountain Pump Product Resources

Download Power-Flo Submersible Fountain Pump Catalog Sheet

Download Power-Flo Submersible Fountain Pump Installation and Owners Manual
