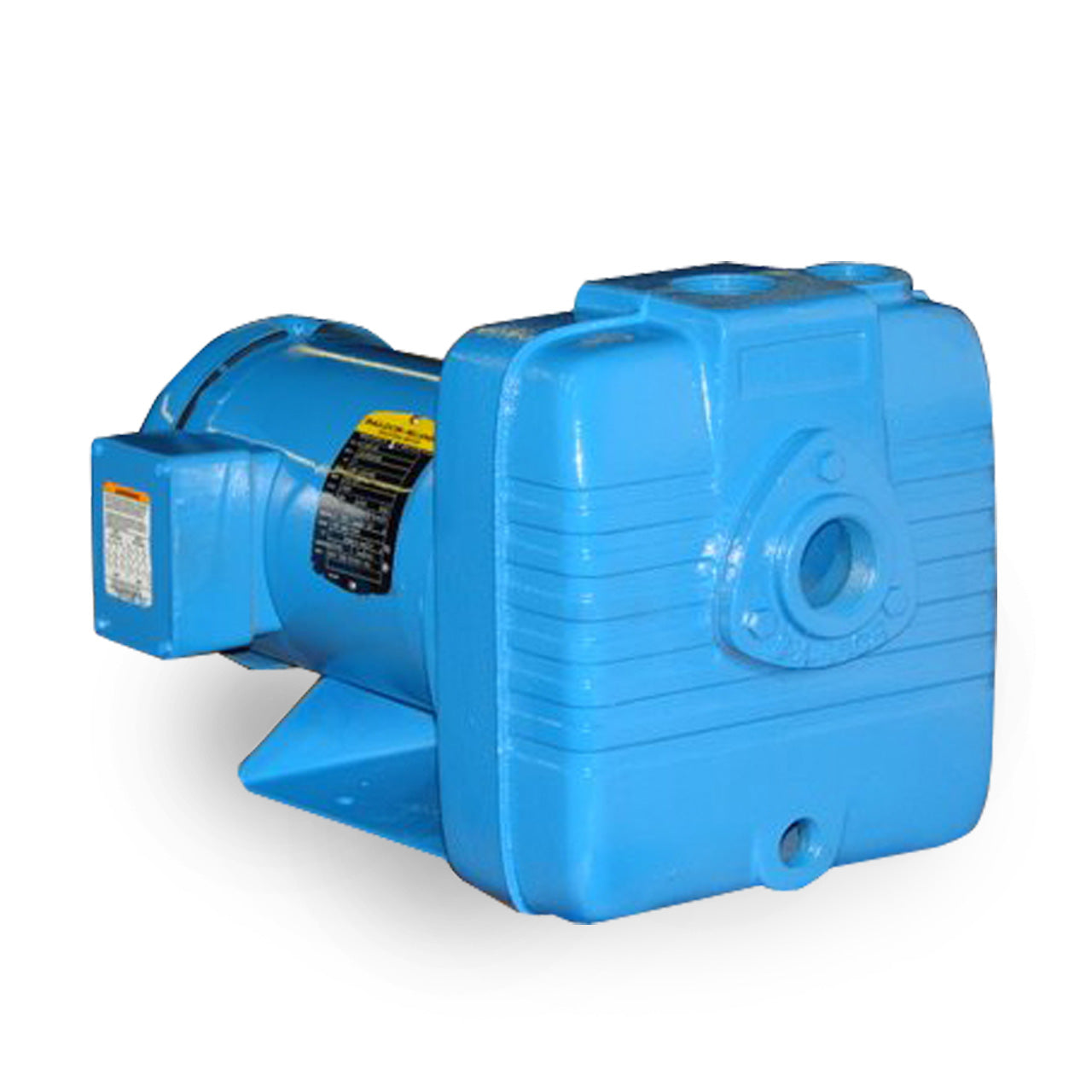

Power-Flo PF15CCE3-T Self-Priming Close Coupled Pump 7.5 HP 208-230/460V 3PH
Power-Flo PF15CCE3-T Self-Priming Close Coupled Pump 7.5 HP 208-230/460V 3PH
SKU : PFPF15CCE3-T
In Stock Quantity:0
:
Brand
:
Regular price
$8,218.05 USD
Shipping calculated at checkout.
Couldn't load pickup availability
Description
Description
Power-Flo Self-Priming Centrifugal Pump Description
Self-Priming centrifugal pumps designed for marine, municipal and industrial applications.
Power-Flo Self-Priming Centrifugal Pump Typical Application
- Designed For Marine, Municipal and Industry
- Commonly Used In Air Conditioning And Refrigeration, High Volume Liquid Transfer, Irrigation, Dewatering And Lawn Sprinkling Applications.
Power-Flo Self-Priming Centrifugal Pump Features
- SUCTION/DISCHARGE: 3"x3" NPT, Female
- LIQUID TEMPERATURE: 160°F Continuous
- INTERMEDIATE: Cast Iron, ASTM, Class 30
- VOLUTE: Cast Iron, ASTM, Class 30
- BODY: Cast Iron, ASTM, Class 30
- BASE: Steel
- SQUARE RINGS: Buna-N
- SHAFT: 1035 Cold Rolled Steel with Bronze Sleeve
- HARDWARE: Steel & Stainless Steel
- IMPELLER: Open, Trash Type, Dynamically Balanced. 3/4" Dia., Spherical Solids, Material: Cast Iron
- SEAL: Design: Mechanical, Self-Lubricated, 1.25" Dia. Material: Carbon/Ni-Resist/Buna-N
- CHECK VALVE: Valve Flap-Neoprene, Weight-Steel
- MOTOR: Open Drip Proof (ODP) - C-Face, Footed, Squirrel Cage Induction. 40°C Ambient, Insulation: Class B or TEFC - C-Face, Squirrel Cage Induction, 40°C Ambient, Insulation: Class B or F
- SINGLE PHASE: Dual-Voltage 230 / THREE PHASE: Dual-Voltage 230/460, Usable at 208
- WARRANTY: 1 Year
Specifications
Specifications
Power-Flo PF15CCE3-T Specifications
- DISCHARGE SIZE: 3.0" NPT
- INLET SIZE: 3.0" NPT
- MAXIMUM CAPACITY: 305 GPM
- MAXIMUM HEAD: 138'
- IMPELLER MATERIAL: Cast Iron, Open, Trash Type Dynamically Balanced
- BODY CONSTRUCTION: Cast Iron, ASTM, Class 30
- HORSEPOWER: 7.5 HP
- AMP DRAW (full load): 18.5-17.4/8.7
- MAXIMUM SOLIDS HANDLING SIZE: 0.75"
- MOTOR TYPE: Totally Enclosed Fan Cooled (TEFC)
- VOLTAGE: 3ø 208-230/460V
- RPM: 3450 RPM
- MAXIMUM LIQUID TEMPERATURE: 160°F Continuous
Power-Flo Self-Priming Centrifugal Pump Performance Curve
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Resources
Resources
Power-Flo Self-Priming Centrifugal Pump Product Resources
Download Power-Flo Self-Priming Centrifugal Pump Catalog Sheet
Download Power-Flo Self-Priming Centrifugal Pump Installation Manual
