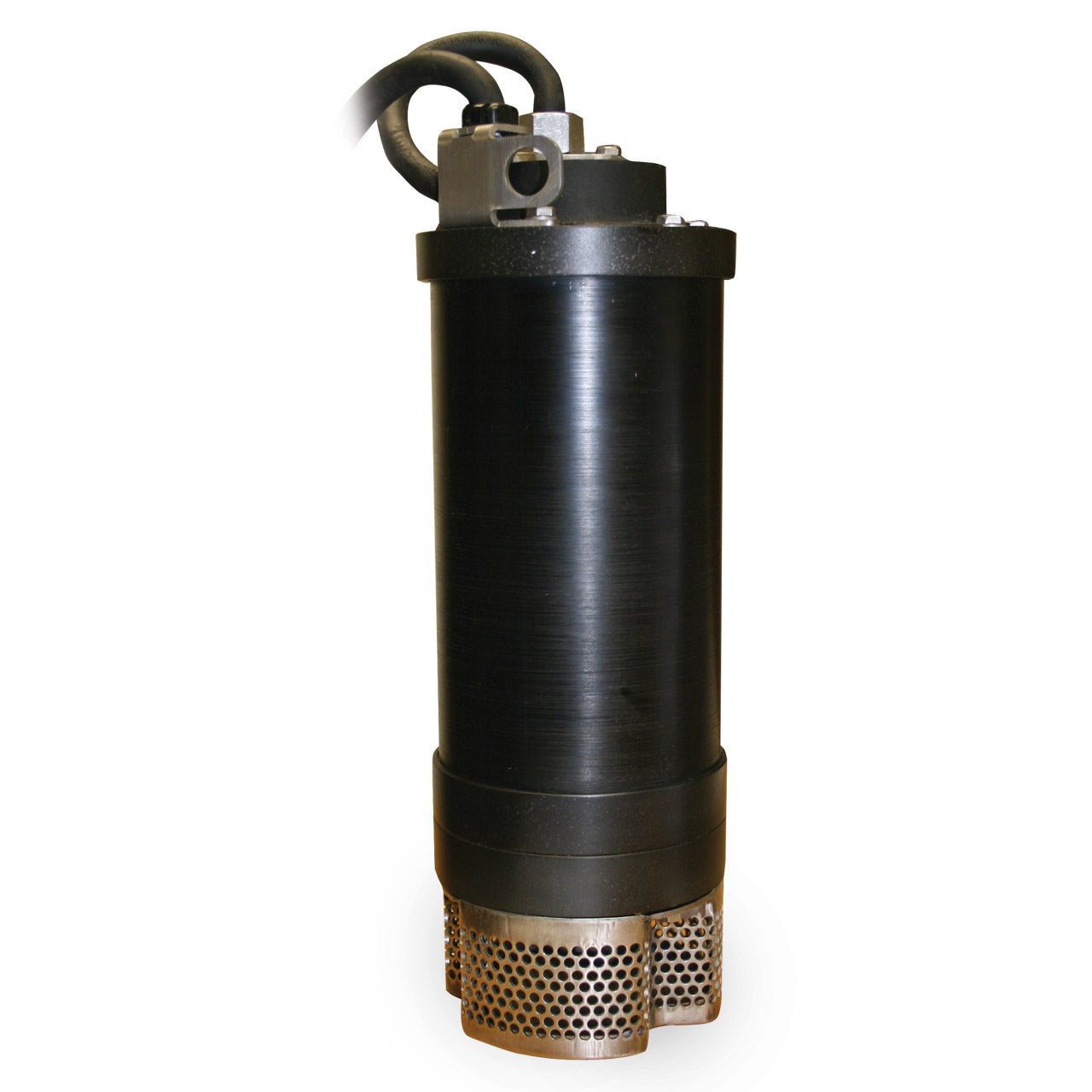

Power-Flo PF01012 Submersible Dewatering Pump 0.75 HP 230V 1PH 25' Cord
Power-Flo PF01012 Submersible Dewatering Pump 0.75 HP 230V 1PH 25' Cord
SKU : PFPF01012
In Stock Quantity:0
:
Brand
:
Regular price
$4,270.62 USD
Shipping calculated at checkout.
Couldn't load pickup availability
Description
Description
Power-Flo Submersible Dewatering Pump Description
Power-Flo pumps are compact, lightweight powerful Portable Electric Submersible Pumps. They are whisper quiet and will perform in any position. Power-Flo pumps can be staged in series for higher head applications.
Power-Flo in-line design assures maximum heat transferred to the pumped liquid. Power-Flo pumps can operate in up to 140°F (60°C) temperature water. Power-Flo design provides the coolest operating motor for maximum life.
Power-Flo Submersible Dewatering Pump Typical Application
- Decorative Water Features
- Dewatering
Power-Flo Submersible Dewatering Pump Features
- DISCHARGE CASE: Aluminum, Hard Anodized
- DIFFUSER: Aluminum, Hard Anodized
- SUCTION CASE: Aluminum, Hard Anodized with Wear Resistant Polyurethane Liner
- FRAME & OUTER CASE: Aluminum, Hard Anodized
- PUMP SHAFT: Stainless Steel
- IMPELLER: Polyurethane
- HARDWARE: Stainless Steel
- O-RINGS: Buna-N
- SEAL: Tandem Mechanical, Oil Lubricated
- INBOARD: Carbon/Ceramic/Buna-N, Hardware-300 Series Stainless
- OUTBOARD: Silicon Carbide/Silicon Carbide/Buna-N Hardware-300 Series Stainless
- STRAINER: Stainless Steel, 3/16" Holes
- UPPER BEARING: Single Row, Shielded, Ball, Pre-Lubricated High-Temperature Grease, Load: Radial
- LOWER BEARING: Single Row, Shielded, Ball, Pre-Lubricated High-Temperature Grease, Load: Radial & Thrust
- CORD ENTRY: 25 ft., 14/4 SOOW, with Strain Relief and Pressure Grommet for Sealing
- MOTOR: Class H Insulation, VPI
- CONTROL: NEMA 3R Rainproof, 1 Phase-w/Start and Run Capacitors, 6Ft Power Cord with 3 Prong Plug. 3 Phase w/Circuit Breaker
- WARRANTY: 1 Year
Specifications
Specifications
Power-Flo PF01012 Specifications
- VOLTAGE: 1ø, 230V, 60Hz
- HORSEPOWER: 0.75 HP
- AMP DRAW (full load): 5.8
- MOTOR TYPE: Class H Insulation, VPI
- RPM: 3450
- MAXIMUM HEAD: 41'
- MAXIMUM CAPACITY: 100 GPM
- DISCHARGE PIPE SIZE: 2.0"
- IMPELLER TYPE: Polyurethane
- IMPELLER DIAMETER: 3.58"
- CORD LENGTH: 25'
- CORD SIZE: 14/4 SOOW, with Strain Relief and Pressure Grommet for Sealing
- BODY CONSTRUCTION: Aluminum
- MAXIMUM LIQUID TEMPERATURE: 140°F (60°C)
- CONTROL BOX: NEMA 3R Rainproof w/Start and Run Capacitors, 6Ft Power Cord with 3 Prong Plug.
Power-Flo Submersible Dewatering Pump Performance Curve
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Resources
Resources
Power-Flo Submersible Dewatering Pump Product Resources
Download Power-Flo Submersible Dewatering Pump Catalog Sheet
Download Power-Flo Submersible Dewatering Pump Installation and Owners Manual
