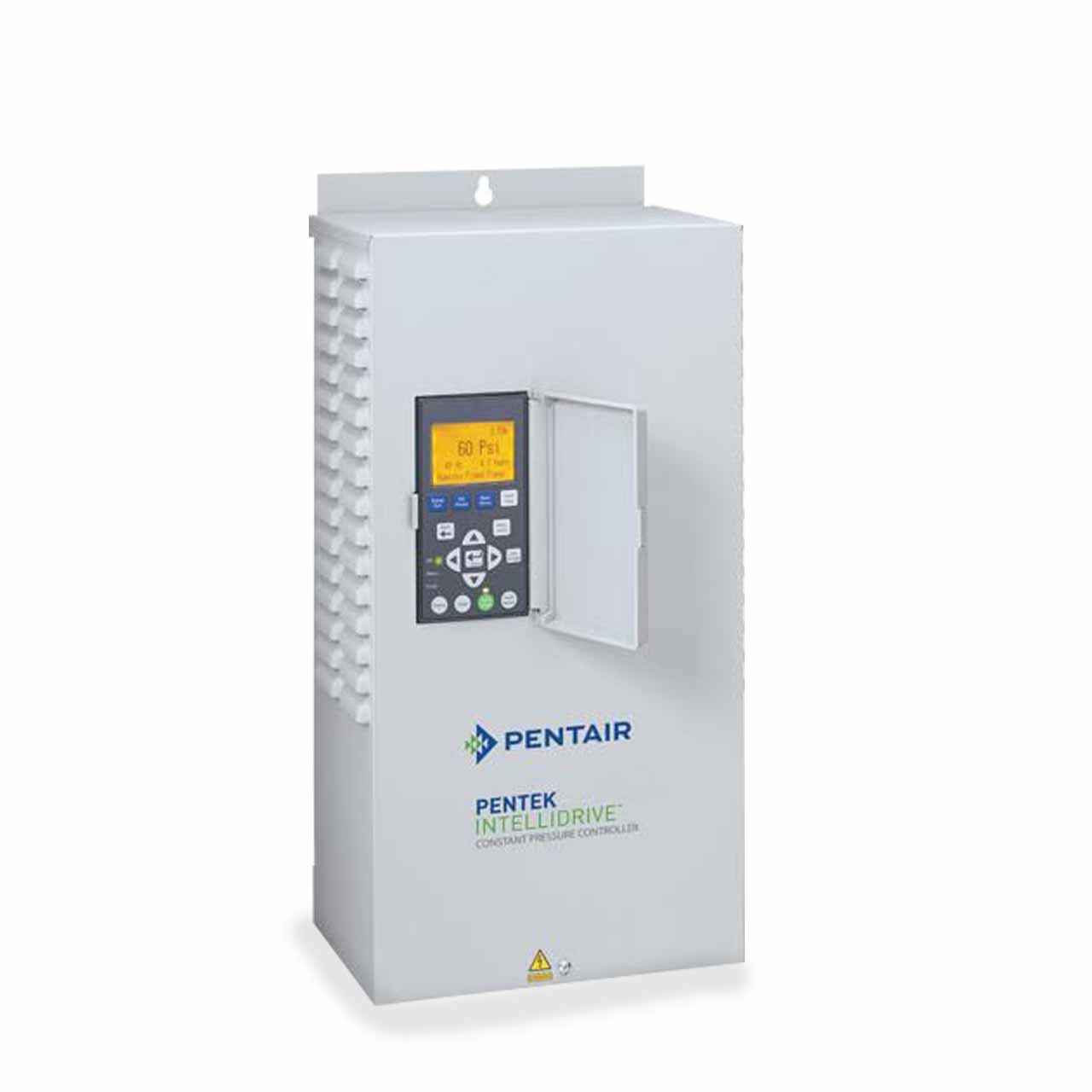

Homeowners with water pressure problems experience weak showers, unclean dishes, dry lawns and more. The Pentek Intellidrive™ Water Pressure Control Center is an “Intelligent Variable Frequency Drive” that directs changes in submersible pump motor speed, responding to fluctuations in household demand. It maintains constant water pressure, regardless of how many people or appliances are using water at the same time.

The Pentek Intellidrive is available with Link2O™ technology that provides you with instant access to your drive and notifications to alert you of any faults. Find out more at link2O.

PENTEK INTELLIDRIVE™ Features

• NOT COMPATIBLE WITH FRANKLIN ELECTRIC 2-WIRE MOTORS
• Fully Programmable Drive – Easily Programmable for a Variety of Applications and Specific Settings.
• 34 Adjustable Programming Parameters – Provides Ultimate Flexibility to Fine-Tune System Operation.
• EMI/RFI Filters – Eliminate Potential Interference.
• Removable/Replaceable Terminal Blocks – For Easy Wiring of Motor and Power Supply.
• 0.5 HP - 1 HP Capabilities
• Single Phase 2-Wire and 3-Wire, along with 3-Phase in Same Unit
• 3-Phase Output (60 Hz/80 Hz)** (** Ongoing 80Hz operation may reduce the life of the pump and motor.)
• Advance Control System Needed for Installation, System Monitoring and Troubleshooting.
• Ground Detection; Detects and Displays When There is a Grounding Problem. Shuts Down System Until Problem is Corrected.
• Removable/Replaceable Terminal Blocks – For Easy Wiring of Motor and Power Supply.
• Best In Class Lightning Protection.

PENTEK INTELLIDRIVE™ Link2O Communication Translator Features

• STATUS: Indicates How Well the Drive is Operating .
• PRESSURE: Shows Actual System Pressure at any Given Time.
• Pump 2 Enabled Indicator.
• FAULT CONDITION: Indicates if the Drive has Stopped Running.
• INTERNET CONNECTION: Indicates if the Drive is Connected to the Internet .
• SIGNAL STRENGTH: Shows Strength of Signal to the Pentek Intellidrive .
• Alternate/Off Switch.

PENTEK INTELLIDRIVE™ Variable Frequency Drive Specifications

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

PENTEK INTELLIDRIVE™ Variable Frequency Drive Resources

Pentek Intellidrive Constant Pressure Systems Brochure

Pentek Intellidrive Catalog Sheet

Pentek Intellidrive Constant Pressure Owner's Manual

Pentek Intellidrive LINK₂O Brochure

Pentek Intellidrive LINK₂O Quick Start Guide
