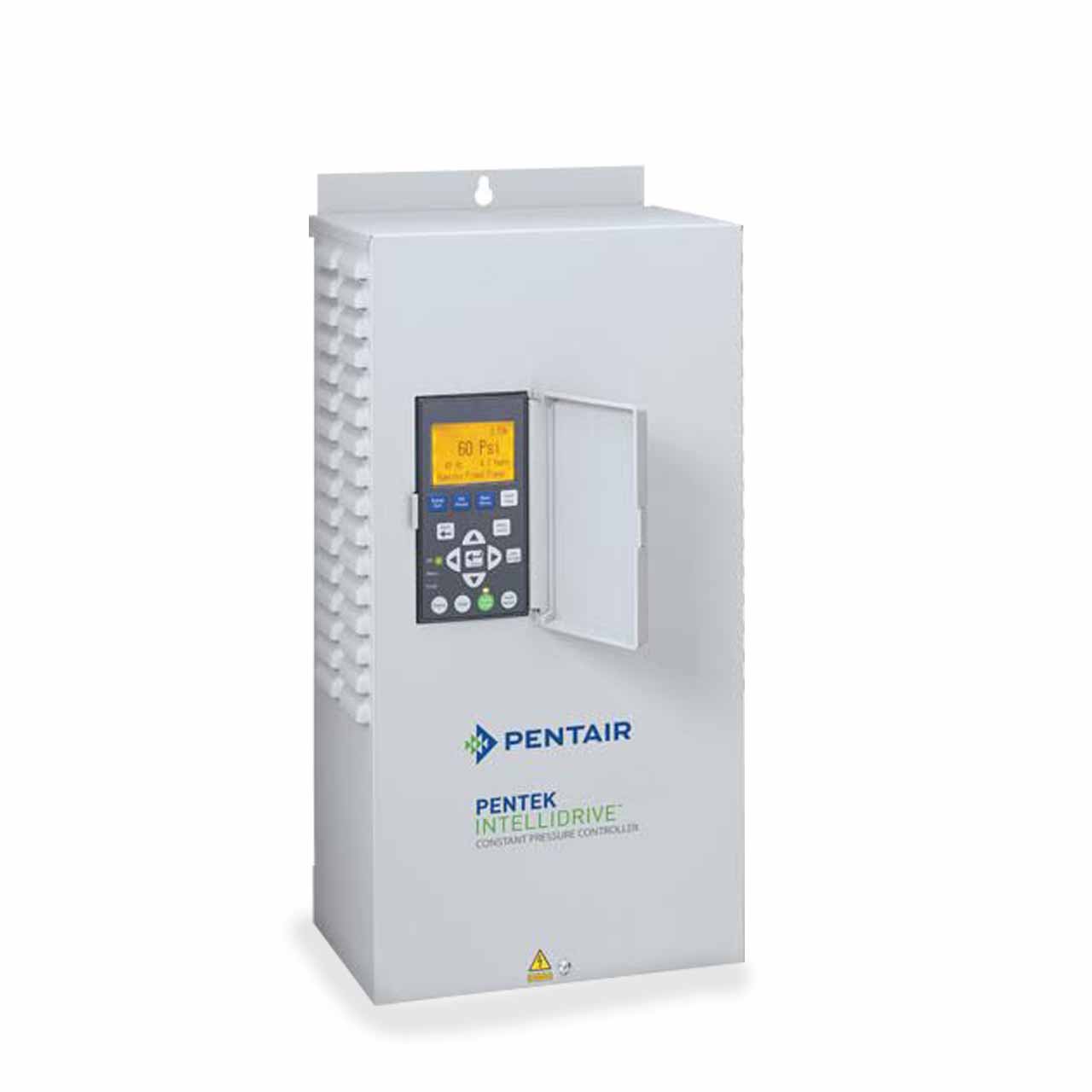

Pentek PID50 Intellidrive Variable Frequency Drive

Pentek PID50 Intellidrive Variable Frequency Drive

Usually ships within 2 weeks

SKU : PTKPID50

In Stock Quantity:0

:
Brand : Pentek
$4,620.00 USD
Shipping calculated at checkout.

Description


PENTEK INTELLIDRIVE™ Variable Frequency Drive

Homeowners with water pressure problems experience weak showers, unclean dishes, dry lawns and more. The Pentek Intellidrive™ Water Pressure Control Center is an “Intelligent Variable Frequency Drive” that directs changes in submersible pump motor speed, responding to fluctuations in household demand. It maintains constant water pressure, regardless of how many people or appliances are using water at the same time.

PENTEK INTELLIDRIVE™ Variable Frequency Drive Features

  • NOT COMPATIBLE WITH FRANKLIN ELECTRIC 2-WIRE MOTORS
  • Fully Programmable Drive – Easily Programmable for a Variety of Applications and Specific Settings.
  • 34 Adjustable Programming Parameters – Provides Ultimate Flexibility to Fine-Tune System Operation.
  • EMI/RFI Filters – Eliminate Potential Interference.
  • Removable/Replaceable Terminal Blocks – For Easy Wiring of Motor and Power Supply.
  • 0.5 HP - 5 HP Capabilities
  • Single Phase 2-Wire and 3-Wire, along with 3-Phase in Same Unit
  • 3-Phase Output (60 Hz/80 Hz)** (** Ongoing 80Hz operation may reduce the life of the pump and motor.)
  • Advance Control System Needed for Installation, System Monitoring and Troubleshooting.
  • Ground Detection; Detects and Displays When There is a Grounding Problem. Shuts Down System Until Problem is Corrected.
  • Removable/Replaceable Terminal Blocks – For Easy Wiring of Motor and Power Supply.
  • Best In Class Lightning Protection.

Specifications

PENTEK INTELLIDRIVE™ Variable Frequency Drive Specifications

NOT COMPATIBLE WITH FRANKLIN ELECTRIC 2-WIRE MOTORS

ENCLOSURE RATING: NEMA 3R

VOLTAGE: 1ø or 3ø, 190-265V

OUTPUT AMPS: 11/13.5/18

HORSEPOWER: 0.5HP - 1.5HP/0.5HP -2.0HP/0.5HP - 5.0HP

ENCLOSURE DIMENSIONS: Width: 9.25" | Height: 17.5" | Depth: 6.0"

CARTON DIMENSIONS: Width: 10.4" | Height: 22.3" | Depth: 9.4"

WEIGHT: 22 Pounds

AMBIENT TEMPERATURE RANGE: -20°C (-4°F) to 50°C (122°F)

AMBIENT HUMIDITY RANGE: 95% Non-Condensing


WARNING Cancer and Reproductive Harm - www.P65Warnings.ca.gov WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Resources

PENTEK INTELLIDRIVE™ Variable Frequency Drive Resources


PENTEK INTELLIDRIVE™ Constant Pressure Systems Brochure

PENTEK INTELLIDRIVE™ Constant Pressure System Data Sheet

PENTEK INTELLIDRIVE™ Variable Frequency Drive Sales Sheet

PENTEK INTELLIDRIVE™ Constant Pressure Owner's Manual
