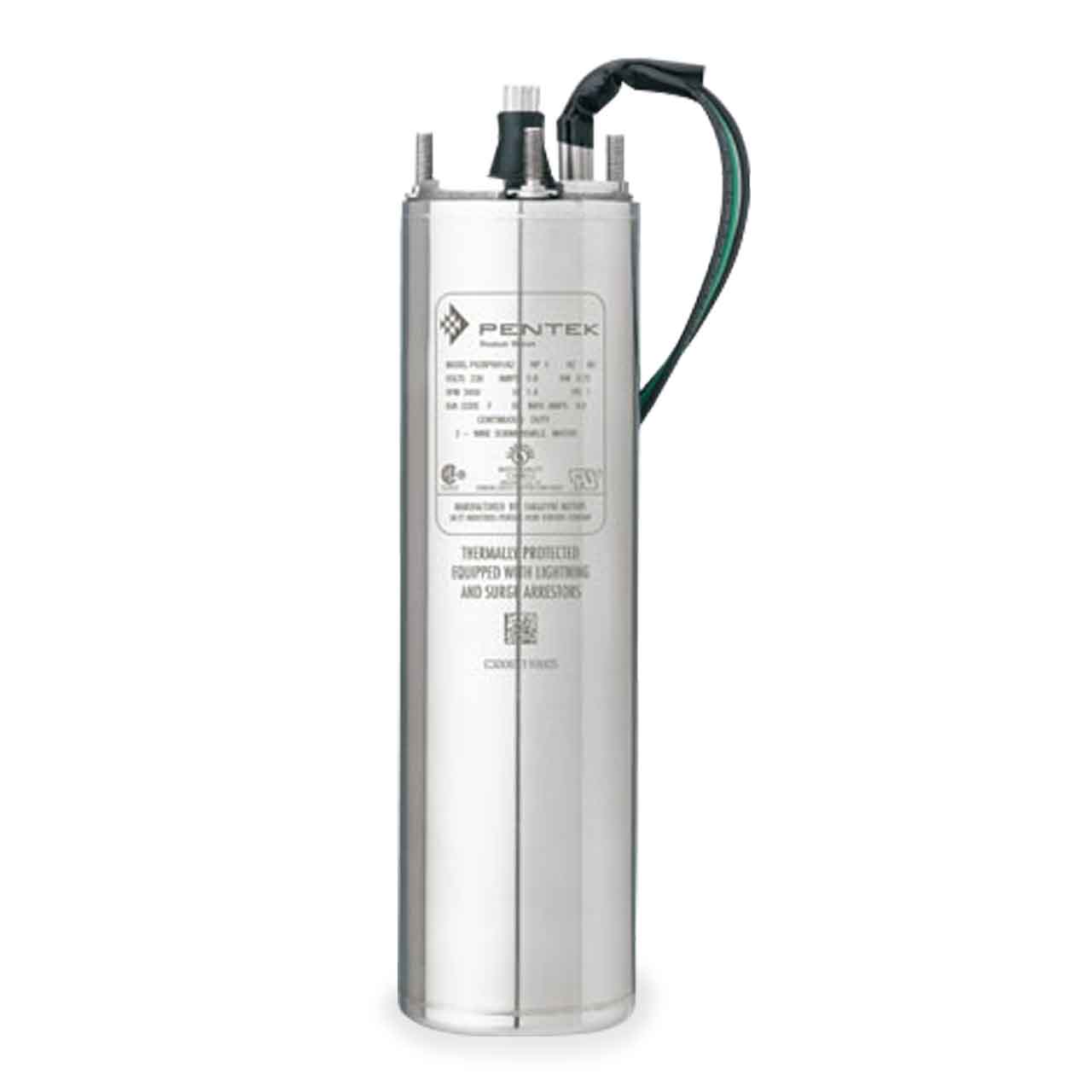

Pentek XE Series 4" Submersible Motor Description

The Pentek XE Series 4" Submersible High-Thrust Motors are built with the latest design, manufacturing and testing technology. They feature laser-welded 304L stainless steel construction, higher thrust capacities and higher efficiencies. The Pentek XE Series submersible motors incorporate "encapsulated, epoxy stator design," and professional-grade Class F insulation provides longer life in harsh environments. Each motor is 100% factory pressure and run tested to support our quality standards.

Pentek XE Series 4" Submersible Motor Key Features

• Oversized Kingsbury-Type Thrust Bearing Design-Large High-Performance Bearings are Standard on all HPs A lowing for Higher Thrust Loads, Providing Many Years of Trouble-Free Service under Severe-Duty Operation.
• 3-Wire Motors Operate with Pentek SMC-CR, VIP Pro and Pentek Intellidrive™ Products
• All Stainless Steel Exterior
• Professional-Grade Class F-Compliant Motor Insulation-Allows for Longer Service Life.
• 100% Factory Pressure and Run Tested
• All 115V and 230V Motors are Equipped with Surge Arrestors to Provide Maximum Protection against Lightning, Transient and Voltage Surge Conditions.

Pentek XE Series 4" Submersible Motor Specifications

• BODY CONSTRUCTION: 304L Stainless Steel
• HORSE POWER: 10 HP
• CABLE LENGTH: 100 ft.
• VOLTAGE: 3ø, 460V
• RPM: 3450
• SERVICE FACTOR: 1.15
• DOWNWARD THRUST (lbs): 1500 lbs
• MAX AMBIENT TEMPERATURE: 86°F/30°C
• FULL LOAD AMPS: 15.6
• MAX OPERATING DEPTH: 985 ft
• LEAD: 3-Wire, CSCR
• CONTROL BOX REQUIRED

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Pentek 4" Submersible Motor Product Resources

Download Pentek XE Series Brochure

Download Pentek XE Series Cable Selection

Download Pentek XE Series Manual
