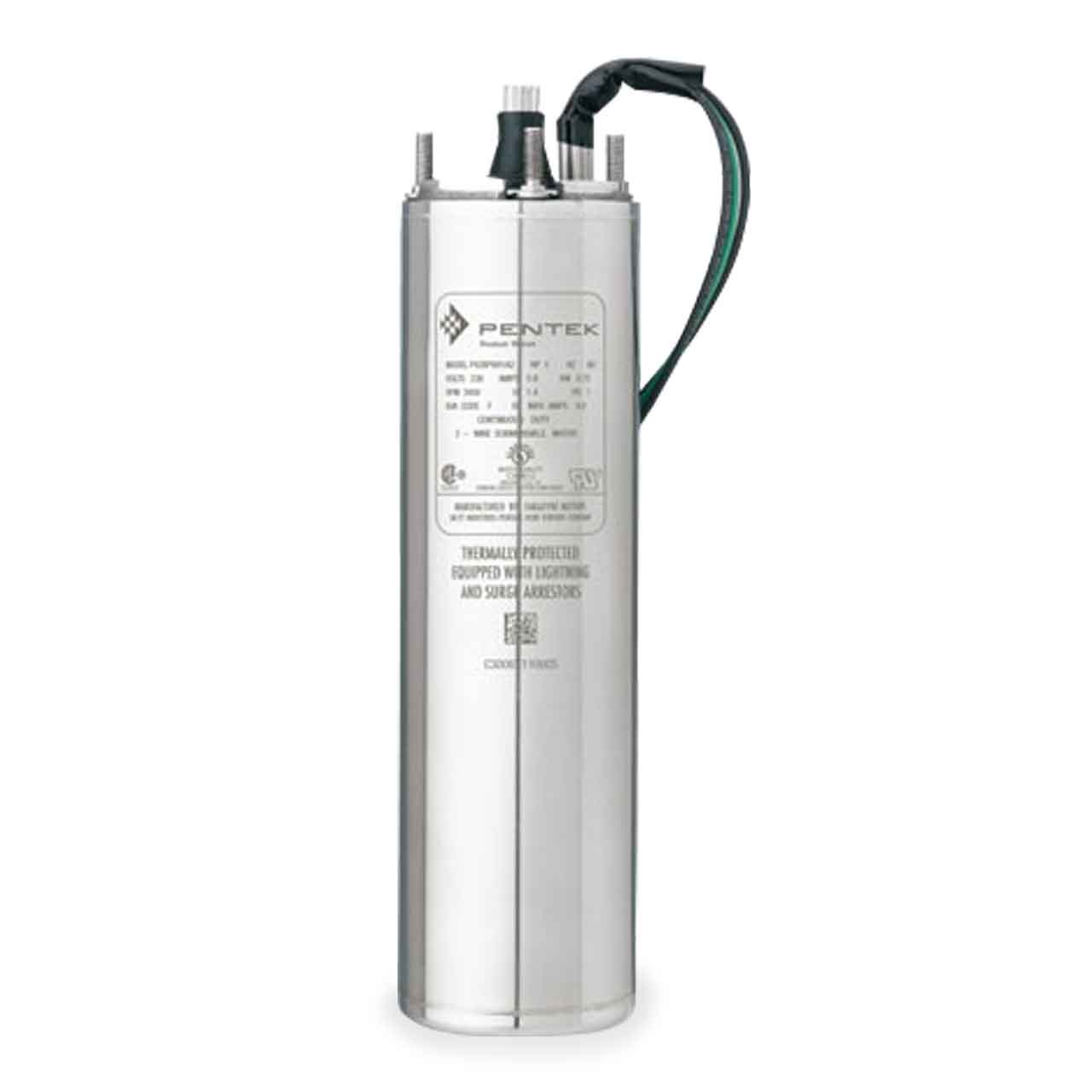

Pentek P42B0005A2-C XE Series 4" Submersible Motor 0.5 HP 230V 2-Wire 1PH
Pentek P42B0005A2-C XE Series 4" Submersible Motor 0.5 HP 230V 2-Wire 1PH
SKU : PTKP42B0005A201C
In Stock Quantity:0
:
Brand
:
Regular price
$729.40 USD
Shipping calculated at checkout.
Couldn't load pickup availability
Description
Description
Pentek XE Series 4" Submersible Motor Description
The Pentek XE Series 4" Submersible High-Thrust Motors are built with the latest design, manufacturing and testing technology. They feature laser-welded 304L stainless steel construction, higher thrust capacities and higher efficiencies. The Pentek XE Series submersible motors incorporate "encapsulated, epoxy stator design," and professional-grade Class F insulation provides longer life in harsh environments. Each motor is 100% factory pressure and run tested to support our quality standards.
Pentek XE Series 4" Submersible Motor Key Features
- Oversized Kingsbury-Type Thrust Bearing Design-Large High-Performance Bearings are Standard on all HPs Allowing for Higher Thrust Loads, Providing Many Years of Trouble-Free Service under Severe-Duty Operation.
- 2-Wire Permanent Split Capacitor Design Insures Quiet Operation and Improved Intellidrive™ Products.
- All Stainless Steel Exterior
- Professional-Grade Class F-Compliant Motor Insulation-Allows for Longer Service Life.
- Automatic Thermal Protection
- All 115V and 230V Motors are Equipped with Surge Arrestors to Provide Maximum Protection against Lightning, Transient and Voltage Surge Conditions.
Specifications
Specifications
Pentek XE Series 4" Submersible Motor Specifications
- BODY CONSTRUCTION: 304L Stainless Steel
- HORSE POWER: 0.5 HP
- CABLE LENGTH: 48 ft.
- VOLTAGE: 1ø, 230V
- RPM: 3450
- SERVICE FACTOR: 1.6
- DOWNWARD THRUST (lbs): 700 lbs
- MAX AMBIENT TEMPERATURE: 86°F/30°C
- FULL LOAD AMPS: 3.7
- MAX OPERATING DEPTH: 985 ft
- LEAD: 2-Wire, PSC
- CONTROL BOX REQUIRED
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Resources
Resources
Pentek 4" Submersible Motor Product Resources
Download Pentek XE Series Brochure
