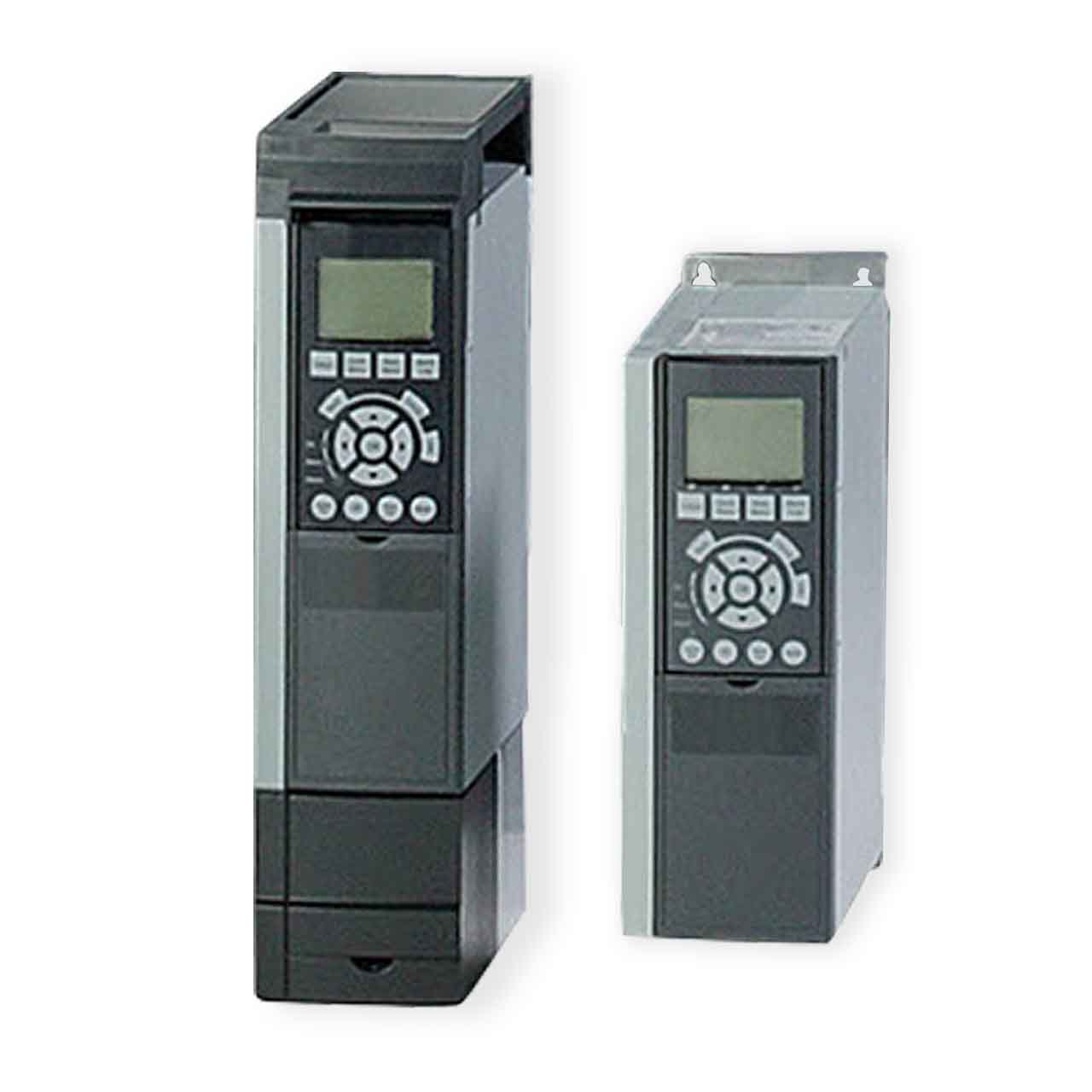

Pentek Intellidrive XL VFD Nema 1 Enclosure 575V 1.7-131A 3PH
Pentek Intellidrive XL VFD Nema 1 Enclosure 575V 1.7-131A 3PH
SKU : PTKPID15FD
In Stock Quantity:0
:
:
Regular price
$3,606.75 USD
Shipping calculated at checkout.
Couldn't load pickup availability
Description
Description
PENTEK INTELLIDRIVE™XL Variable Frequency Drive
Pentek Intellidrive™ XL, the latest addition to our line of our variable frequency drives, is designed for large horsepower pumping applications. Selection is easy. Setup is simple. And you have powerful opportunities to customize as needs arise. All backed by expert, dedicated tech support, available to quickly and efficiently resolve any issues.
PENTEK INTELLIDRIVE™XL Variable Frequency Drive Models:
- PID001015FD: VFD, NEMA 1, 1HP, 525-600V, 3 PH, FD
- PID002015FD: VFD, NEMA 1, 2HP, 525-600V, 3 PH, FD
- PID003015FD: VFD, NEMA 1, 3HP, 525-600V, 3 PH, FD
- PID005015FD: VFD, NEMA 1, 5HP, 525-600V, 3 PH, FD
- PID007515FD: VFD, NEMA 1, 7.5HP, 525-600V, 3 PH, FD
- PID010015FD: VFD, NEMA 1, 10HP, 525-600V, 3 PH, FD
- PID015015FD: VFD, NEMA 1, 15HP, 525-600V, 3 PH, FD
- PID020015FD: VFD, NEMA 1, 20HP, 525-600V, 3 PH, FD
- PID025015FD: VFD, NEMA 1, 25HP, 525-600V, 3 PH, FD
- PID030015FD: VFD, NEMA 1, 30HP, 525-600V, 3 PH, FD
- PID040015FD: VFD, NEMA 1, 40HP, 525-600V, 3 PH, FD
- PID050015FD: VFD, NEMA 1, 50HP, 525-600V, 3 PH, FD
- PID060015FD: VFD, NEMA 1, 60HP, 525-600V, 3 PH, FD
- PID075015FD: VFD, NEMA 1, 75HP, 525-600V, 3 PH, FD
- PID100015FD: VFD, NEMA 1, 100HP, 525-600V, 3 PH, FD
- PID125015FD: VFD, NEMA 1, 125HP, 525-600V, 3 PH, FD
PENTEK INTELLIDRIVE™ XL Variable Frequency Drive Features
- Select Drives by S.F.(Service Factor) Amps of Pump Motor
- Selection is Easy - Choose your Phase, Voltage and Horsepower
- Simple Setup - Enter Pump and Motor Settings
- More Ways to Customize - There are Plenty of Ways to Customize when you Dig into the Programming and the Applications Available
- Dedicated Tech Support
- Single Phase; 200V-240V - 7.5HP to 30HP and Three Phase; 200V-600V - 1HP to 150HP Available
- Enclosures: NEMA 1, NEMA 3R, NEMA 4X and IP20 Open Available
Specifications
Specifications
PENTEK INTELLIDRIVE™ XL Variable Frequency Drive Specifications
ENCLOSURE RATING: NEMA 1; Fused Disconnect
VOLTAGE: 3ø, 575V
OUTPUT AMPS: 1.7 to 131
HORSEPOWER: 1HP to 125HP
MORE STANDARD I/O: Digital Inputs - 6; Analog Inputs - 5; Pulse Inputs - 2; Digital Output - 2; Analog Output - 4; Relay Output - 2
COMMUNICATIONS: Includes Modbus RTU. Also Available: PROFIBUS, Device Net, PROFINET, Ethernet/IP, Modbus TCP
WEIGHT: 19 Pounds to 143 Pounds
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Resources
Resources
PENTEK INTELLIDRIVE™ XL Variable Frequency Drive Resources
Pentek Intellidrive XL Variable Frequency Drive Brochure
Pentek Intellidrive XL Variable Frequency Drive Selection Guide
Pentek Intellidrive XL Variable Frequency Drive QuickStart Guide
