SOLD IN CASE QUANTITY (6 in a case)

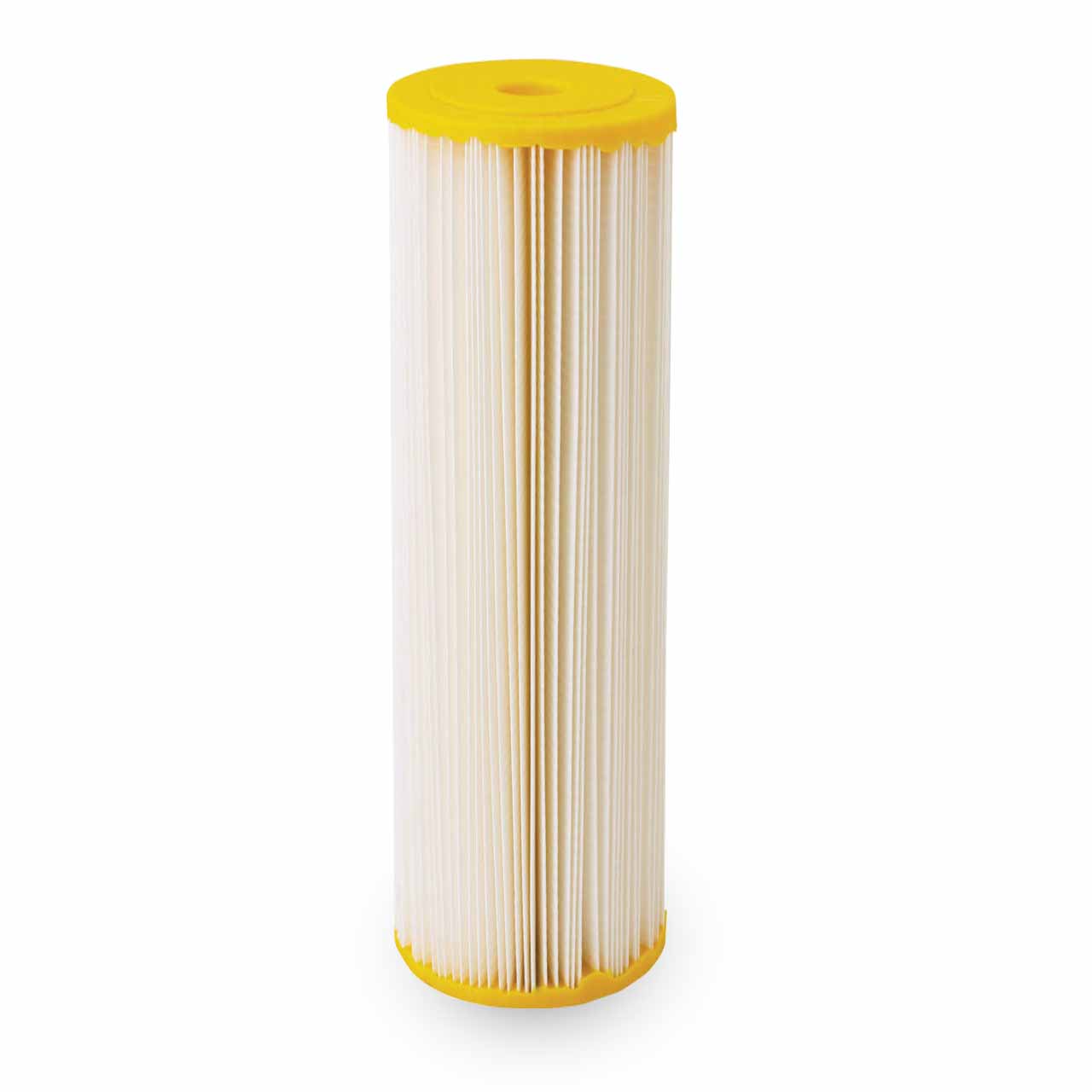

ECP Series cartridges are manufactured from a special formulation of resin-impregnated cellulose and polyester fibers.

This unique blend of materials provides a higher wet strength than regular cellulose cartridges. The 50 micron sediment filter also provides high flow rates and dirt holding capacity, while maintaining extremely low pressure drop.

The media is pleated around a polypropylene core for added strength and the ends are immersed in a thermo-setting vinyl plastisol. Embedding and sealing each end of the pleat block in this fashion fuses the components together forming a unified endcap and gasket.

ECP Series cartridge endcaps feature a color-coding system for easy identification of micron ratings: Tan (1-micron), White (5-micron), Blue (20-micron), Yellow (50-micron).

This 50 micron sediment filter contains more media surface area than most competitive cartridges. The standard 10-inch ECP cartridge contains six square feet of media, where most cartridges contain only 4.5 square feet. Other available ECP cartridge sizes contain the following amount of media:

• Standard 10-inch Cartridge – 6 ft²
• Standard 20-inch Cartridge – 12 ft²
• 10-inch BB Cartridge – 18 ft²
• 20-inch BB Cartridge – 36 ft²

Pentek ECP Filter Features

• Replaces CP and HFCP Series Cartridges
• Special Formulation of Resin-Impregnated Cellulose and Polyester Fibers
• Provides Higher Wet Strength than Regular Cellulose Cartridges
• Minimal Unloading and Media Migration

Pentek ECP Filter Specifications

• Filter Media - Cellulose Polyster
• Standard Endcaps - Vinyl Plastisol
• Big Blue Endcaps - Polypropylene
• Core - Polypropylene
• Temperature Rating - 40-125°F (4.4-51.7°C)

Pentek ECP Filter Technical Data

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Pentek ECP Cartridge Product Resources

Download Pentek ECP Cartridge Product Profile
