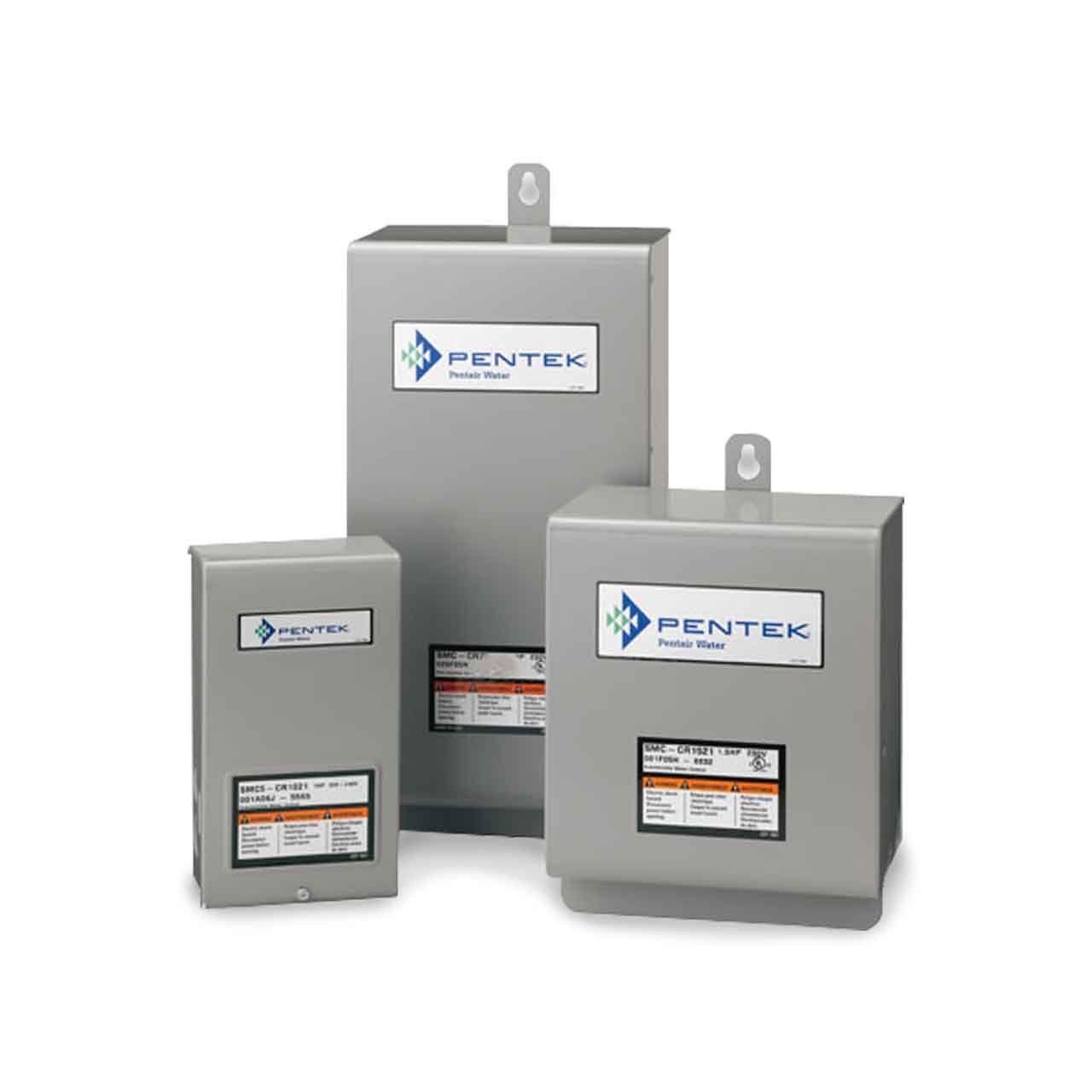

Pentair CSIR NEMA 3R Pentek Submersible Motor Controls

Pentek offers a full range of 1/2 to 15 HP Models that are interchangeable with existing motor controls for Capacitor Start / Induction Run (CSIR) and Capacitor Start / Capacitor Run (CSCR) Applications. Pentek is the professional choice in harsh and high temperature installations

Pentair CSIR NEMA 3R Pentek Submersible Motor Controls Applications

Water Systems... for Residential, Multiple Housing, Farm and Commercial Installations, where a Submersible 3-Wire Motor is used.

Pentair CSIR NEMA 3R Pentek Submersible Motor Controls Features

• Enclosure:
  • Rugged NEMA 3R Enclosure - Suitable for Indoor/Outdoor Use
  • Multiple-Size Electrical Knockouts
  • Rated for 50°C (122°F)
• Internals
  • High-Load Voltage Relay
  • Heavy-Duty Contacts
  • External Access to Overload Reset - 1.5HP - 5HP
  • Heavy-Duty Terminal Connectors Suitable for up to #4 AWG Wire
  • Industry Standard Wiring Connections - Easy-to-Read Wiring Diagrams
• Agency Approvals
  • CSA CUS Certified

Pentair SMC-IR0521 NEMA 3R Pentek Submersible Motor Controls Specifications

• ENCLOSURE: Nema 3R
• HORSEPOWER: 0.5 HP
• VOLTS/PHASE: 230V/1ø
• Capacitor Start/Induction Run

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Pentair Submersible Motor Controls Product Resources

Download Pentair SMC-IR0521 Series Specifications
