DISCONTINUED

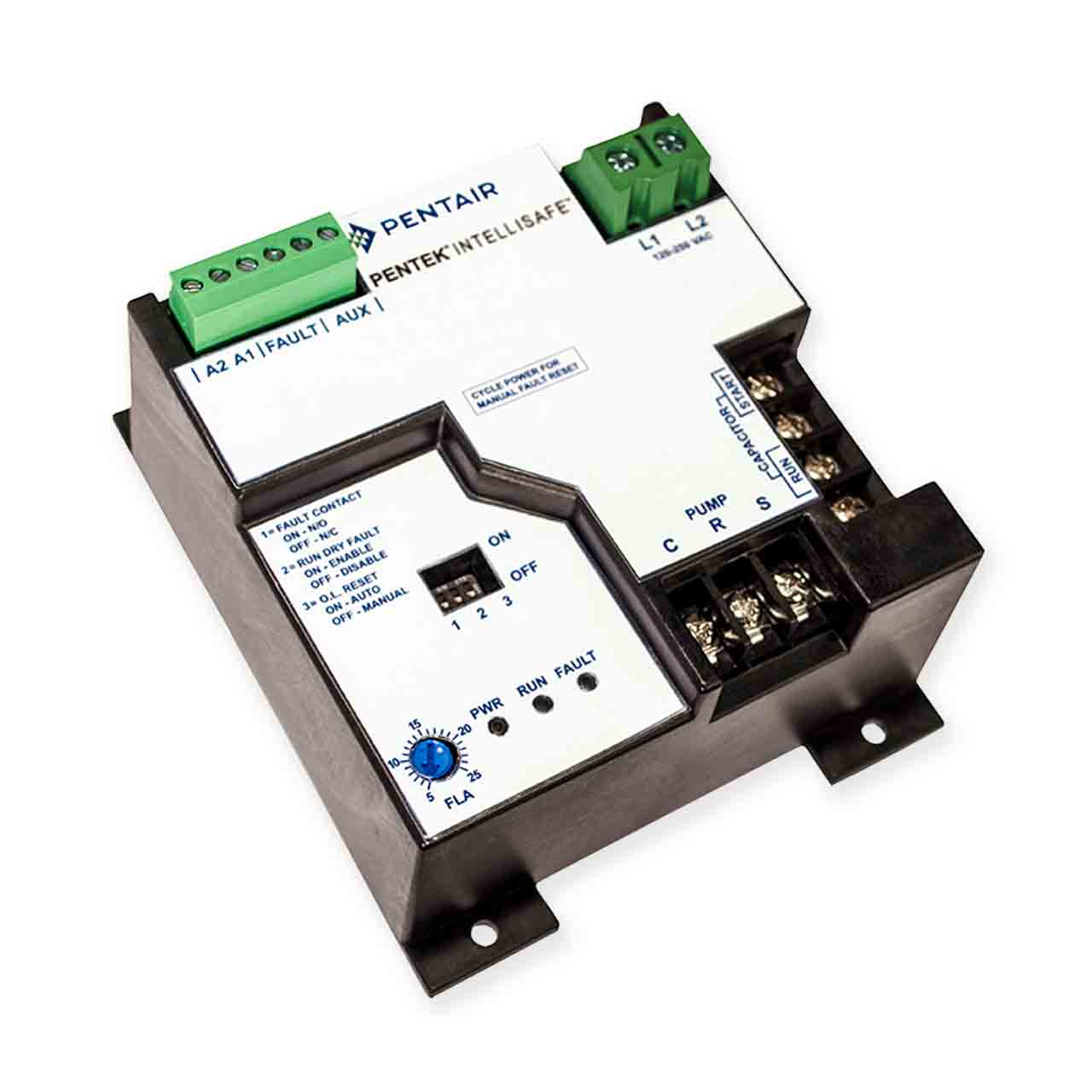

Pentair Pentek Intellisafe Power Module

Pentair introduces the all new Pentek^® Intellisafe™ power module offering advanced torque control and system protection for single phase capacitor start grinder pumps. The Pentek Intellisafe combines the features of a contactor, overload relay and potential relay into a single universal design compatible with all brands of single phase capacitor start grinders between 5 and 25 FLA.

Pentair Pentek Intellisafe Power Module Key Features

• Reduces Clogging Engages Start Windings Faster than a Potential Relay to Maintain RPM’s and Higher Water Velocities to Reduce Clogging.
• Motor Protection
• Prevents Operating in Low Voltage Conditions.
• Monitors Start Capacitor Usage and Keeps System from Continually Trying to Start in a Locked Rotor Situation.
• Prevents Startup if Pump is Wired to Unit Incorrectly.
• Panel Protection
• Monitors Start Capacitor Usage and Protects Capacitor from Failing if a No Start Pump Situation Exists.
• Zero Cross Technology Reduces Arcing Time to Extend Contact Life.
• Simple
• Combines 3 Devices (and hundreds of configurations) into a Single Universal Module
• Simple Layout, Simple Connections
• Reduced Inventory
• Faster Installation and Service Time
• UL 508A

Pentair Pentek Intellisafe Power Module Specifications

• INPUT VOLTAGE: 115-240 VAC, 1PH, 60Hz
• FULL LOAD AMP: 5A-25A
• HORSEPOWER: 3.0 HP
• SHORT CIRCUIT RATING: 5kA
• OVERLOAD TRIP CLASS: Class 10
• POWER CONSUMPTION: 4.5W Max.
• AUX/FAULT CONTACT RATING: 3A, 120 VAC Max. Each
• A1, A2 (Start/Stop Input): 100-250 VAC
• OPERATING TEMPERATURE: –40°F to 104°F
