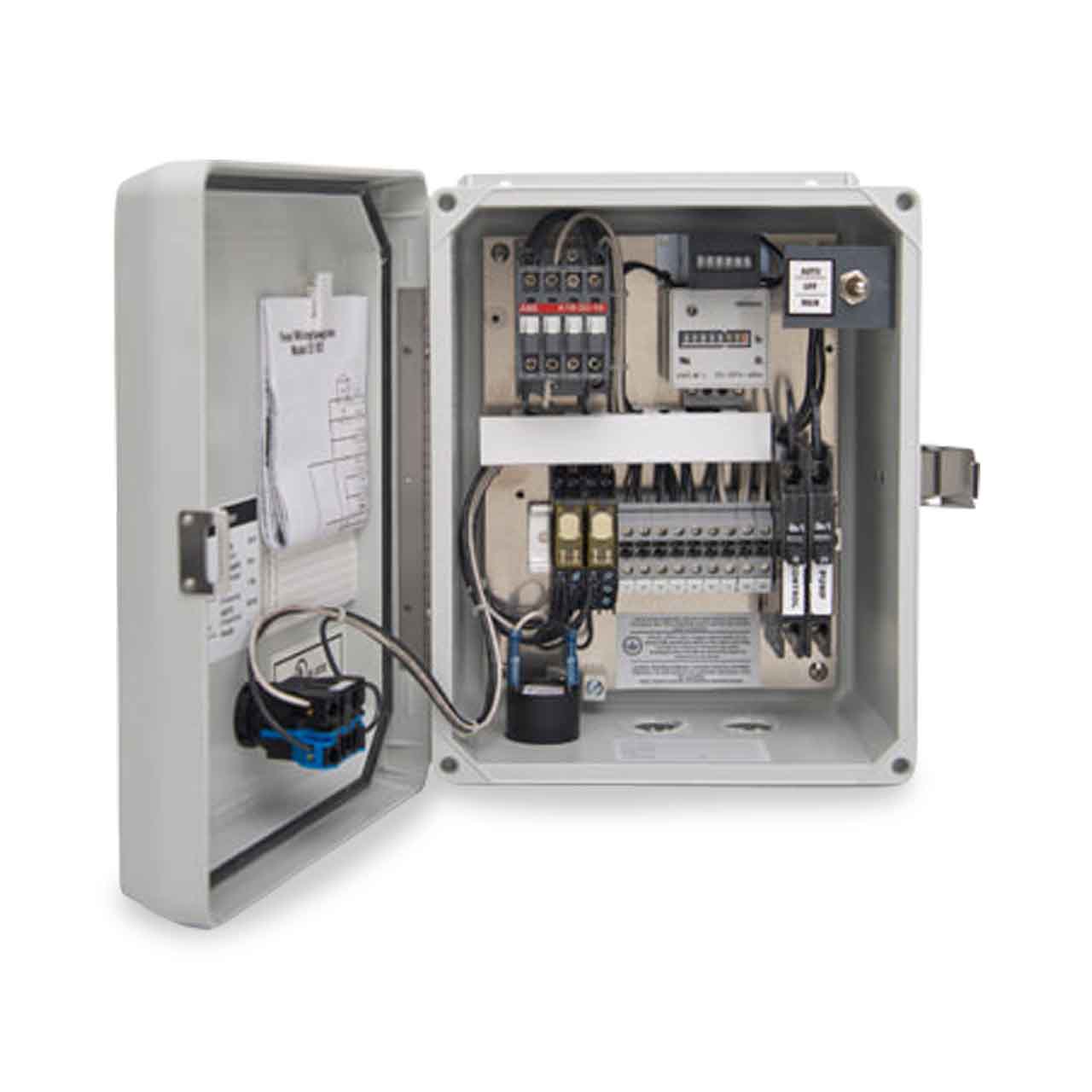

Orenco S2RO Simplex Control Panel 240V 1PH RO
Orenco S2RO Simplex Control Panel 240V 1PH RO
SKU : ONCS2RO
In Stock Quantity:8
:
Brand
:
Regular price
$1,002.44 USD
Shipping calculated at checkout.
Couldn't load pickup availability
Description
Description
Simplex control panels can be used for pressure sewer (STEP) systems, onsite treatment systems, and pump control into conventional gravity or pressurized drainfields. “S” series pump control panels are a popular choice for a simplex pump and alarm system. These panels include a motor contactor, which increases system life by reducing the load requirements on the float switches. “S" Series panels also allow options such as a programmable timer or use of larger horsepower pumps.
Orenco S Series Simplex Control Panel Typical Application
- Residential and Light Commercial Sump, Septic Tank Effluent, and Raw Sewage Pumping Applications.
- Additional Features:
- RO - Redundant Off/Low Level Alarm
Specifications
Specifications
Orenco S Series Simplex Control Panel Specifications
- Panel Ratings: 240 VAC, 14 FLA, 3 HP
- Hand-Off-Auto Switch
- 10A Control Breaker (Requires 120 VAC control power)
- 20A 2 Pole Pump Breaker
- See Related Products Tab for Typical Float Switch Configurations
- Audible Alarm: 95 dB at 24", Warble Tone Sound
- Visual Alarm: 7/8" Diameter Red Lens, "Push-To-Silence", LED Light
- Enclosure: 11.5"H x 9.5"W x 5.4"D, NEMA 4X, UV-Resistant Fiberglass, Stainless Steel Latch and Hinge
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Resources
Resources
Orenco S Series Simplex Control Panel Product Resources
Brochure
Orenco S Series Simplex Control Panel Product Sheet: APS-CP-KIT-2
Orenco S Series Simplex Control Panel Technical Data Sheet: NTD-CP-S-1
Wiring Diagram
Orenco S2RO Series Simplex Control Panel Wiring Diagram: EDW-WD-S-6
Float Arrangement Diagram
Orenco S RO Series Simplex Control Panel Float Arrangement Diagram: EDW-FA-S-2
Splice Box Wiring Diagrams
Orenco S RO Series Simplex Control Panel Splice Box Wiring Diagram: EDW-SB-S-11
Orenco S RO Series Simplex Control Panel Splice Box Wiring Diagram: EDW-SB-S-12
