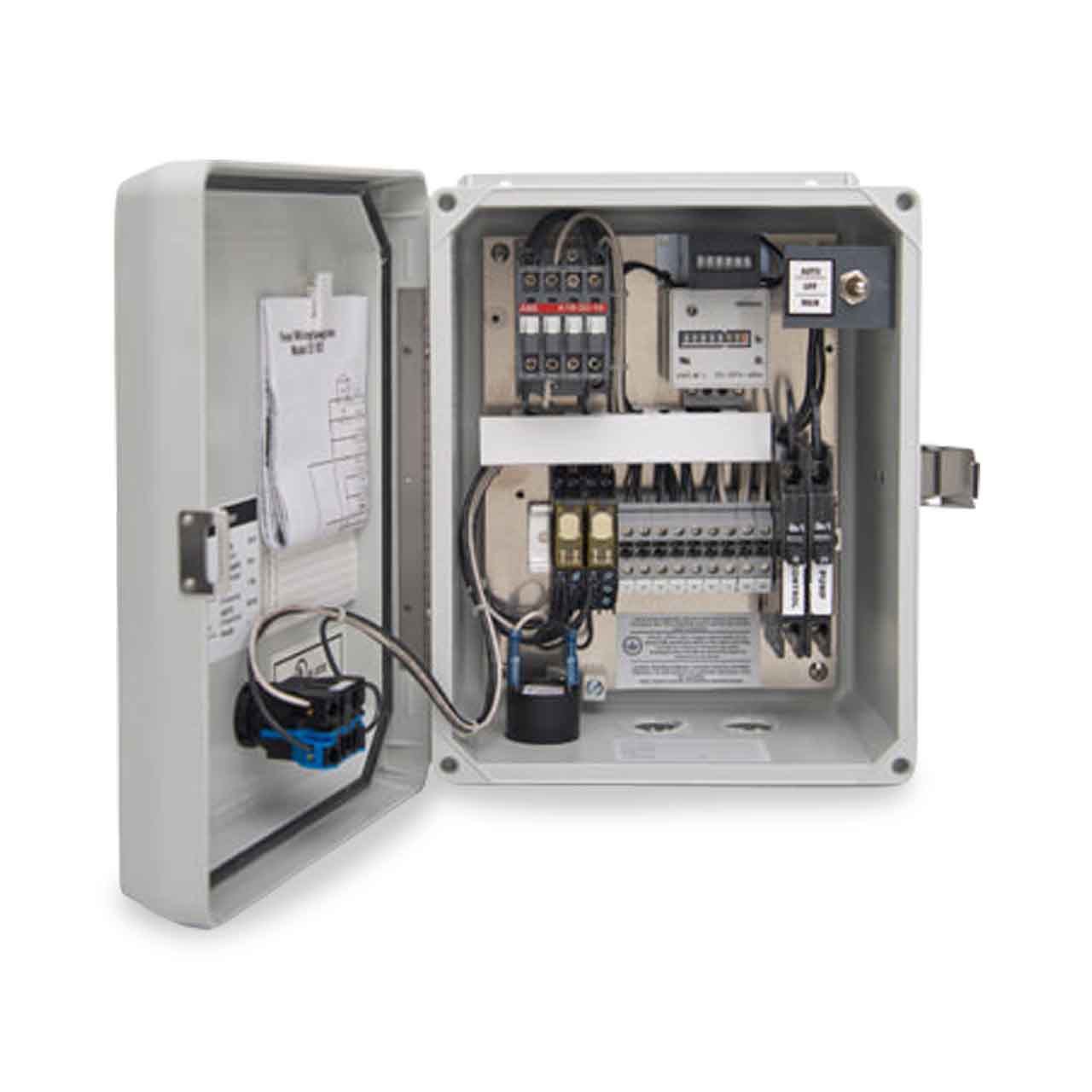

Simplex control panels can be used for pressure sewer (STEP) systems, onsite treatment systems, and pump control into conventional gravity or pressurized drainfields. “S” series pump control panels are a popular choice for a simplex pump and alarm system. These panels include a motor contactor, which increases system life by reducing the load requirements on the float switches. “S” Series panels also allow options such as a programmable timer or use of larger horsepower pumps.

Orenco S Series Simplex Control Panel Typical Application

• Residential and Light Commercial Sump, Septic Tank Effluent, and Raw Sewage Pumping Applications.

• Additional Features:
• RO - Redundant Off/Low Level Alarm

Orenco S Series Simplex Control Panel Specifications

• Panel Ratings: 120 VAC, 14 FLA, 3/4 HP
• Hand-Off-Auto Switch
• 10A Control Breaker (Requires 120 VAC control power)
• 20A 1 Pole Pump Breaker
• See Related Products Tab for Typical Float Switch Configurations
• Audible Alarm: 95 dB at 24", Warble Tone Sound
• Visual Alarm: 7/8" Diameter Red Lens, "Push-To-Silence", LED Light
• Enclosure: 11.5"H x 9.5"W x 5.4"D, NEMA 4X, UV-Resistant Fiberglass, Stainless Steel Latch and Hinge

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Orenco S Series Simplex Control Panel Product Resources

Brochure
Orenco S Series Simplex Control Panel Product Sheet: APS-CP-KIT-2

Orenco S Series Simplex Control Panel Technical Data Sheet: NTD-CP-S-1

Wiring Diagram
Orenco S1RO Series Simplex Control Panel Wiring Diagram: EDW-WD-S-2

Float Arrangement Diagram
Orenco S1RO Series Simplex Control Panel Float Arrangement Diagram: EDW-FA-S-2

Splice Box Wiring Diagrams
Orenco S1RO Series Simplex Control Panel Splice Box Wiring Diagram: EDW-SB-S-11

Orenco S1RO Series Simplex Control Panel Splice Box Wiring Diagram: EDW-SB-S-12
