Orenco Biotube® pump vaults are used to transport filtered effluent from septic tanks or separate dosing tanks in effluent pumping systems. They are a critical component of individual onsite systems and effluent sewer collection systems. Pump vaults house a Biotube effluent filter and one or two Orenco high-head effluent pumps and can be used in single-compartment septic tanks with flows up to 40 GPM. When flows are greater than 40 GPM, a double-compartment septic tank or separate dosing tank is recommended. Pump vaults are 12 in. in diameter, and accommodate one pump (simplex) or two pumps (duplex). Each pump vault comes with a Biotube filter cartridge, vault housing, support pipes, and float bracket to hold the float assembly. Custom lengths can be produced.

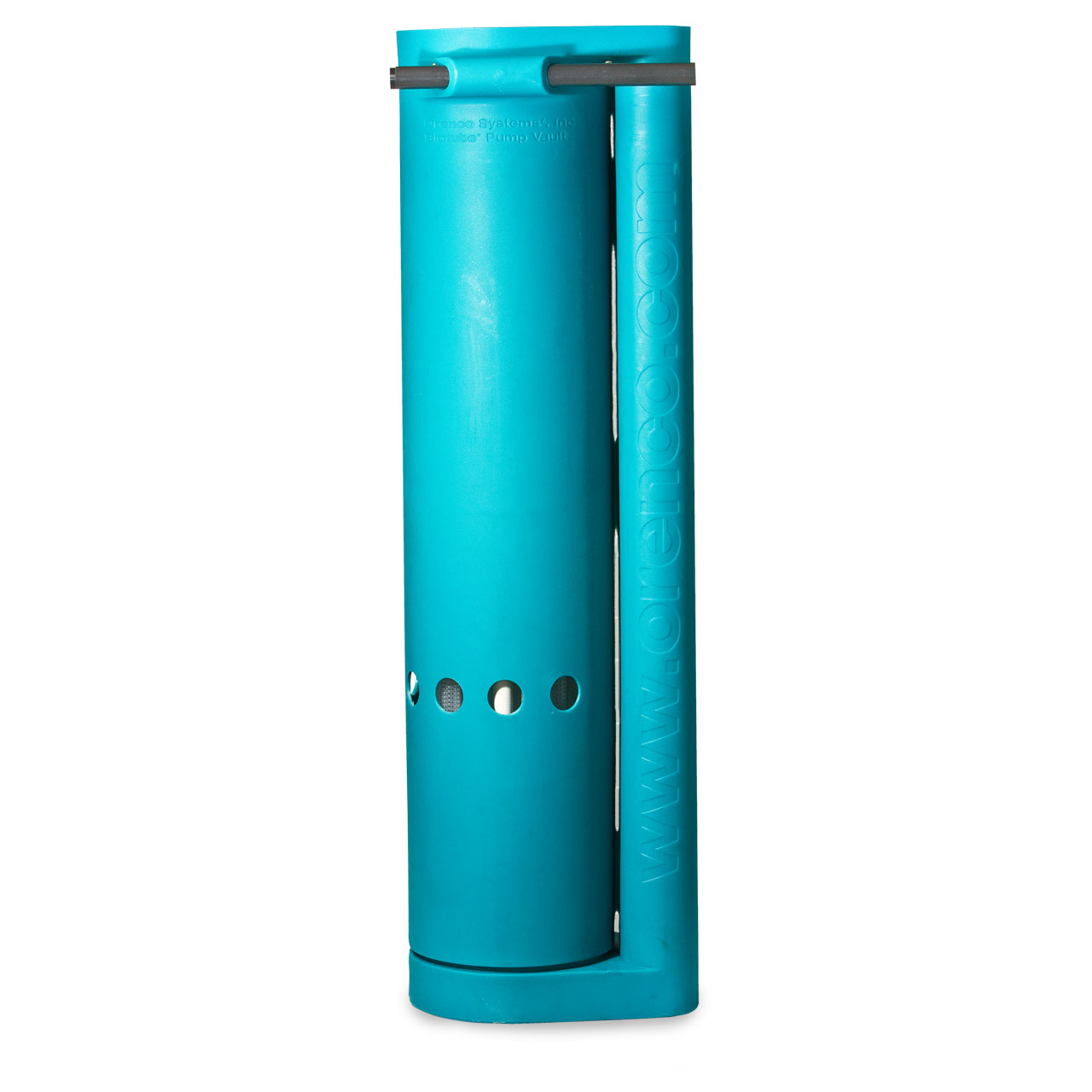

Orenco PVU951819L Biotube Pump Vault Typical Application

• Residential septic tank effluent
• Commercial septic tank effluent
• Dose tank high head pumping
• Treatment system pumping
• Other effluent pumping where screening is needed

Orenco PVU951819L Biotube Pump Vault Technical Details

• Molded polyethylene housing
• Long support pipes for 30" risers (can be cut down for smaller risers)
• Provides flow inducer for high-head turbine style pumps
• 19.7 sq ft screen area
• 5.9 sq ft flow area
• 0.125 (1/8") in opening Biotube filter
• Extendible handle for easy removal
• Filter can be removed without pulling the pump or vault
• Easy to clean by simply hosing off whenever the tank needs pumping
• Removes suspended solids extending drainfield life
• Corrosion-proof construction to ensure long life

Orenco Biotube Pump Vault Superior Features

• Large filter area
• Corrosion proof construction
• Screen easy to clean
• Float tree mount built in
• Pump sleeve routes water to provide motor cooling

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Orenco Biotube Pump Vault Product Resources

Orenco Biotube Pump Vault Product Data Sheet: APS-BPV-1

Orenco Biotube Pump Vault Technical Data Sheet: NTD-PVU-1

Orenco Biotube Pump Vault Installation/O&M Instructions: NIN-PVU-1-PRN
