Orenco Biotube® pump vaults are used to transport filtered effluent from septic tanks or separate dosing tanks in effluent pumping systems. They are a critical component of individual onsite systems and effluent sewer collection systems. Pump vaults house a Biotube effluent filter and one or two Orenco high-head effluent pumps and can be used in single-compartment septic tanks with flows up to 40 gpm. When flows are greater than 40 gpm, a double-compartment septic tank or separate dosing tank is recommended. Pump vaults are 12 in. in diameter, and accommodate one pump (simplex) or two pumps (duplex). Each pump vault comes with a Biotube filter cartridge, vault housing, support pipes, and float bracket to hold the float assembly. Custom lengths can be produced.

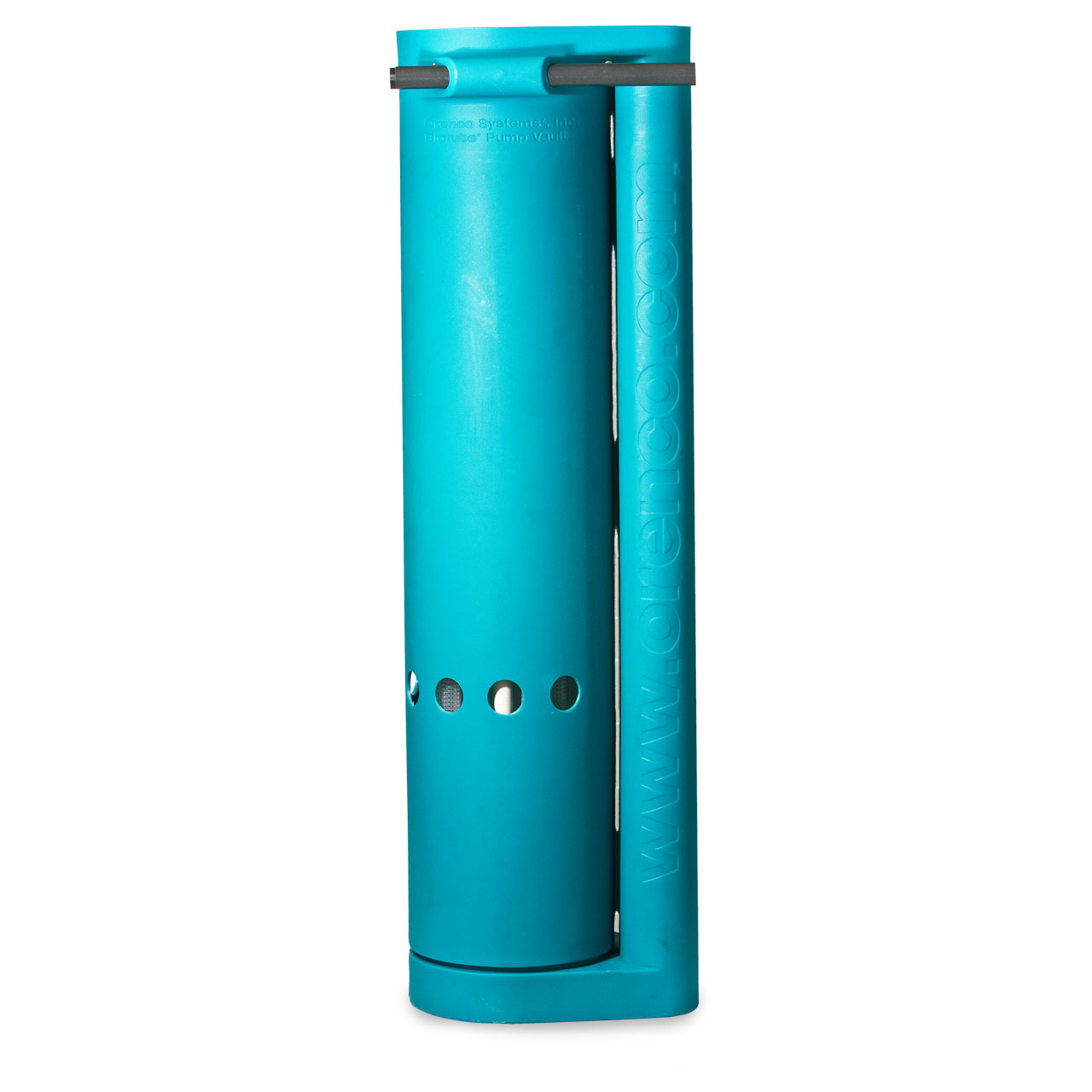

Orenco PVU721819L Biotube Pump Vault Typical Application

• Residential Septic Tank Effluent
• Commercial Septic Tank Effluent
• Dose Tank High Head Pumping
• Treatment System Pumping
• Other Effluent Pumping where Screening is Needed

Orenco PVU721819L Biotube Pump Vault Technical Details

• Molded Polyethylene Housing
• Long Support Tubes for 30" Risers (can be cut for smaller risers if needed)
• Provides Flow Inducer for High-Head Turbine Style Pumps
• 19.7 sq ft Screen Area
• 5.9 sq ft Flow Area
• 0.125 (1/8") in Opening Biotube Filter
• Extendible Handle for Easy Removal
• Filter can be Removed Without Pulling the Pump or Vault
• Easy to Clean by Simply Hosing Off Whenever the Tank Needs Pumping
• Removes Suspended Solids Extending Drainfield Life
• Corrosion-Proof Construction to Ensure Long Life

Orenco Biotube Pump Vault Superior Features

• Large Filter Area
• Corrosion Proof Construction
• Screen Easy to Clean
• Float Tree Mount Built In
• Pump Sleeve Routes Water to Provide Motor Cooling
