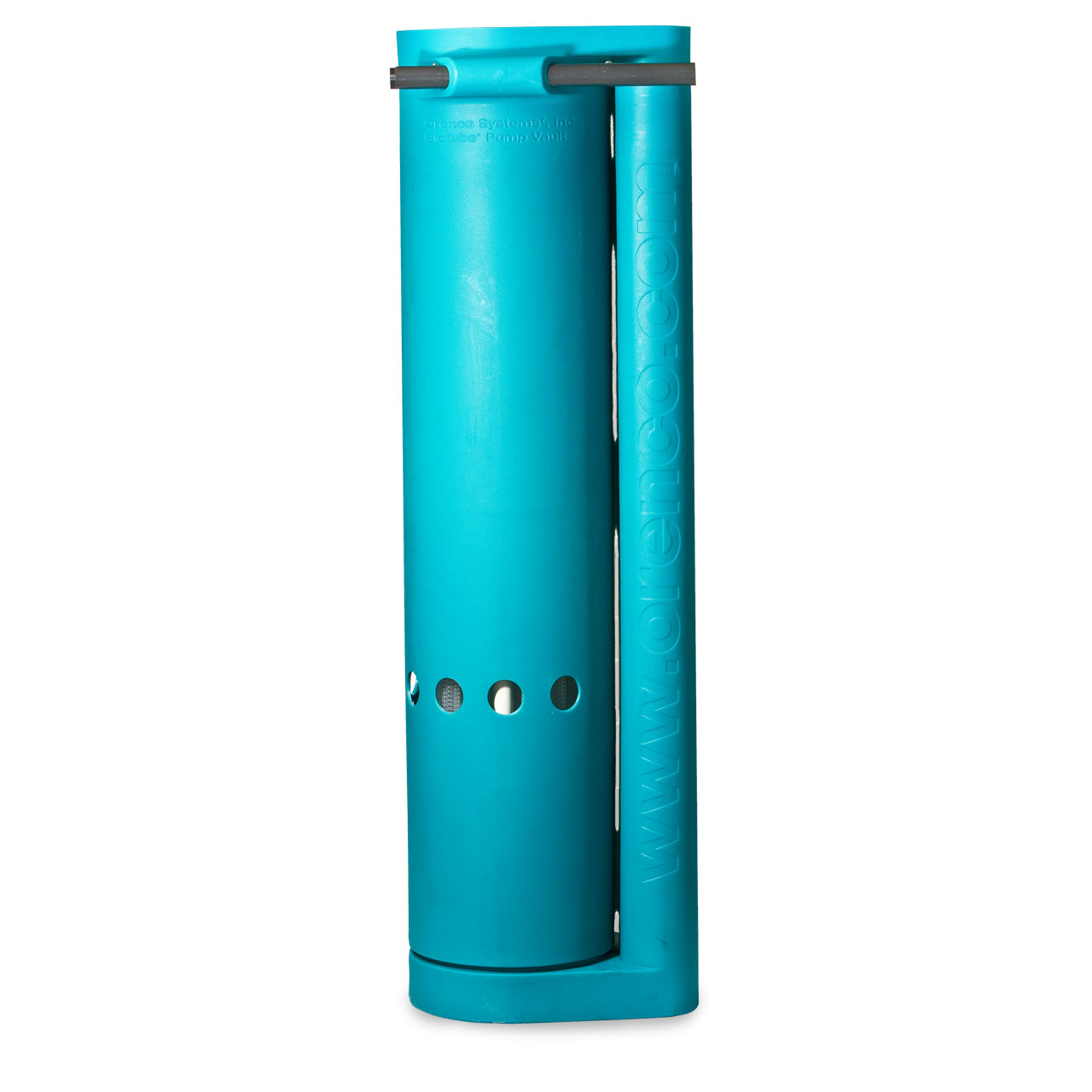

Orenco PVU5724 Biotube Pump Vault w/No Inlet Holes
Orenco PVU5724 Biotube Pump Vault w/No Inlet Holes
SKU : ONCPVU57-24
In Stock Quantity:0
:
Brand
:
Shipping calculated at checkout.
Couldn't load pickup availability
Description
Description
Orenco Biotube® pump vaults are used to transport filtered effluent from septic tanks or separate dosing tanks in effluent pumping systems. They are a critical component of individual onsite systems and effluent sewer collection systems. Pump vaults house a Biotube effluent filter and one or two Orenco high-head effluent pumps and can be used in single-compartment septic tanks with flows up to 40 GPM. When flows are greater than 40 GPM, a double-compartment septic tank or separate dosing tank is recommended. Pump vaults are 12 in. in diameter, and accommodate one pump (simplex) or two pumps (duplex). Each pump vault comes with a Biotube filter cartridge, vault housing, support pipes, and float bracket to hold the float assembly. Custom lengths can be produced.
Orenco PVU5724 Biotube Pump Vault Typical Application
- Residential Septic Tank Effluent
- Commercial Septic Tank Effluent
- Dose Tank High Head Pumping
- Treatment System Pumping
- Other Effluent Pumping where Screening is Needed
Orenco PVU5724 Biotube Pump Vault Technical Details
- Molded Polyethylene Housing
- Provides Flow Inducer for High-Head Turbine Style Pumps
- 19.7 sq ft Screen Area
- 5.9 sq ft Flow Area
- 0.125 (1/8") in Opening Biotube Filter
- Extendible Handle for Easy Removal
- Filter can be Removed Without Pulling the Pump or Vault
- Easy to Clean by Simply Hosing off Whenever the Tank Needs Pumping
- Removes Suspended Solids Extending Drainfield Life
- Corrosion-Proof Construction to Ensure Long Life
Specifications
Specifications
Orenco Biotube Pump Vault Superior Features
- Large Filter Area
- Corrosion Proof Construction
- Screen Easy to Clean
- Float Tree Mount Built In
- Pump Sleeve Routes Water to Provide Motor Cooling
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
