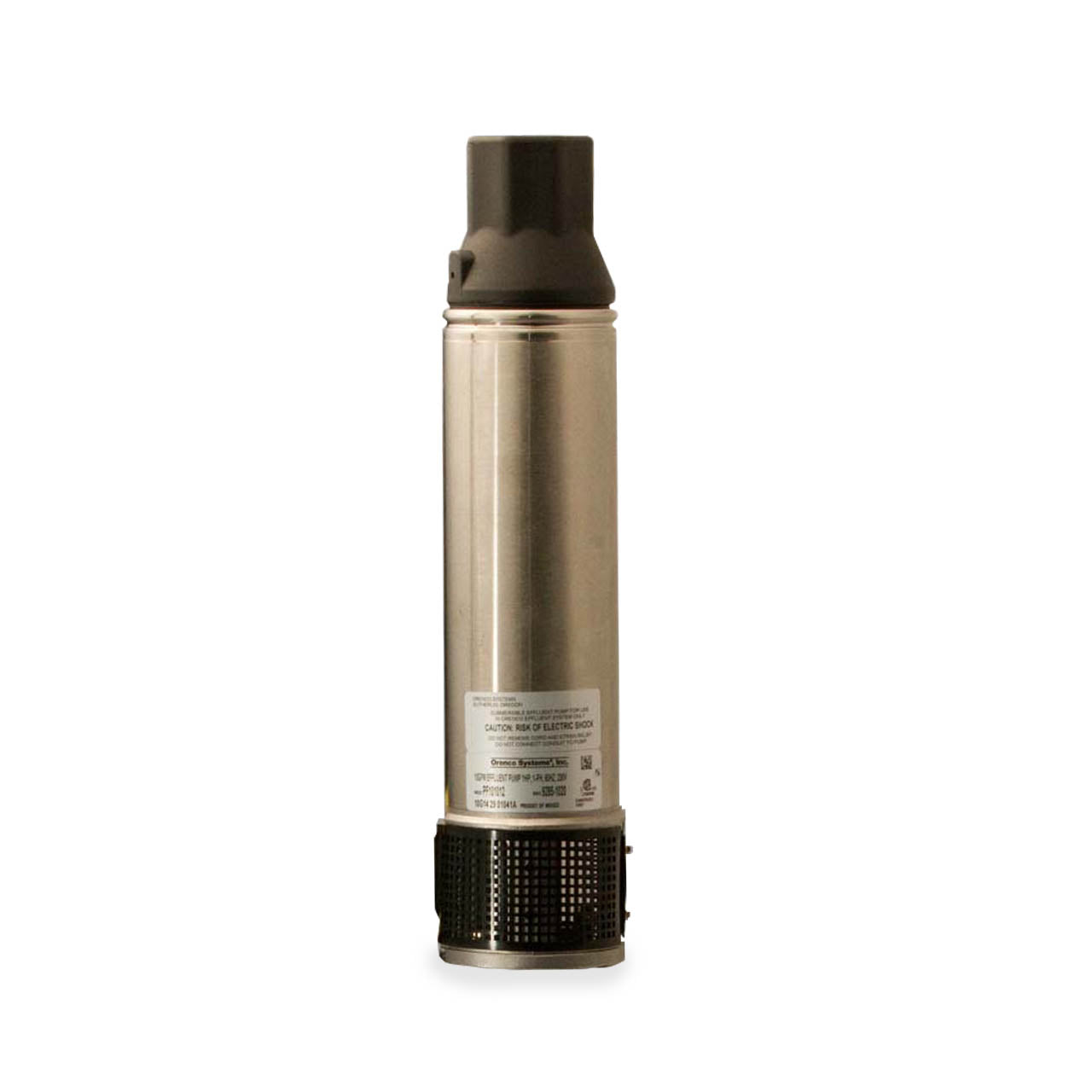

Orenco PFL1005 10 GPM 0.5 HP High Head Effluent LIQUID END ONLY

Orenco PFL1005 10 GPM 0.5 HP High Head Effluent LIQUID END ONLY

Ships within 24 hours

SKU : ONCPFL1005

In Stock Quantity:10

:
Brand : Orenco Systems, Inc.
$724.54 USD
Shipping calculated at checkout.

Description

THIS IS THE LIQUID END ONLY. Orenco high-head effluent pumps are manufactured specifically for wastewater applications, to transport filtered effluent from septic tanks. High-head capabilities make them the ideal choice for STEP effluent sewer systems. Steep pump curves provide high-pressure capacity to clear plugged orifices in pressurized distribution systems. Orenco high-head effluent pumps possess a high cycling capability (up to 300 cycles/day on most models), which is needed for optimum treatment in many of today’s high performance onsite systems. 60-Hz 1/2 hp to 1-1/2 hp pumps are UL and CSA listed for use in effluent. 5-year extended warranty included with all PF series pumps. PF pumps include an SOOW type cable, suitable for Class I, Division 1 and 2 applications (check local codes).

Orenco PF Liquid End Effluent Pump Typical Application

  • Residential Septic Tank Effluent
  • Disposal System Dosing
  • Treatment System Dosing

Orenco PF Liquid End Effluent Pump Technical Details

  • Minimum 24-Hour Run-Dry Capability with No Deterioration in Pump Life or Performance
  • Patented 1⁄8" (3-mm) Bypass Orifice to Ensure Flow Recirculation for Motor Cooling and to Prevent Air Bind
  • TRI-SEAL™ Floating Impeller Design on 10, 20, and 30 GPM (0.6, 1.3, and 1.9 L/sec) Models; floating stack design on 50 and 75 GPM (3.2 and 4.7 L/sec) models
  • Five-Year Warranty on Pump or Retrofit Liquid End from Date of Manufacture Against Defects in Materials or Workmanship

Specifications

Orenco PF1005 Liquid End Effluent Pump Specifications

  • DISCHARGE SIZE: 1.25” FNPT
  • NOMINAL FLOW RATING: 10 GPM
  • HORSEPOWER: 0.5 HP
  • MAXIMUM CAPACITY: 16 GPM
  • MAXIMUM HEAD: 250’
  • IMPELLER DESIGN: Floating Impeller Design
  • IMPELLER MATERIAL: Glass Reinforced Thermoplastic
  • BODY MATERIAL:  Stainless Steel

Orenco PF Series High Head Effluent Pump Curve

Orenco PF10 Pump Curve

WARNING Cancer and Reproductive Harm - www.P65Warnings.ca.gov WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Resources

Orenco PF Series High Head Effluent Pump Product Resources


Orenco PF Series High Head Effluent Pump Technical Data Sheet: NTD-GOP-PMP-1
