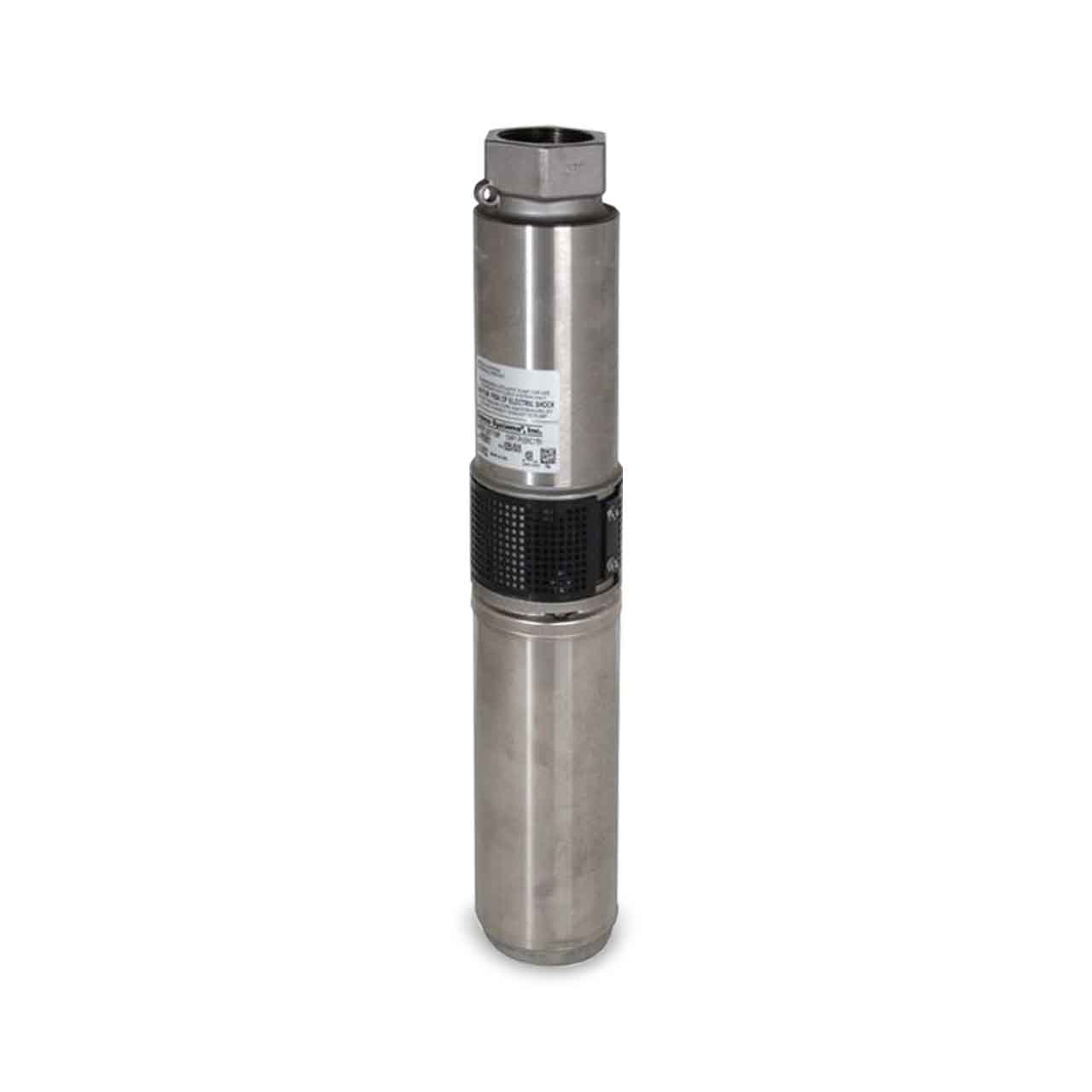

Orenco PF751532 High Head Effluent Pump 75 GPM 1.5 HP 230V 3PH 10' Cord

Orenco PF751532 High Head Effluent Pump 75 GPM 1.5 HP 230V 3PH 10' Cord

Usually ships within 1 week

SKU : ONCPF751532

In Stock Quantity:-2

:
Brand : Orenco Systems, Inc.
$3,090.19 USD
Shipping calculated at checkout.

Description

Orenco high-head effluent pumps are manufactured specifically for wastewater applications, to transport filtered effluent from septic tanks. High-head capabilities make them the ideal choice for STEP effluent sewer systems. Steep pump curves provide high-pressure capacity to clear plugged orifices in pressurized distribution systems. Orenco high-head effluent pumps possess a high cycling capability (up to 300 cycles/day on most models), which is needed for optimum treatment in many of today’s high performance onsite systems. 60-Hz 1/2 hp to 1-1/2 hp pumps are UL and CSA listed for use in effluent. 5-year extended warranty included with all PF series pumps. PF pumps include an SOOW type cable, suitable for Class I, Division 1 and 2 applications (check local codes).

Orenco PF751532 High Head Effluent Pump Typical Application

  • Residential Septic Tank Effluent
  • Disposal System Dosing
  • Treatment System Dosing

Specifications

Orenco PF751532 High Head Effluent Pump Technical Details

  • Minimum 24-Hour Run-Dry Capability with No Deterioration in Pump Life or Performance
  • Patented 1⁄8" (3-mm) Bypass Orifice to Ensure Flow Recirculation for Motor Cooling and to Prevent Air Bind
  • Liquid End Repair Kits Available for Better Long-Term Cost of Ownership
  • TRI-SEAL™ Floating Impeller Design on 10, 20, and 30 gpm (0.6, 1.3, and 1.9 L/sec) Models; floating stack design on 50 and 75 gpm (3.2 and 4.7 L/sec) models
  • Franklin Electric Super Stainless Motor, Rated for Continuous use and Frequent Cycling
  • Type SOOW 600-V Motor Cable (suitable for Class I, Division 1 and Division 2 applications)
  • 75 GPM Nominal Flow (see pump curve)
  • 1.5 HP, 230 VAC, Three Phase, 12.4 FLA
  • 2" FPT Discharge

Orenco PF75 Series High Head Effluent Pump Curve


WARNING Cancer and Reproductive Harm - www.P65Warnings.ca.gov WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Resources

Orenco PF Series High Head Effluent Pump Product Resources


Orenco PF Series High Head Effluent Pump Technical Data Sheet: NTD-PU-PF-5

Orenco PF Series High Head Effluent Pump Owner's Manual: XLD-PU-PF-1
