Orenco high-head effluent pumps are manufactured specifically for wastewater applications, to transport filtered effluent from septic tanks. High-head capabilities make them the ideal choice for STEP effluent sewer systems. Steep pump curves provide high-pressure capacity to clear plugged orifices in pressurized distribution systems. Orenco high-head effluent pumps possess a high cycling capability (up to 300 cycles/day on most models), which is needed for optimum treatment in many of today’s high performance onsite systems. 60-Hz 1/2 hp to 1-1/2 hp pumps are UL and CSA listed for use in effluent. 5-year extended warranty included with all PF series pumps. PF pumps include an SOOW type cable, suitable for Class I, Division 1 and 2 applications (check local codes).

Orenco PF Series High Head Effluent Pump Typical Application

• Residential Septic Tank Effluent
• Disposal System Dosing
• Treatment System Dosing

Orenco PF Series High Head Effluent Pump Technical Details

• Minimum 24-Hour Run-Dry Capability with No Deterioration in Pump Life or Performance
• Patented 1⁄8" (3-mm) Bypass Orifice to Ensure Flow Recirculation for Motor Cooling and to Prevent Air Bind
• Liquid End Repair Kits Available for Better Long-Term Cost of Ownership
• TRI-SEAL™ Floating Impeller Design on 10, 20, and 30 GPM (0.6, 1.3, and 1.9 L/sec) Models; floating stack design on 50 and 75 GPM (3.2 and 4.7 L/sec) models
• Franklin Electric Super Stainless Motor, Rated for Continuous use and Frequent Cycling
• Type SOOW 600-V Motor Cable (suitable for Class I, Division 1and Division 2 applications)

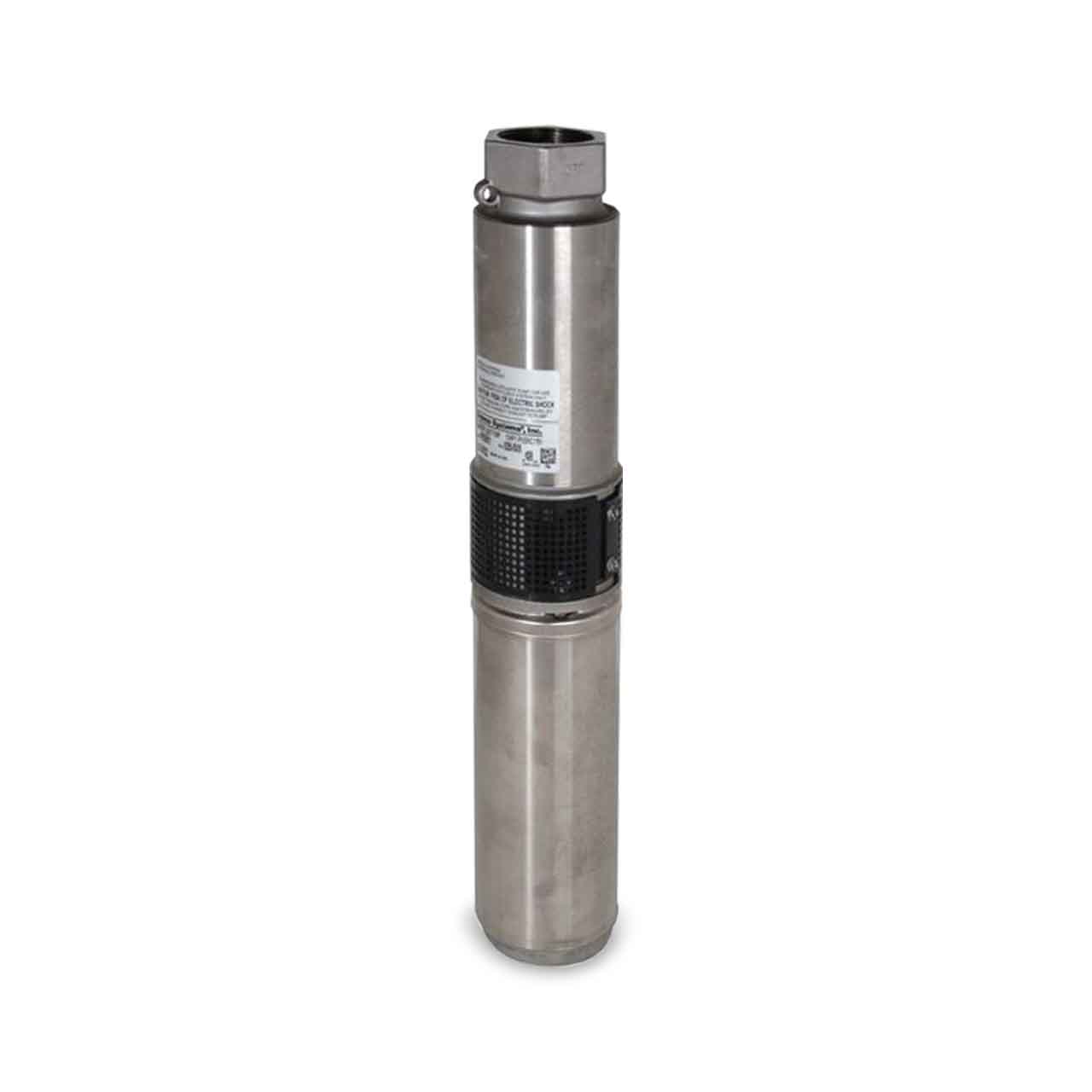

Orenco PF100712 High Head Effluent Pump Specifications

• VOLTAGE: 1ø, 230V, 60Hz
• HORSEPOWER: 0.75 HP
• AMP DRAW (full load): 8.3
• MAXIMUM HEAD: 330'
• MAXIMUM CAPACITY: 15 GPM
• DISCHARGE PIPE SIZE: 1.25” FPT
• IMPELLER TYPE: Floating Impeller Design
• CORD LENGTH: 10' Type SOOW
• BODY CONSTRUCTION: Stainless Steel
• DUTY RATING: Continuous

Orenco PF Series High Head Effluent Pump Curve

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Orenco PF Series High Head Effluent Pump Product Resources

Orenco PF Series High Head Effluent Pump Technical Data Sheet: NTD-PU-PF-1

Orenco PF Series High Head Effluent Pump Owner's Manual: XLD-PU-PF-1
