Orenco MVPS1/S2DMHTPRL Simplex Dual Mode Control Panel 120/240V HT PRL

Orenco MVPS1/S2DMHTPRL Simplex Dual Mode Control Panel 120/240V HT PRL

Usually ships within 1 week

SKU : ONCMVPS1/2DMHTPRL

In Stock Quantity:0

:
Brand : Orenco Systems, Inc.
Shipping calculated at checkout.

Description

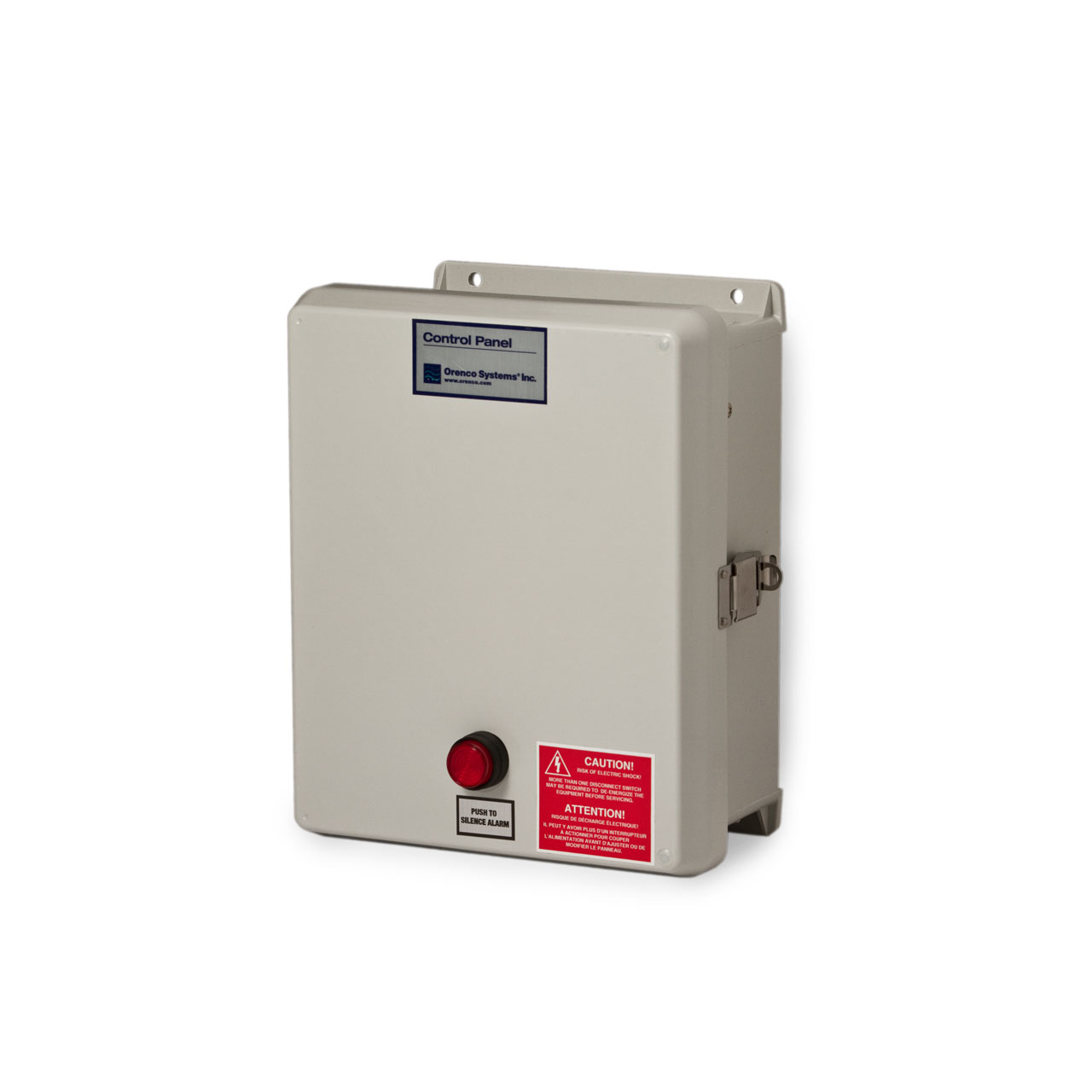

The MVP-S1/2DM (4-in-1) control panel is ideal for single-pump systems that might otherwise require several different types of panels. The controls circuit operates on 120 V power, the pump circuit is dual-rated for 120 V or 240 V power. In addition, the panel can be configured at the shop or in the field for timed-or demand-dosing applications. All MVPs include an easy-to-use, programmable logic unit that incorporates many timing and logic functions, such as multiple timing intervals to adjust for changing flow conditions and a built-in elapsed time meter and counter.

Orenco MVPS1/S2DM Typical Application

  • Residential and Light Commercial Sump, Septic Tank Effluent, and Raw Sewage Pumping Applications.

Specifications

Orenco MVPS1/S2DM Technical Details

  • Programmable Controller for Timed or Demand Dosing Applications
  • Built-In Programming Keys Allow Reprogramming in the Field Without a Portable Computer
  • Totalized and Resettable Data for:– Elapsed Pump Runtimes– Pump Cycle Counts– Low-and High-Level Alarms– Overrides (intimed-dose mode)– Power Failures
  • Float Status Screen with Error Notification and Float Position Indication
  • Dual-Voltage Rated, 120 VAC or 240 VAC
  • Motor Contactor: 120 VAC/16 FLA/1 HP or 240 VAC/16 FLA/3 HP
  • Hand-Off-Auto Switch
  • 10A Control Breaker
  • 20A Pump Breaker
  • Audible Alarm: 95 dB at 24", Warble Tone Sound
  • Visual Alarm: 7/8" Diameter Red Lens, "Push-To-Silence", LED Light
  • Enclosure: 11.5"H x 9.5"W x 5.4"D, NEMA 4X, UV-Resistant Fiberglass, Stainless Steel Latch and Hinge
  • Additional Features
    • HT - Panel Heater - Anti-Condensation Heater. Self-Adjusting: Radiates Additional Wattage as Temperature Drops
    • PRL - 7⁄8-in. (22-mm) Diameter Green Lens. UL Type 4X Rated, 1 W LED Light, 120 V

WARNING Cancer and Reproductive Harm - www.P65Warnings.ca.gov WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Resources

Orenco MVPS1/S2DM Control Panel Product Resources


Brochure
Orenco MVP-S1/S2DM Product Sheet: APS-CP-MVP-4

Orenco MVP-S1/S2DM Technical Data Sheet: NTD-CP-MVP-3

Installation and Operation Manuals
Orenco MVP-S DM Installation Manual Document List : EIN-CP-S-1017

Orenco MVP-DAX RO Installation Instructions: EIN-CP-GEN-1

Orenco MVP-S1/2 DM Series Simplex Control Panel Wiring Diagram: EDW-WD-S-231

Orenco MVP-S DM (Timed Dose) Simplex Control Panel Float Arrangement Diagram: EDW-FA-S-24

Orenco MVP-S DM (Demand Dose) Simplex Control Panel Float Arrangement Diagram: EDW-FA-S-25

Orenco MVP-S DM Operation Guide: EIN-CP-OP-2036

Orenco MVP-S DM Setting Instructions: EIN-CP-SET-2199

Orenco MVP Contract Adjustment and Time and Date Settings: EIN-CP-SET-111-3

Orenco MVP-S DM Reference Chart: EIN-CP-REF-148

Splice Box Wiring Diagrams
Orenco MVP-S DM Series Simplex Control Panel Splice Box Wiring Diagram: EDW-SB-S-26

Orenco MVP-S DM Series Simplex Control Panel Splice Box Wiring Diagram: EDW-SB-S-27

Orenco MVP-S DM Series Simplex Control Panel Splice Box Wiring Diagram: EDW-SB-S-28

Orenco MVP-S DM Series Simplex Control Panel Splice Box Wiring Diagram: EDW-SB-S-43

Warranty
Loading...

Video

Orenco MVPS1/S2DM Control Panel Videos

Orenco MVP Onsite Wastewater Pump Panel Class 2014 at OWAI

Scott Hammerschmith with Orenco Systems, Inc. presented information at the 2014 Onsite Wastewater Association of Idaho annual conference on Orenco MVP pump control panels. Scott covered the different types of pump panels Orenco manufacturers as well as some very valuable troubleshooting tips for the MVP panel line. Toward the end of this presentation, Scott provides a great explanation of how to troubleshoot a motor contactor specifically.

This video is 57 minutes and 47 seconds long with important information at the following time sequences:
