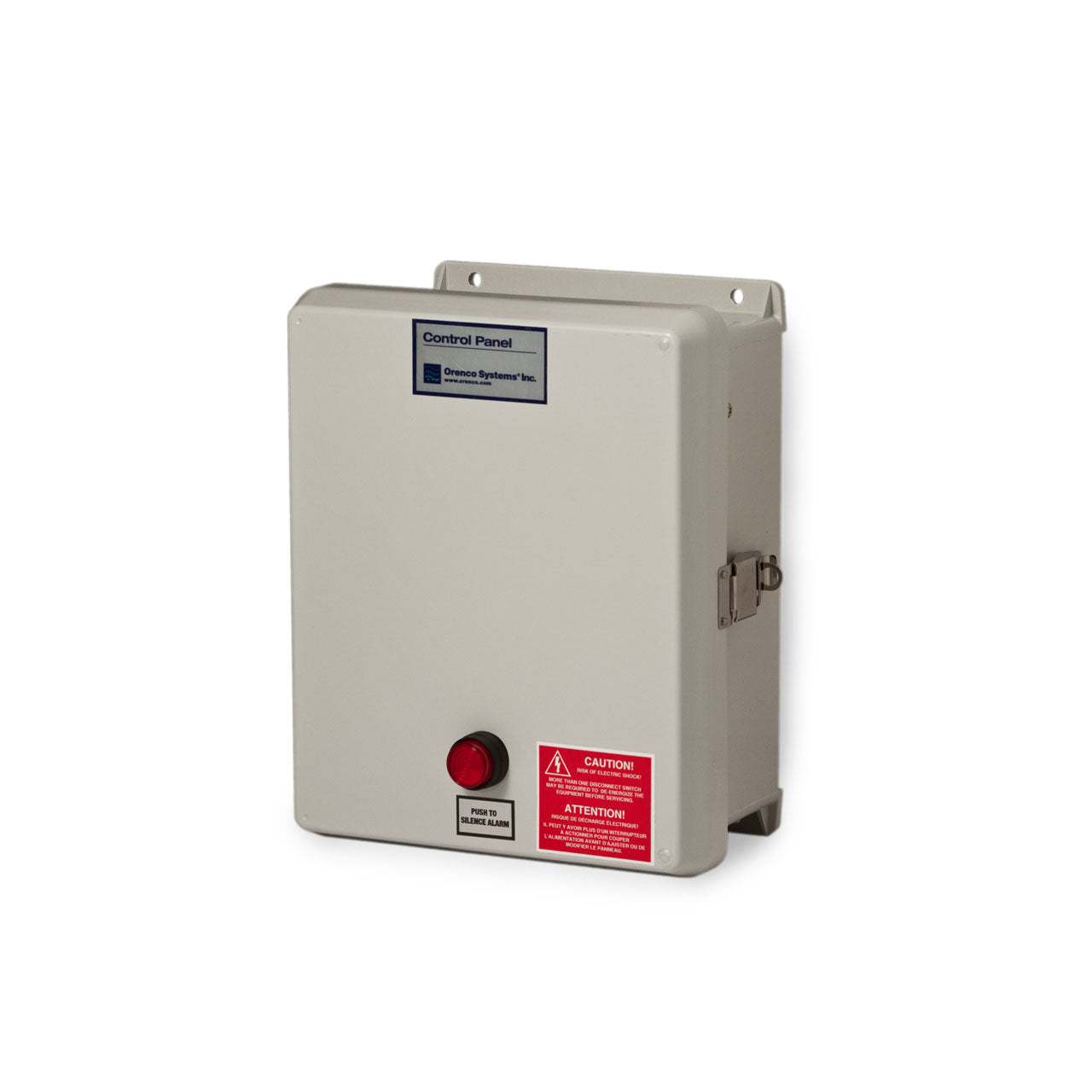

The MVP-S1/2DM (4-in-1) control panel is ideal for single-pump systems that might otherwise require several different types of panels. The controls circuit operates on 120 V power, the pump circuit is dual-rated for 120 V or 240 V power. In addition, the panel can be configured at the shop or in the field for timed-or demand-dosing applications. All MVPs include an easy-to-use, programmable logic unit that incorporates many timing and logic functions, such as multiple timing intervals to adjust for changing flow conditions and a built-in elapsed time meter and counter.

Orenco MVPS1/S2DM Typical Application

• Residential and Light Commercial Sump, Septic Tank Effluent, and Raw Sewage Pumping Applications.

Orenco MVPS1/S2DM Control Panel Specifications

• Programmable Controller for Timed or Demand Dosing Applications
• Built-In Programming Keys Allow Reprogramming in the Field Without a Portable Computer
• Totalized and Resettable Data for:– Elapsed Pump Runtimes– Pump Cycle Counts– Low-and High-Level Alarms– Overrides (intimed-dose mode)– Power Failures
• Float Status Screen with Error Notification and Float Position Indication
• Dual-Voltage Rated, 120 VAC or 240 VAC
• Motor Contactor: 120 VAC/16 FLA/1 HP or 240 VAC/16 FLA/3 HP
• Hand-Off-Auto Switch
• 10A Control Breaker
• 20A Pump Breaker
• Audible Alarm: 95 dB at 24", Warble Tone Sound
• Visual Alarm: 7/8" Diameter Red Lens, "Push-To-Silence", LED Light
• Enclosure: 11.5"H x 9.5"W x 5.4"D, NEMA 4X, UV-Resistant Fiberglass, Stainless Steel Latch and Hinge

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Orenco MVPS1/S2DM Control Panel Product Resources

Brochure
Orenco MVP-S1/S2DM Product Sheet: APS-CP-MVP-4

Orenco MVP-S1/S2DM Technical Data Sheet: NTD-CP-MVP-3

Installation and Operation Manuals
Orenco MVP-S DM Installation Manual Document List: EIN-CP-S-1017

Orenco MVP-S DM Installation Instructions: EIN-CP-GEN-1

Orenco MVP-S1/2 DM Series Simplex Control Panel Wiring Diagram: EDW-WD-S-231

Orenco MVP-S DM (Timed Dose) Simplex Control Panel Float Arrangement Diagram: EDW-FA-S-24

Orenco MVP-S DM (Demand Dose) Simplex Control Panel Float Arrangement Diagram: EDW-FA-S-25

Orenco MVP-S DM Operation Guide: EIN-CP-OP-2036

Orenco MVP-S DM Setting Instructions: EIN-CP-SET-2199

Orenco MVP Contract Adjustment and Time and Date Settings: EIN-CP-SET-111-3

Orenco MVP-S DM Reference Chart: EIN-CP-REF-148

Splice Box Wiring Diagrams
Orenco MVP-S DM Series Simplex Control Panel Splice Box Wiring Diagram: EDW-SB-S-26

Orenco MVP-S DM Series Simplex Control Panel Splice Box Wiring Diagram: EDW-SB-S-27

Orenco MVP-S DM Series Simplex Control Panel Splice Box Wiring Diagram: EDW-SB-S-28

Orenco MVP-S DM Series Simplex Control Panel Splice Box Wiring Diagram: EDW-SB-S-43
