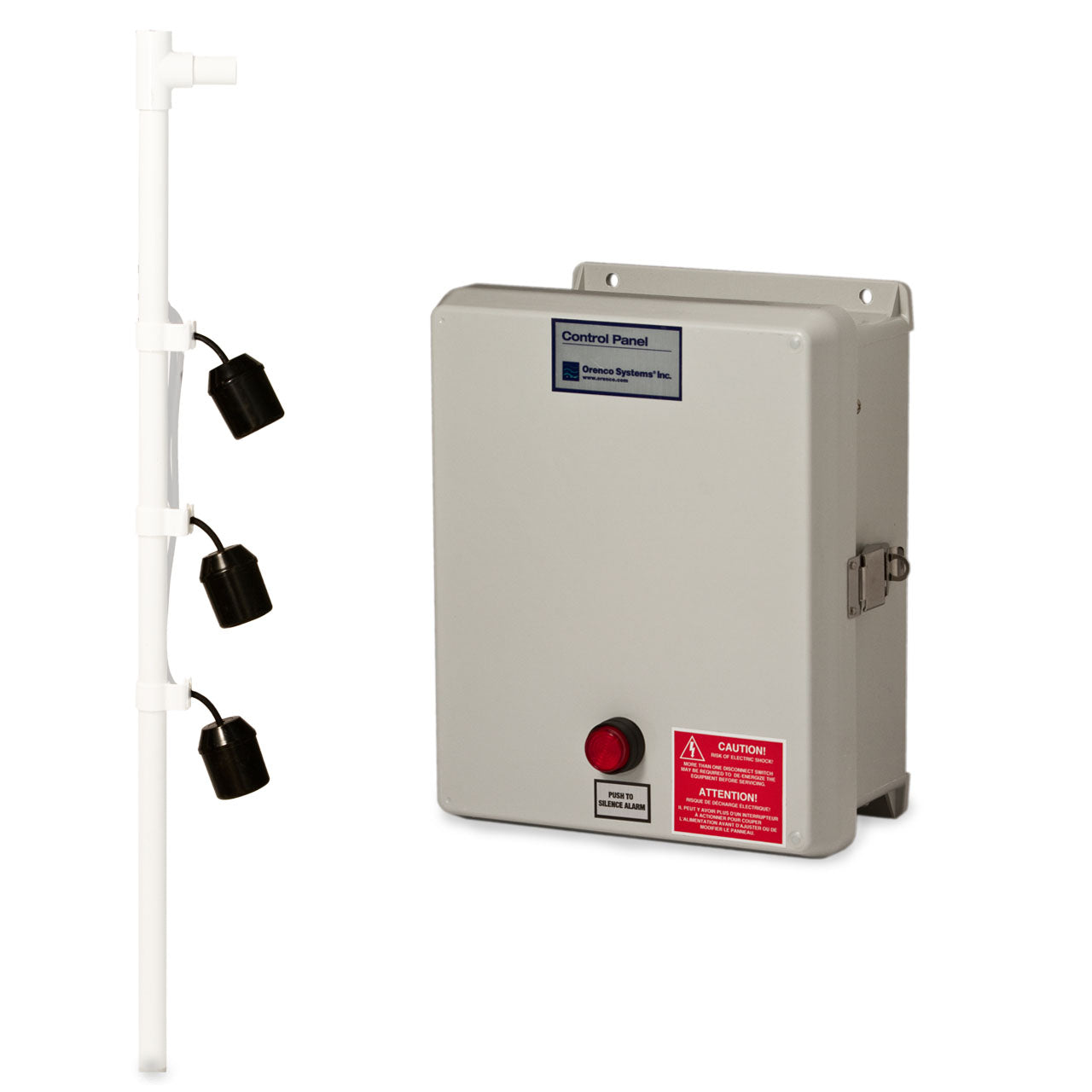

Orenco MVPS1/S2DM MF3A Simplex Dual Mode Control Panel Kit with Liquid Level Switches 120/240V

Orenco MVPS1/S2DM MF3A Simplex Dual Mode Control Panel Kit with Liquid Level Switches 120/240V

Discontinued or no longer available.

SKU : ONCMVPS1/2DM-MF3A

In Stock Quantity:0

:
Brand : Orenco Systems, Inc.
Shipping calculated at checkout.

Description

Item Being Discontinued, See Replacement: Orenco MVPS1/S2DM MF3P Simplex Dual Mode Control Panel Kit with Liquid Level Switches 120/240V

The MVP-S1/2DM (4-in-1) control panel is ideal for single-pump systems that might otherwise require several different types of panels. The controls circuit operates on 120 V power, the pump circuit is dual-rated for 120 V or 240 V power. In addition, the panel can be configured at the shop or in the field for timed-or demand-dosing applications. All MVPs include an easy-to-use, programmable logic unit that incorporates many timing and logic functions, such as multiple timing intervals to adjust for changing flow conditions and a built-in elapsed time meter and counter.

Orenco MVPS1/S2DM Typical Application

  • Residential and Light Commercial Sump, Septic Tank Effluent, and Raw Sewage Pumping Applications.

Specifications

Orenco MVPS1/S2DM Technical Details

  • Programmable Controller for Timed or Demand Dosing Applications
  • Built-In Programming Keys Allow Reprogramming in the Field Without a Portable Computer
  • Totalized and Resettable Data for:– Elapsed Pump Run Times– Pump Cycle Counts– Low-and High-Level Alarms– Overrides (in timed-dose mode)– Power Failures
  • Float Status Screen with Error Notification and Float Position Indication
  • Dual-Voltage Rated, 120 VAC or 240 VAC
  • Motor Contactor: 120 VAC/16 FLA/ 1 HP or 240 VAC/16 FLA/3 HP
  • Hand-Off-Auto Switch
  • 10A Control Breaker
  • 20A Pump Breaker
  • Audible Alarm: 95 dB at 24", Warble Tone Sound
  • Visual Alarm: 7/8" Diameter Red Lens, "Push-To-Silence", LED Light
  • Enclosure: 11.5"H x 9.5"W x 5.4"D, NEMA 4X, UV-Resistant Fiberglass, Stainless Steel Latch and Hinge
  • Includes Orenco System Inc. MF3P Liquid Level Switch Assembly

R.C. Worst & Company Mercury Switch Purchase Policy

Any order placed for a mercury activated float switch in a mercury restricted state will result in an automatic exchange to a mechanical equivalent of the product ordered. Difference in cost will result in an automatic refund of the difference between the two products. Instances where the mechanical alternative is more costly, our customer service staff will contact you to make you aware of the difference in cost.

*Mercury Restricted States as of 10/01/2010: Connecticut, Rhode Island, Maine, California, Vermont, Illinois, Minnesota, New York , Louisiana, New Hampshire, Massachusetts, Wisconsin


WARNING Cancer and Reproductive Harm - www.P65Warnings.ca.gov WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Resources

Orenco MVPS1/S2DM Control Panel Product Resources


Brochure
Orenco MVP-S1/S2DM Product Sheet: APS-CP-MVP-4

Orenco MVP-S1/S2DM Technical Data Sheet: NTD-CP-MVP-3

Installation and Operation Manuals
Orenco MVP-S DM Installation Manual Document List: EIN-CP-S-1017

Orenco MVP-S DM Installation Instructions: EIN-CP-GEN-1

Orenco MVP-S1/2 DM Series Simplex Control Panel Wiring Diagram: EDW-WD-S-231

Orenco MVP-S DM (Timed Dose) Simplex Control Panel Float Arrangement Diagram: EDW-FA-S-24

Orenco MVP-S DM (Demand Dose) Simplex Control Panel Float Arrangement Diagram: EDW-FA-S-25

Orenco MVP-S DM Operation Guide: EIN-CP-OP-2036

Orenco MVP-S DM Setting Instructions: EIN-CP-SET-2199

Orenco MVP Contract Adjustment and Time and Date Settings: EIN-CP-SET-111-3

Orenco MVP-S DM Reference Chart: EIN-CP-REF-148

Splice Box Wiring Diagrams
Orenco MVP-S DM Series Simplex Control Panel Splice Box Wiring Diagram: EDW-SB-S-26

Orenco MVP-S DM Series Simplex Control Panel Splice Box Wiring Diagram: EDW-SB-S-27

Orenco MVP-S DM Series Simplex Control Panel Splice Box Wiring Diagram: EDW-SB-S-28

Orenco MVP-S DM Series Simplex Control Panel Splice Box Wiring Diagram: EDW-SB-S-43
