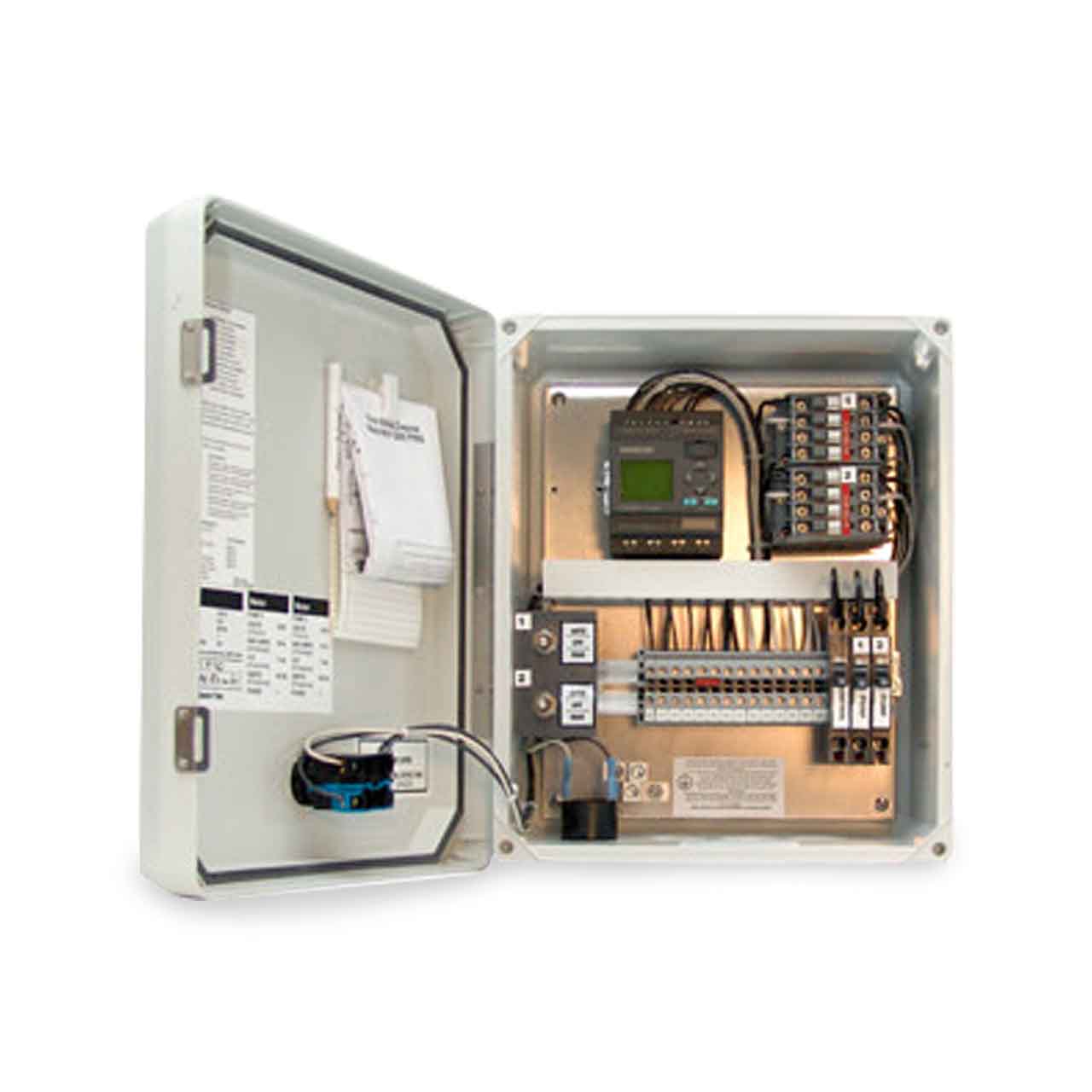

The MVP-Duplex control panel is dual-voltage for both 120v and 240 v applications and has a dual-mode feature, making it ideal for both timed- and demand-dosing in two-pump alternating systems for onsite wastewater and water treatment systems. All MVPs include an easy-to-use, programmable logic unit that incorporates many timing and logic functions, such as multiple timing intervals to adjust for changing flow conditions and built-in elapsed time meters and cycle counters.

Orenco MVPDAX Typical Application

• Residential and Light Commercial Sump, Septic Tank Effluent, and Raw Sewage Pumping Applications.

Orenco MVPDAX Technical Details

• Programmable Controller for Timed or Demand Dosing Applications
• Built-In Programming Keys Allow Reprogramming in the Field without a Portable Computer
• Totalized and Resettable Data for:– Elapsed Pump Runtimes– Pump Cycle Counts– Low-and High-Level Alarms– Overrides (intimed-dose mode)– Power Failures
• Float Status Screen with Error Notification and Float Position Indication
• Voltage Rated: 120 and 240 VAC
• Motor Contactors: 240 VAC/16 FLA/3 HP
• Hand-Off-Auto Switch
• 10A Control Breaker
• 2 - 20A Pump Breakers
• Audible Alarm: 95 dB at 24", Warble Tone Sound
• Visual Alarm: 7/8" Diameter Red Lens, "Push-To-Silence", LED Light
• Enclosure: 11.5"H x 9.5"W x 5.4"D, NEMA 4X, UV-Resistant Fiberglass, Stainless Steel Latch and Hinge

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Orenco MVPDAX Control Panel Product Resources

Brochure
Orenco MVP-DAX Product Sheet: APS-CP-MVP-2

Orenco MVP-DAX Technical Data Sheet: NTD-CP-MVP-2

Installation and Operation Manuals
Orenco MVP-DAX RO Installation Manual Document List: EIN-CP-DAX-548

Orenco MVP-DAX RO Installation Instructions: EIN-CP-GEN-1

Orenco MVP-DAX2 RO Panel Wiring Diagram: EDW-WD-DAX-96

Orenco MVP-DAX2 RO Float Arrangement Diagram: EDW-FA-DAX-15

Orenco MVP-DAX RO Operation Guide: EIN-CP-OP-85

Orenco MVP-DAX RO Setting Instructions: EIN-CP-SET-138

Orenco MVP Contract Adjustment and Time and Date Settings: EIN-CP-SET-111-3

Wiring Diagrams
Orenco MVP-DAX2 DM Panel Wiring Diagram: EDW-FA-DAX-143

Orenco MVP-DAX2 DM SA Panel Wiring Diagram: EDW-WD-DAX-161

Orenco MVP-DAX 2DM CS Panel Wiring Diagram: EDW-WD-DAX-156

Orenco MVP-DAX2 RO CS SA Panel Wiring Diagram: EDW-WD-DAX-119

Orenco MVP-DAX2 PT RO CS Panel Wiring Diagram: EDW-WD-DAX-101

Orenco MVP-DAX2 PT RO CS Panel Wiring Diagram: EDW-WD-DAX-94

Orenco MVP-DAX2 PT RO Panel Wiring Diagram: EDW-WD-DAX-83

Float Arrangement Diagrams
Orenco MVP-DAX2IR Float Arrangement Timed Dose: EDW-FA-DAX-536

Orenco MVP-DAX2 IR Float Arrangement Demand Dose: EDW-FA-DAX-535

Orenco MVP-DAX2 IR Float Arrangement: EDW-FA-DAX-537

Orenco MVP-DAX2 DM Demand Dose Float Arrangement Diagram: EDW-FA-DAX-25

Orenco MVP-DAX2 DM Time Dose Float Arrangement Diagram: EDW-FA-DAX-26

Orenco MVP-DAX2 DM Float Arrangement Diagram: EDW-FA-DAX-27

Orenco MVP-DAX RO Float Arrangement Diagram: EDW-FA-DAX-15

Splice Box Wiring Diagrams

Orenco MVP-DAX Control Panel Splice Box Wiring Diagram: EDW-SB-DAX-89

Orenco MVP-DAX Control Panel Splice Box Wiring Diagram: EDW-SB-DAX-91

Orenco MVP-DAX Control Panel Splice Box Wiring Diagram: EDW-SB-DAX-94

Orenco MVP-DAX Control Panel Splice Box Wiring Diagram: EDW-SB-DAX-95

Orenco MVP-DAX Control Panel Splice Box Wiring Diagram: EDW-SB-DAX-96

Orenco MVP-DAX Control Panel Splice Box Wiring Diagram: EDW-SB-DAX-108

Orenco MVP-DAX Control Panel Splice Box Wiring Diagram: EDW-SB-DAX-111

Orenco MVP-DAX Control Panel Splice Box Wiring Diagram: EDW-SB-DAX-112

Orenco MVP-DAX Control Panel Splice Box Wiring Diagram: EDW-SB-DAX-113
