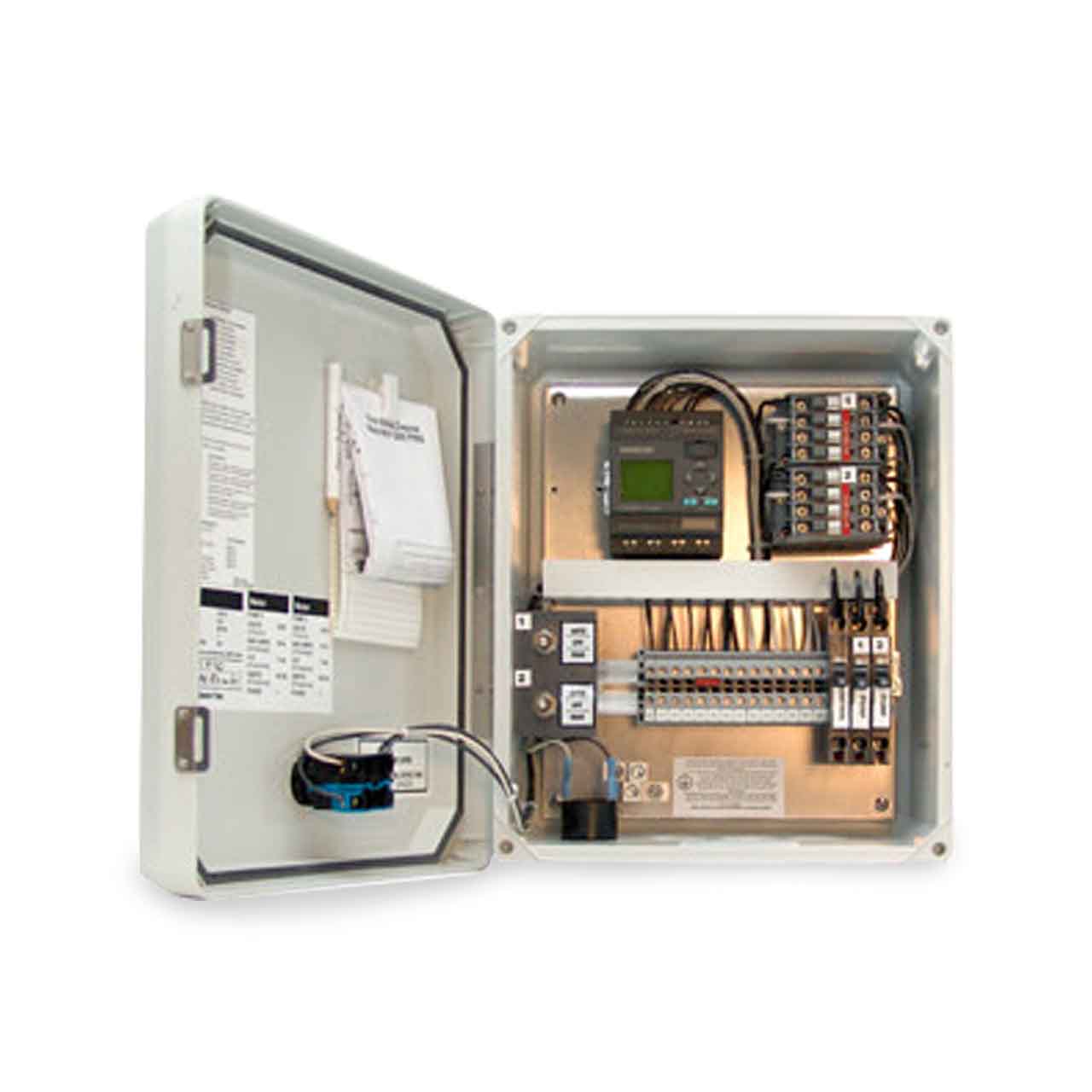

Orenco MVPDAX1ROHT Duplex Control Panel 120V RO HT

Orenco MVPDAX1ROHT Duplex Control Panel 120V RO HT

Usually ships within 6 weeks

SKU : ONCMVPDAX1ROHT

In Stock Quantity:0

:
Brand : Orenco Systems, Inc.
Shipping calculated at checkout.

Description



See Replacement: Orenco MVPDAX1DM Dual Mode 120V 1PH Duplex Control Panel

The MVP-Duplex control panel has a dual-mode feature, making it ideal for both timed- and demand-dosing in two-pump alternating systems for onsite wastewater and water treatment systems. All MVPs include an easy-to-use, programmable logic unit that incorporates many timing and logic functions, such as multiple timing intervals to adjust for changing flow conditions and built-in elapsed time meters and cycle counters.

Orenco MVPDAX Typical Application

  • Residential and Light Commercial Sump, Septic Tank Effluent, and Raw Sewage Pumping Applications.

Specifications

Orenco MVPDAX Technical Details

  • Programmable Controller for Timed or Demand Dosing Applications
  • Built-In Programming Keys Allow Reprogramming in the Field Without a Portable Computer
  • Totalized and Resettable Data for:– Elapsed Pump Runtimes– Pump Cycle Counts– Low-and High-Level Alarms– Overrides (intimed-dose mode)– Power Failures
  • Float Status Screen with Error Notification and Float Position Indication
  • Voltage Rated: 120 VAC
  • Motor Contactors: 120 VAC/16 FLA/1 HP
  • Hand-Off-Auto Switch
  • 10A Control Breaker
  • 2 - 20A Pump Breakers
  • Audible Alarm: 95 dB at 24", Warble Tone Sound
  • Visual Alarm: 7/8" Diameter Red Lens, "Push-To-Silence", LED Light
  • Enclosure: 11.5"H x 9.5"W x 5.4"D, NEMA 4X, UV-Resistant Fiberglass, Stainless Steel Latch and Hinge
  • Additional Features
    • RO - Redundant Off/Low Level Alarm
    • HT - Anti-Condensation Heater. Self-Adjusting: Radiates Additional Wattage as Temperature Drops.


WARNING Cancer and Reproductive Harm - www.P65Warnings.ca.gov WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Resources

Orenco MVPDAX Control Panel Product Resources


Brochure
Orenco MVP-DAX Product Sheet: APS-CP-MVP-2

Orenco MVP-DAX Technical Data Sheet: NTD-CP-MVP-2

Installation and Operation Manuals
Orenco MVP-DAX RO Installation Manual Document List: EIN-CP-DAX-547

Orenco MVP-DAX PT RO Installation Instructions: EIN-CP-GEN-1

Orenco MVP-DAX1 RO Panel Wiring Diagram: EDW-WD-DAX-95

Orenco MVP-DAX RO Float Arrangement Diagram: EDW-FA-DAX-15

Orenco MVP-DAX RO Operation Guide: EIN-CP-OP-85

Orenco MVP-DAX RO Setting Instructions: EIN-CP-SET-138

Orenco MVP Contract Adjustment and Time and Date Settings: EIN-CP-SET-111-3

Wiring Diagrams
Orenco MVP-DAX1 PT RO CS Panel Wiring Diagram: EDW-FA-DAX-93

Orenco MVP-DAX1 PT RO SA Panel Wiring Diagram: EDW-FA-DAX-100

Orenco MVP-DAX1 RO CS Panel Wiring Diagram: EDW-FA-DAX-106

Orenco MVP-DAX1 RO CS SA Panel Wiring Diagram: EDW-FA-DAX-118

Orenco MVP-DAX1 RO SA Panel Wiring Diagram: EDW-FA-DAX-120

Splice Box Wiring Diagrams
Orenco MVP-DAX Control Panel Splice Box Wiring Diagram: EDW-SB-DAX-106

Orenco MVP-DAX Control Panel Splice Box Wiring Diagram: EDW-SB-DAX-107

Orenco MVP-DAX Control Panel Splice Box Wiring Diagram: EDW-SB-DAX-108

Orenco MVP-DAX Control Panel Splice Box Wiring Diagram: EDW-SB-DAX-109

Orenco MVP-DAX Control Panel Splice Box Wiring Diagram: EDW-SB-DAX-110
