See Replacement: Orenco MVPDAX1DM Dual Mode 120V 1PH Duplex Control Panel

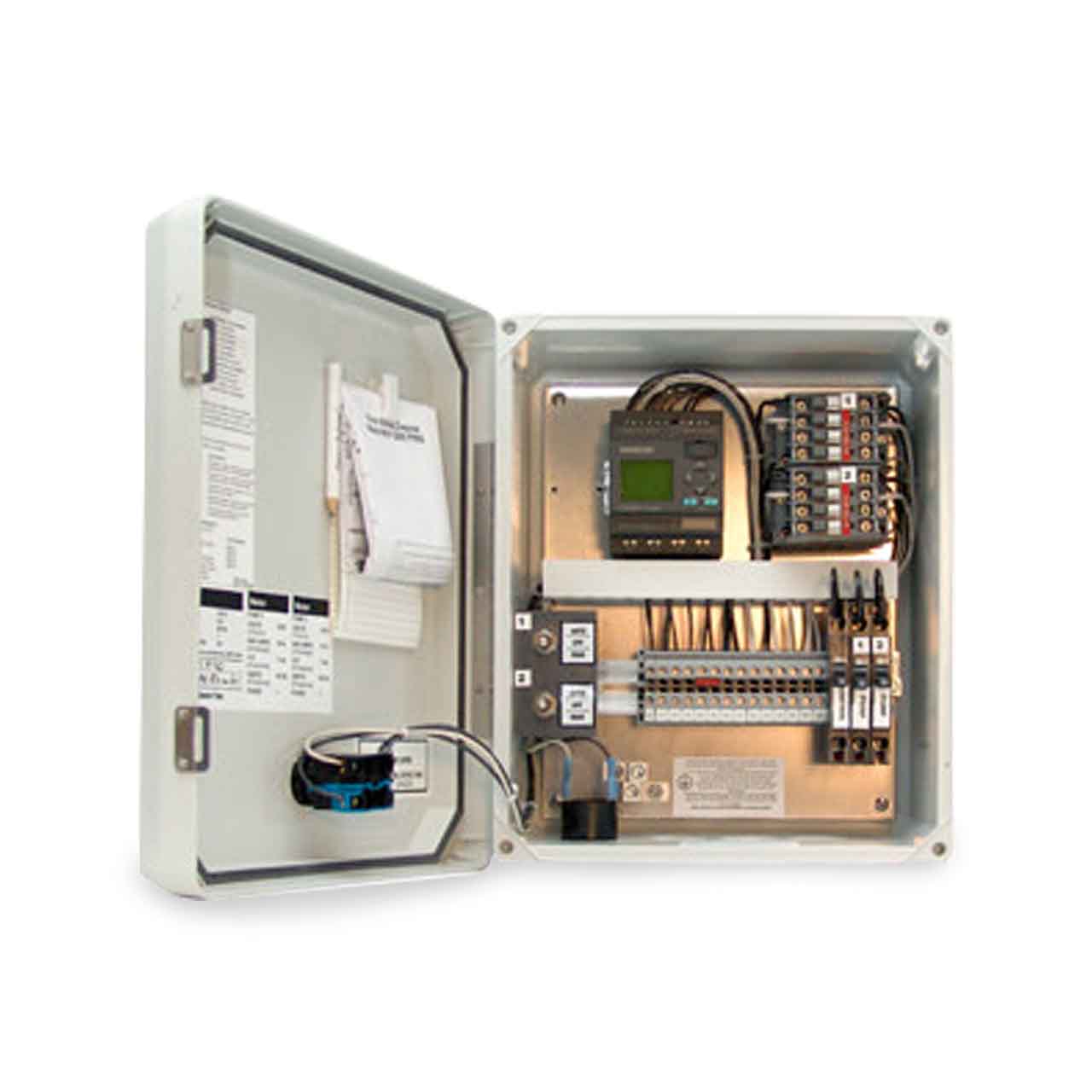

The MVP-Duplex control panel has a dual-mode feature, making it ideal for both timed- and demand-dosing in two-pump alternating systems for onsite wastewater and water treatment systems. All MVPs include an easy-to-use, programmable logic unit that incorporates many timing and logic functions, such as multiple timing intervals to adjust for changing flow conditions and built-in elapsed time meters and cycle counters.

Orenco MVPDAX Typical Applicaion

• Residential and Light Commercial Sump, Septic Tank Effluent, and Raw Sewage Pumping Applicatons.

Orenco MVPDAX Technical Details

• Programmable Controller for Timed or Demand Dosing Applications
• Built-In Programming Keys Allow Reprogramming in the Field without a Portable Computer
• Totalized and Resettable Data for:– Elapsed Pump Runtimes– Pump Cycle Counts– Low-and High-Level Alarms– Overrides (intimed-dose mode)– Power Failures
• Float Status Screen with Error Notification and Float Position Indication
• Voltage Rated: 120 VAC
• Motor Contactors: 120 VAC/16 FLA/1 HP
• Hand-Off-Auto Switch
• 10A Control Breaker
• 2 - 20A Pump Breakers
• Audible Alarm: 95 dB at 24", Warble Tone Sound
• Visual Alarm: 7/8" Diameter Red Lens, "Push-To-Silence", LED light
• Enclosure: 11.5"H x 9.5"W x 5.4"D, NEMA 4X, UV-Resistant Fiberglass, Stainless Steel Latch and Hinge
• Additional Features
• PT - Programmable Timer - for Timed Dosing Applications
• RO - Redundant Off/Low Level Alarm
• HT - Anti-Condensation Heater. Self-Adjusting: Radiates Additional Wattage as Temperature Drops.

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Orenco MVPDAX Control Panel Product Resources

Brochure
Orenco MVP-DAX Product Sheet: APS-CP-MVP-2

Orenco MVP-DAX Technical Data Sheet: NTD-CP-MVP-2

Installation and Operation Manuals
Orenco MVP-DAX PT RO Installation Manual Document List: EIN-CP-DAX-514

Orenco MVP-DAX PT RO Installation Instructions: EIN-CP-GEN-1

Orenco MVP-DAX1 PT RO Panel Wiring Diagram: EDW-WD-DAX-82

Orenco MVP-DAX PT RO Float Arrangement Diagram: EDW-FA-DAX-13

Orenco MVP-DAX PT RO Float Arrangement Diagram: EDW-FA-DAX-14

Orenco MVP-DAX PT RO Operation Guide: EIN-CP-OP-4

Orenco MVP-DAX PT RO Setting Instructions: EIN-CP-SET-9

Orenco MVP Contract Adjustment and Time and Date Settings: EIN-CP-SET-111-3

Wiring Diagrams
Orenco MVP-DAX1 PT RO CS Panel Wiring Diagram: EDW-FA-DAX-93

Orenco MVP-DAX1 PT RO SA Panel Wiring Diagram: EDW-FA-DAX-100

Orenco MVP-DAX1 RO CS Panel Wiring Diagram: EDW-FA-DAX-106

Orenco MVP-DAX1 RO CS SA Panel Wiring Diagram: EDW-FA-DAX-118

Orenco MVP-DAX1 RO SA Panel Wiring Diagram: EDW-FA-DAX-120

Splice Box Wiring Diagrams
Orenco MVP-DAX Control Panel Splice Box Wiring Diagram: EDW-SB-DAX-94

Orenco MVP-DAX Control Panel Splice Box Wiring Diagramt: EDW-SB-DAX-95

Orenco MVP-DAX Control Panel Splice Box Wiring Diagram: EDW-SB-DAX-96

Orenco MVP-DAX Control Panel Splice Box Wiring Diagram: EDW-SB-DAX-89

Orenco MVP-DAX Control Panel Splice Box Wiring Diagram: EDW-SB-DAX-90

Orenco MVP-DAX Control Panel Splice Box Wiring Diagram: EDW-SB-DAX-91

Orenco MVP-DAX Control Panel Splice Box Wiring Diagram: EDW-SB-DAX-111

Orenco MVP-DAX Control Panel Splice Box Wiring Diagram: EDW-SB-DAX-112

Orenco MVP-DAX Control Panel Splice Box Wiring Diagram: EDW-SB-DAX-113

Orenco MVP-DAX Control Panel Splice Box Wiring Diagram: EDW-SB-DAX-103

Orenco MVP-DAX Control Panel Splice Box Wiring Diagram: EDW-SB-DAX-104

Orenco MVP-DAX Control Panel Splice Box Wiring Diagram: EDW-SB-DAX-105
