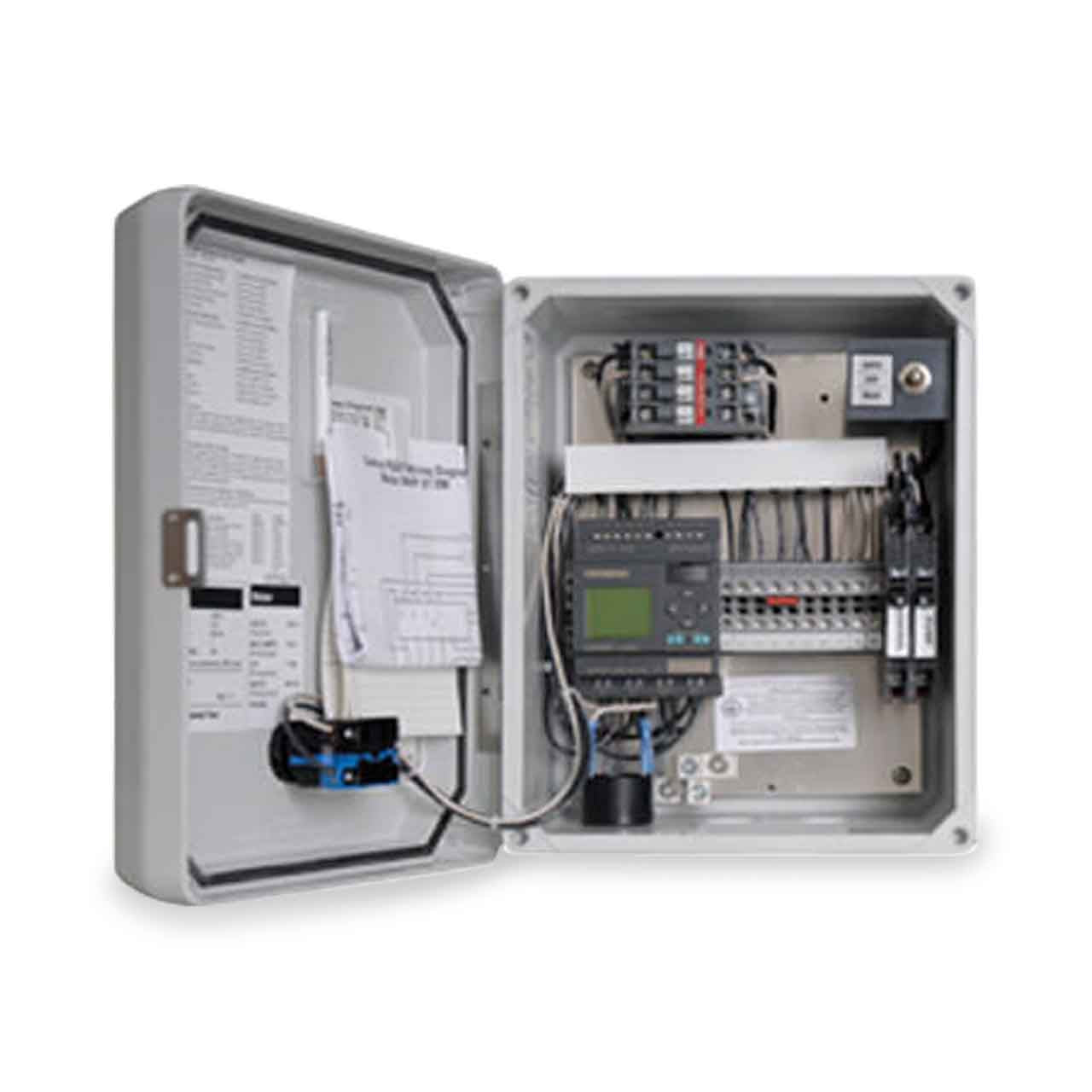

MVP simplex control panels are digital, programmable panels used to control single pumps and provide alarm functions in onsite septic systems and effluent pumping systems. They include easy-to-use, programmable logic units that incorporate multiple built-in timing and logic functions, including multiple timer intervals to adjust for changing flow conditions. MVP panels offer several standard functions, including elapsed time meters, counters, digital indication of float switch status, different alarm/light signals for varying alarm conditions, and the ability to use one type of float switch for all functions. Dual-mode MVP simplex control panels can be configured in the field for demand-dose or timed-dose applications.

Orenco MVP Series Simplex Control Panel Typical Application

• Residential and Light Commercial Sump, Septic Tank Effluent, and Raw Sewage Pumping Applications.

Orenco MVP Series Control Panel Features and Benefits

• 120-VAC Controls Circuit Breaker
• 120- or 120/240-VAC Pump Circuit Breaker
• Motor-Start Contactors for Pump Circuits
• Automatic/Off/Manual (Auto/Off/Man) Toggle Switch
• 7/8-in (22-mm) Red Visible Alarm
• 95 dB Audible Alarm
• Automatic Alarm Silence Reset
• Built-In Elapsed Time Meter
• Built-In Event Counter
• Type 4X(IP 66) Rated Enclosure
• Mechanical or Mercury Float Switches Ordered Separately

Orenco MVP Series Simplex Control Panel Optional Features

HT - Heater - Anti-condensation heater; self-adjusting: radiates additional wattage as temperature drops

PRL - Pump Run Light - 7/8" green lens. NEMA 4, 1 Watt bulb, 120 VAC

SA - Surge Arrestor - Status light on unit; protects incoming power supply from electrical surges

IR - Intrinsically Safe Control Relays - Listed per UL 698A, for Class 1 Div. 1, groups A, B, C, D hazardous locations (requires larger enclosure)

PT - Programmable Timer - multiple built-in timing and logic functions

ETM - Elapsed Time Meter - Tracks and compiles total pump run time

CT - Event Counter - Tracks and compiles pump events

RO - Redundant Off - DIN rail mount; provides a secondary off; sounds alarm upon low level condition

Orenco MVP Series Simplex Control Panel Technical Details

• Hand-Off-Auto Switch
• Motor Start Contactor
• Toggle Switch (HOA)
• Control Breaker 10A 120V Single Pole
• Pump Breaker 20A Single Pole 120V, Double Pole 240V
• Audible Alarm: 95 dB at 24", Warble Tone Sound
• Visual Alarm: 7/8" Diameter Red Lens, "Push-To-Silence", LED Light
• Enclosure: 9.5"H x 7.3"W x 5"D, NEMA 4X, UV-Resistant Fiberglass, Stainless Steel Latch and Hinge

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Orenco MVP Series Simplex Control Panel Product Resources

Brochure
Orenco MVP Series Control Panel Technical Data Sheet: NTD-CP-MVP-1

Installation and Operation Manuals
Orenco MVP-S Installation Manual Document List: EIN-CP-S-957

Orenco MVP-S Installation Instructions: EIN-CP-GEN-1

Orenco MVP-S Panel Wiring Diagram: EDW-WD-S-221

Orenco MVP-S Float Arrangement Diagram - Timed: EDW-FA-S-24

Orenco MVP-S Float Arrangement Diagram - Demand: EDW-FA-S-25

Orenco MVP-S Operation Guide: EIN-CP-OP-2036

Orenco MVP-S Setting Instructions: EIN-CP-SET-2199

Orenco MVP Contract Adjustment and Time and Date Settings: EIN-CP-SET-111

Wiring Diagrams
Orenco MVP S2 Simplex Control Panel Wiring Diagram: EDW-WD-S-94

Orenco MVP S2 Simplex Control Panel Wiring Diagram: EDW-WD-S-134

Orenco MVP S2 Simplex Control Panel Wiring Diagram: EDW-WD-S-136

Orenco MVP S2 Simplex Control Panel Wiring Diagram: EDW-WD-S-147

Orenco MVP S2 Simplex Control Panel Wiring Diagram: EDW-WD-S-164

Orenco MVP S2 Simplex Control Panel Wiring Diagram: EDW-WD-S-201

Orenco MVP-S2-DM Control Panel Wiring Diagram - EDW-WD-S-222

Orenco MVP S2 Simplex Control Panel Wiring Diagram: EDW-WD-S-224

Orenco MVP S2 Simplex Control Panel Wiring Diagram: EDW-WD-S-226

Orenco MVP S2 Simplex Control Panel Wiring Diagram: EDW-WD-S-228

Orenco MVP S2 Simplex Control Panel Wiring Diagram: EDW-WD-S-230

Orenco MVP S2 Simplex Control Panel Wiring Diagram: EDW-WD-S-249

Orenco MVP S2 Simplex Control Panel Wiring Diagram: EDW-WD-S-493

Orenco MVP-S2-DM CS Control Panel Wiring Diagram - EDW-WD-S-497

Orenco MVP S2 Simplex Control Panel Wiring Diagram: EDW-WD-S-521

Orenco MVP S2 Simplex Control Panel Wiring Diagram: EDW-WD-S-529

Orenco MVP S2 Simplex Control Panel Wiring Diagram: EDW-WD-S-573
