Orenco BEP50TDDHTSA-SBX Biotube EasyPak Applications

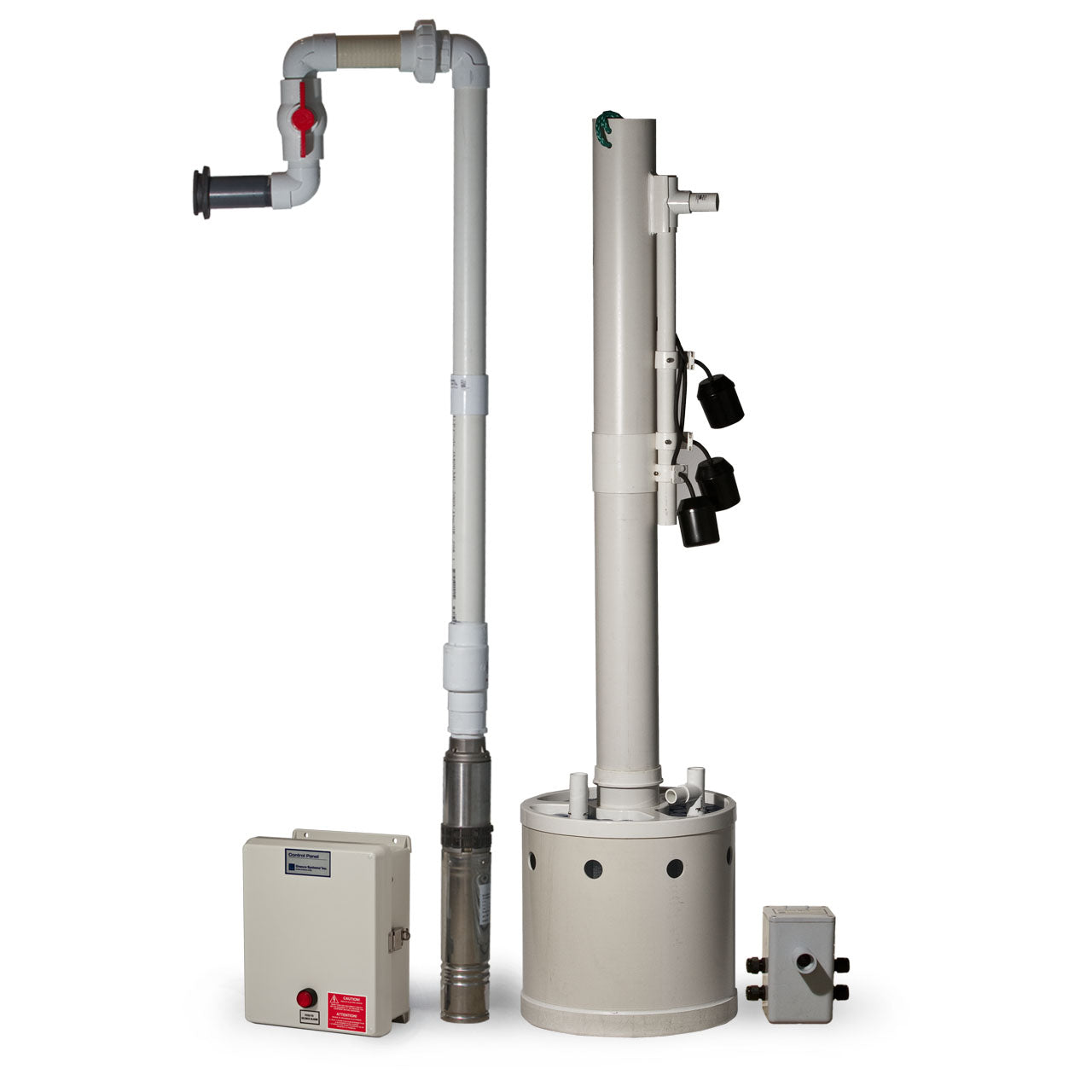

Orenco’s Biotube® EasyPak™ Pump Package is the first pump package designed specifically for use in pump tanks to filter and pump effluent to dispersal. It includes the following components:

• EasyPak™ Pump Vault
• 4-inch (100-mm) Turbine Effluent Pump
• Biotube® Filter Cartridges (3)
• Flow Inducer
• Float Switches With Sliding Collars
• Discharge Plumbing Assembly
• Orenco SBEX4 External Splice Box
• Orenco MVPS1DMHTSA Control Panel (Timed Dosing)

The kit saves time for the installer and protects the drainfield from clogging. Choose a system for demand dosing (to a gravity drainfield) or timed dosing (to a pressurized drainfield or mound).

Orenco BEP50TDDHTSA-SBX Biotube EasyPak Technical Details

• A Complete System in One Box
• 14 sq ft Biotube Effluent Filter
• Orenco MVPS1DMHTSA Control Panel With MF3P-45FS Liquid Level Switch Assembly
• Five-Year Warranty on Pump or Retrofit Liquid End From Date of Manufacture Against Defects in Materials or Workmanship
• 50 GPM Nominal Flow (see pump curve)
• 0.5 HP, 120 VAC, Single Phase, 12.1 FLA
• 2" FPT Discharge
• Rated 300 Cycles Per Day
• 24" Minimum Liquid Level

Orenco Biotube EasyPak 30 and 50 GPM Pump Curves

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Orenco Biotube EasyPak Product Resources

Orenco EasyPak Pump Package Product Data Sheet: APS-PTV-1

Orenco EasyPak Pump Package Technical Data Sheet: NTD-BEP-1

Orenco EasyPak Design Criteria: NDA-BEP-1

Orenco EasyPak Pump Package Installation/O&M Instructions: NIN-BEP-1
