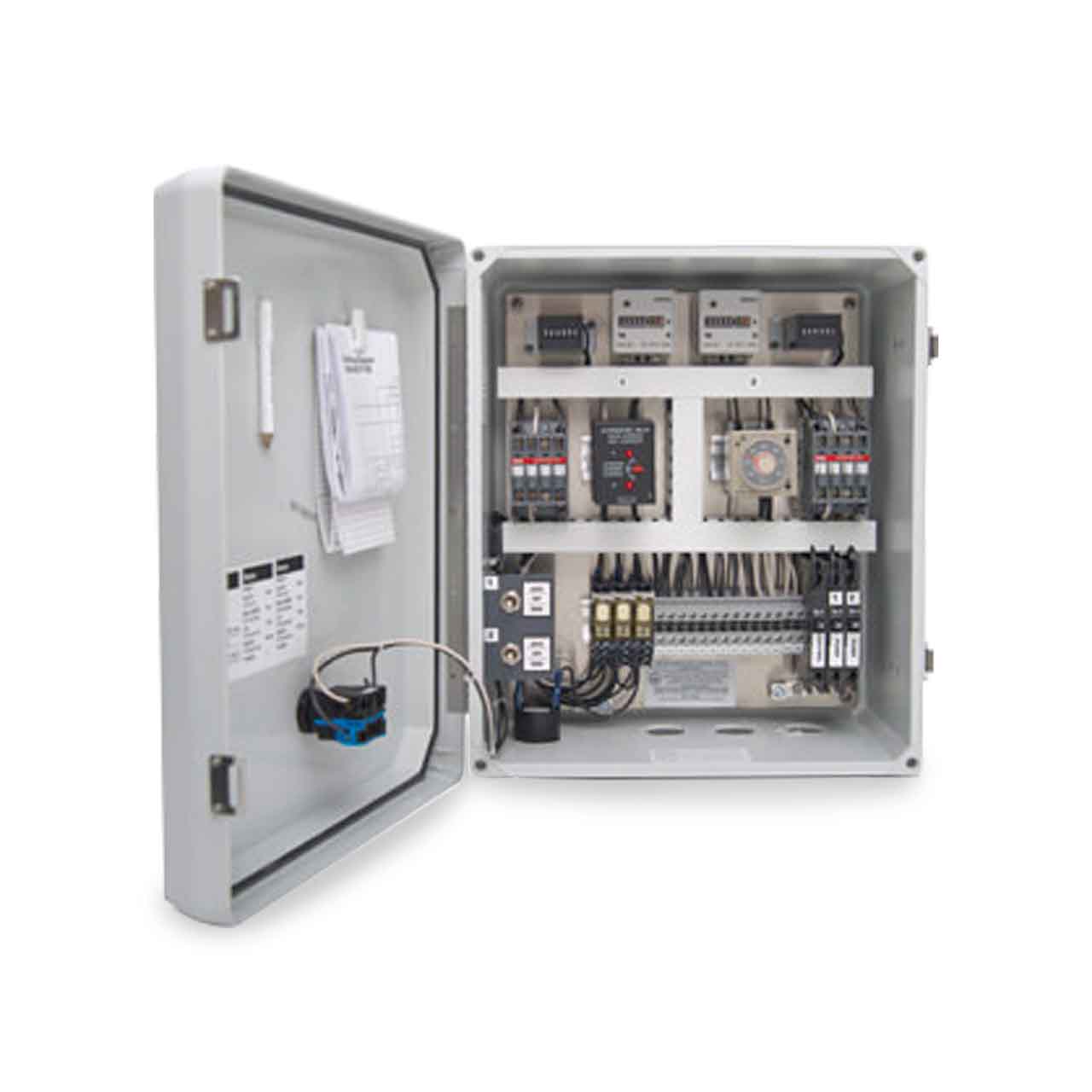

Orenco DAX2PTRO Duplex Control Panel 240V 1PH PT RO
Orenco DAX2PTRO Duplex Control Panel 240V 1PH PT RO
SKU : ONCDAX2PTRO
In Stock Quantity:0
:
Brand
:
Regular price
$1,508.21 USD
Shipping calculated at checkout.
Couldn't load pickup availability
Description
Description
Orenco Duplex Control Panels are specifically engineered for pressure sewer (STEP) systems and onsite septic treatment systems that require the use of two alternating pumps. Standard features include circuit breakers, an automatic/manual/off motor control toggle for each pump, an audio/visual high level alarm, reset, and a duplex alternator. Orenco Panels are designed for use with mechanical and/or mercury float switches. Listed per UL 508; a UL-Canada listing is available.
Orenco DAX Series Duplex Control Panel Typical Application
- Dual pumps, alarms, and other equipment as specified in pressure sewers and onsite septic systems.
- Sewage lift stations
- Can be configured for recirculating systems see Document EDW-FA-DAX-5 below
Specifications
Specifications
Orenco DAX Series Duplex Control Panel Technical Details
- Panel Rating: 240 VAC, 14 FLA, 2 HP
- Hand-Off-Auto switch
- 10A Control Breaker (Requires 120 VAC control power)
- 2 - 20A 2 Pole Pump Breakers
- See Related Products Tab for typical float switch configurations
- Audible Alarm: 95 dB at 24", warble tone sound
- Visual Alarm: 7/8" diameter red lens, "Push-To-Silence", LED light
- Duplex Alternator: 120 VAC, cross wired style for independent lag pump function. Selector switch for locking one pump into lead position
- Enclosure: 15.5"H x 13.3"W x 6.7"D, NEMA 4X, UV-Resistant fiberglass, stainless steel latch and hinge
- Additional Features
- PT - Programmable Timer - for timed dosing applications
- RO - Redundant off/low level alarm
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Resources
Resources
Orenco DAX Series Duplex Control Panel Product Resources
Brochure
Orenco DAX Series Simplex Control Panel Technical Data Sheet: NTD-CP-DAX-1
Orenco DAX Series Simplex Control Panel Submittal Data Sheet: ESU-CP-DAX-1
Wiring Diagram
Orenco DAX2PTRO Series Simplex Control Panel Wiring Diagram: EDW-WD-DAX-8
Float Arrangement Diagrams
Orenco DAX Series Simplex Control Panel Float Arrangement Diagram: EDW-FA-DAX-4
Orenco DAX Series Simplex Control Panel Float Arrangement Diagram: EDW-FA-DAX-5
Splice Box Wiring Diagrams
Orenco DAX Series Simplex Control Panel Splice Box Wiring Diagram: EDW-SB-DAX-40
Orenco DAX Series Simplex Control Panel Splice Box Wiring Diagram: EDW-SB-DAX-41
Orenco DAX Series Simplex Control Panel Splice Box Wiring Diagram: EDW-SB-DAX-42
Orenco DAX Series Simplex Control Panel Splice Box Wiring Diagram: EDW-SB-DAX-43
Orenco DAX Series Simplex Control Panel Splice Box Wiring Diagram: EDW-SB-DAX-44
Orenco DAX Series Simplex Control Panel Splice Box Wiring Diagram: EDW-SB-DAX-45
Orenco DAX Series Simplex Control Panel Splice Box Wiring Diagram: EDW-SB-DAX-46
Orenco DAX Series Simplex Control Panel Splice Box Wiring Diagram: EDW-SB-DAX-47
Orenco DAX Series Simplex Control Panel Splice Box Wiring Diagram: EDW-SB-DAX-48
Orenco DAX Series Simplex Control Panel Splice Box Wiring Diagram: EDW-SB-DAX-49
Orenco DAX Series Simplex Control Panel Splice Box Wiring Diagram: EDW-SB-DAX-50
Orenco DAX Series Simplex Control Panel Splice Box Wiring Diagram: EDW-SB-DAX-51
Orenco DAX Series Simplex Control Panel Splice Box Wiring Diagram: EDW-SB-DAX-52
Orenco DAX Series Simplex Control Panel Splice Box Wiring Diagram: EDW-SB-DAX-53
Orenco DAX Series Simplex Control Panel Splice Box Wiring Diagram: EDW-SB-DAX-54
Orenco DAX Series Simplex Control Panel Splice Box Wiring Diagram: EDW-SB-DAX-55
Orenco DAX Series Simplex Control Panel Splice Box Wiring Diagram: EDW-SB-DAX-56
Warranty
Warranty
