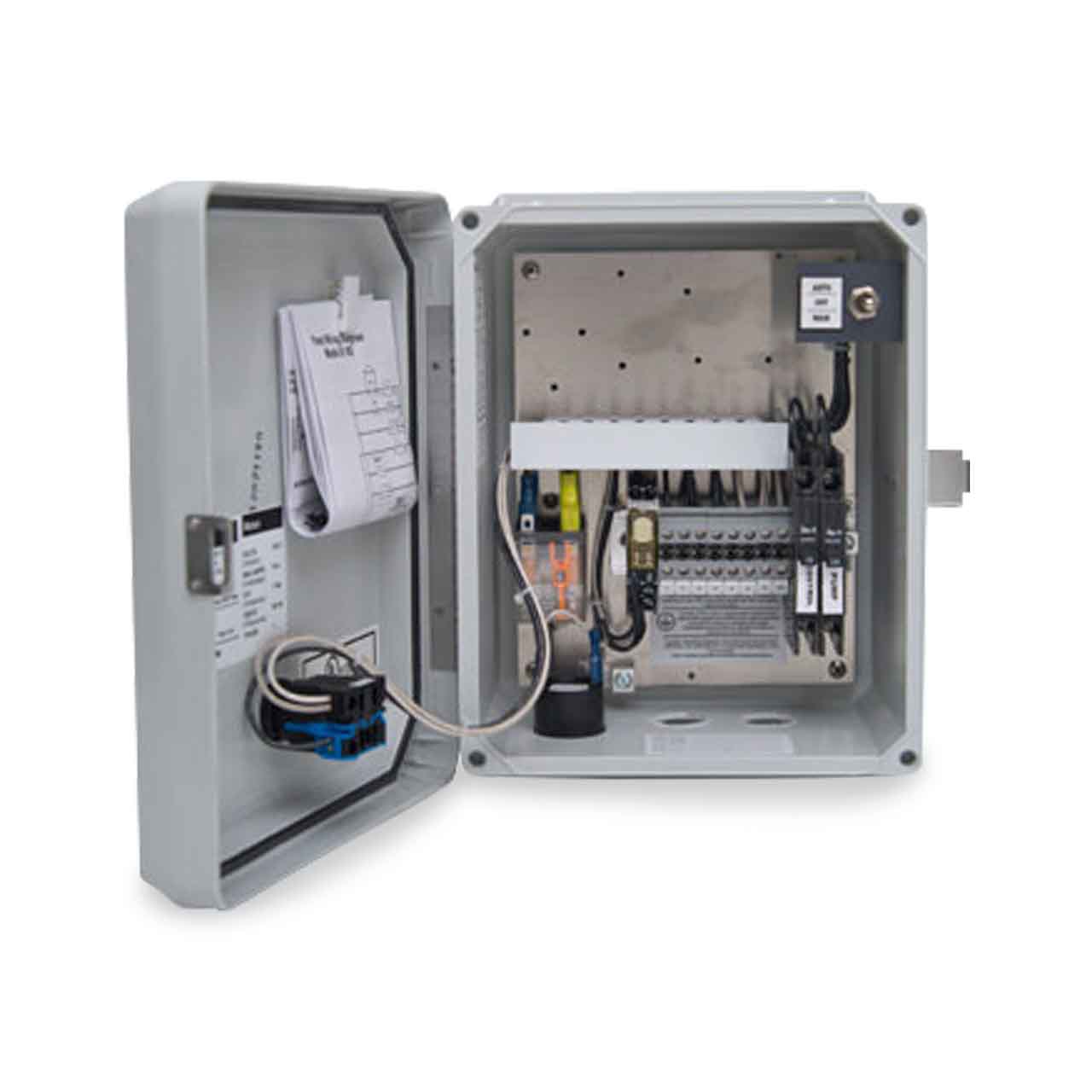

Orenco A2ROETM Simplex Control Panel 240V 1PH RO ETM
Orenco A2ROETM Simplex Control Panel 240V 1PH RO ETM
SKU : ONCA2ROETM
In Stock Quantity:0
:
Brand
:
Regular price
$613.34 USD
Shipping calculated at checkout.
Couldn't load pickup availability
Description
Description
Simplex control panels can be used for pressure sewer (STEP) systems, onsite treatment systems, and pump control into conventional gravity or pressurized drainfields. “A” series pump control panels are a low cost option for simplex pump and alarm system applications. These panels do not include a motor contactor, but switch the pump load directly through the liquid level control float.
Orenco A Series Simplex Control Panel Typical Application
- Residential and Light Commercial Sump, Septic Tank Effluent, and Raw Sewage Pumping Applications.
Specifications
Specifications
Orenco A Series Simplex Control Panel Technical Details
- Hand-Off-Auto Switch
- 10A Control Breaker (Requires 120 VAC control power)
- 16A (115V) or 10A (240V) Panel Rating
- Audible Alarm: 95 dB at 24", Warble Tone Sound
- Visual Alarm: 7/8" Diameter Red Lens, "Push-To-Silence", LED Light
- Enclosure: 9.5"H x 7.3"W x 5"D, NEMA 4X, UV-Resistant Fiberglass, Stainless Steel Latch and Hinge
- Additional Features
- RO - Redundant Pump Shut OFF Under Low Tank Level Conditions & Visual/Audible Alarm Activated
- ETM - Elapsed Pump-Run Time Meter
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Resources
Resources
Orenco A Series Simplex Control Panel Product Resources
Brochure
Orenco A Series Simplex Control Panel Submittal Data Sheet: ESU-CP-A-1
Orenco A Series Simplex Control Panel Technical Data Sheet: NTD-CP-A-1
Wiring Diagram
Orenco A2 RO Simplex Control Panel Wiring Diagram: EDW-WD-A-4
Float Arrangement Diagram
Orenco A RO Series Simplex Control Panel Float Arrangement
Diagram: EDW-FA-A-2
Splice Box Wiring Diagram
Orenco A RO Series Simplex Control Panel Splice Box Wiring Diagram: EDW-SB-A-4
