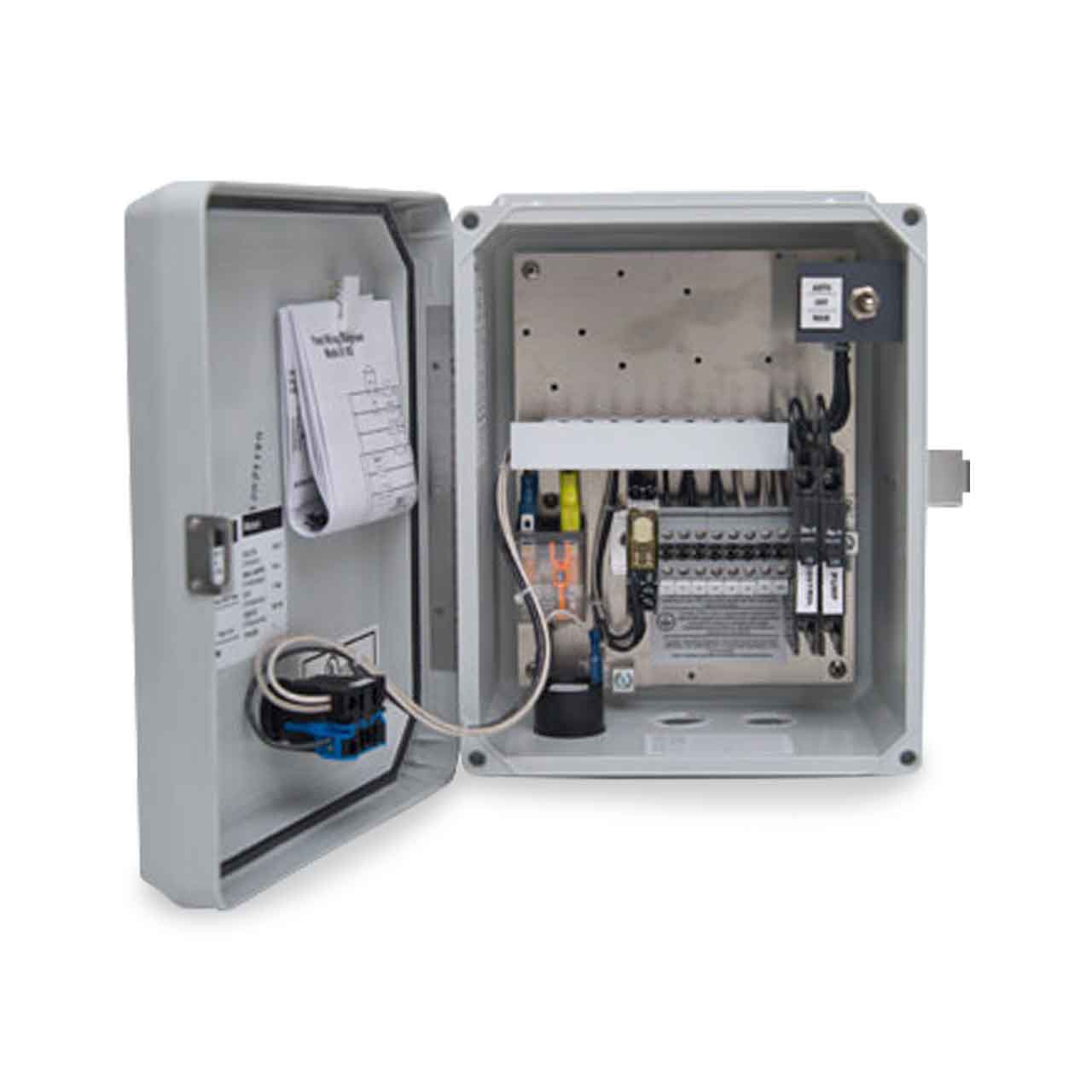

Orenco A1ETMCT Simplex Control Panel 120V 1PH ETM CT

Orenco A1ETMCT Simplex Control Panel 120V 1PH ETM CT

Usually ships within 1 week

SKU : ONCA1ETMCT

In Stock Quantity:0

:
Brand : Orenco Systems, Inc.
$573.50 USD
Shipping calculated at checkout.

Description

Simplex control panels can be used for pressure sewer (STEP) systems, onsite treatment systems, and pump control into conventional gravity or pressurized drainfields. “A” series pump control panels are a low cost option for simplex pump and alarm system applications. These panels do not include a motor contactor, but switch the pump load directly through the liquid level control float.

Orenco A Series Simplex Control Panel Typical Application

  • Residential and Light Commercial Sump, Septic Tank Effluent, and Raw Sewage Pumping Applications.

Specifications

Orenco A Series Simplex Control Panel Technical Details

  • Hand-Off-Auto Switch
  • 10A Control Breaker (Requires 120 VAC control power)
  • 10A (115V) or 16A (240V) Panel Rating
  • Audible Alarm: 95 dB at 24", Warble Tone Sound
  • Visual Alarm: 7/8" Diameter Red Lens, "Push-To-Silence", LED Light
  • Enclosure: 9.5"H x 7.3"W x 5"D, NEMA 4X, UV-Resistant Fiberglass, Stainless Steel Latch and Hinge
  • Additional Features
    • ETM - Elapsed Pump-Run Time Meter
    • CT - Pump Start Counter


WARNING Cancer and Reproductive Harm - www.P65Warnings.ca.gov WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Resources

Orenco A Series Simplex Control Panel Product Resources


Brochure
Orenco A Series Simplex Control Panel Submittal Data Sheet: ESU-CP-A-1

Orenco A Series Simplex Control Panel Technical Data Sheet: NTD-CP-A-1

Wiring Diagram
Orenco A1 Simplex Control Panel Wiring Diagram: EDW-WD-A-1

Float Arrangement Diagram
Orenco A Series Simplex Control Panel Float Arrangement Diagram: EDW-FA-A-1

Splice Box Wiring Diagrams
Orenco A Series Simplex Control Panel Splice Box Wiring Diagram: EDW-SB-A-1

Orenco A Series Simplex Control Panel Splice Box Wiring Diagram: EDW-SB-A-3
