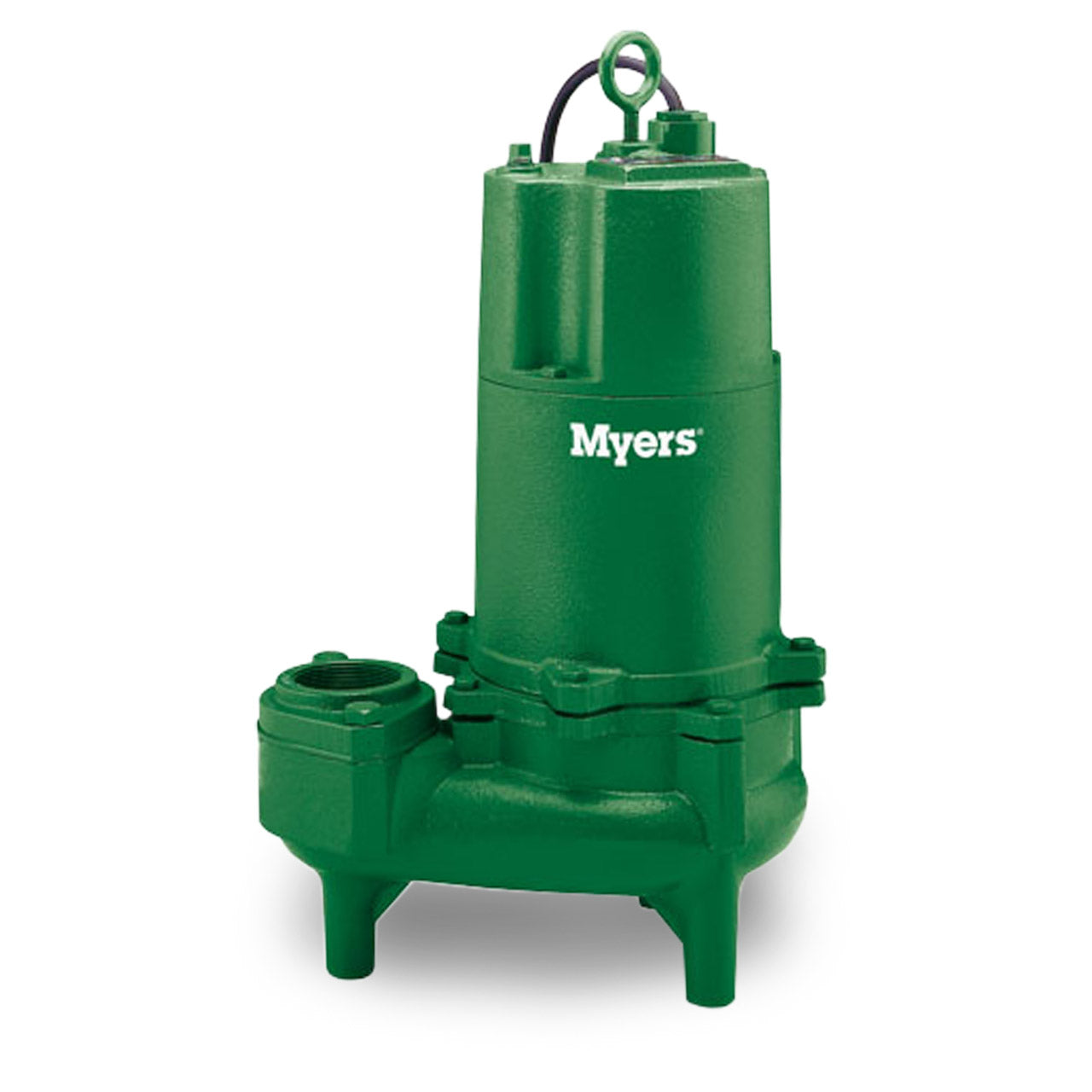

Myers WHR7-03 Sewage Pump 0.75 HP 200V 3 PH Manual 20' Cord
Myers WHR7-03 Sewage Pump 0.75 HP 200V 3 PH Manual 20' Cord
SKU : MYRWHR703
In Stock Quantity:0
:
Brand
:
Shipping calculated at checkout.
Couldn't load pickup availability
Description
Description
Discontinued - WHR Series
Myers WHR Series Sewage Pump Description
The Myers® WHR series 3/4-HP sewage pumps feature all cast iron construction to withstand the most extreme conditions. Available in single seal, and double seal models for additional protection against water leakage. The enclosed two-vane impeller provides high-efficiency pumping and will handle stringy, trashy 2" solids without clogging. Designed for sewage and effluent and can be used for applications requiring high heads.
Myers WHR Series Sewage Pump Typical Applications
- Residential and Commercial Sewage
- High Capacity Sump
- Effluent
- Domestic Wastewater
- Septic Pumping Applications
Myers WHR Series Sewage Pump Features
- Versatile Applications Ideal for Residential and Commercial Sewage, Domestic Wastewater and Septic Systems.
- Non-Clog Design Recessed Impeller Provides Maximum Efficiency and Eliminates Jamming Between Volute Case - Cast Iron Construction.
- Cool Running Durable, Oil-Filled Motor for Continuous Bearing Lubrication and Maximum Heat Dissipation.
- Powerful Starts High-Torque, Permanent Split Capacitor (PSC) Motor; No Starting Switches or Relays to Wear Out.
- Thermal Protection Heat Sensor Overload Protection with Automatic Reset when Motor Cools to a Safe Operating Temperature.
- High-Capacity Handling Passes Full 2" Solids.
Specifications
Specifications
Myers WHR7-03 Series Sewage Pump Specifications
- VOLTAGE: 3ø, 200V, 60Hz
- HORSEPOWER: 0.75 HP
- AMP DRAW (full load): 5.1
- MOTOR TYPE: Permanent Split Capacitor (PSC)
- MAXIMUM HEAD: up to 28'
- MAXIMUM CAPACITY: up to 150 GPM
- SWITCH TYPE: Manual
- MINIMUM SUMP DIAMETER: Simplex: 24” Duplex: 30”
- DISCHARGE PIPE SIZE: 2.0" NPT (3.0" optional)
- MAXIMUM SOLIDS HANDLING SIZE: 2.0"
- IMPELLER TYPE: Cast Iron, Vortex
- CORD LENGTH: 20'
- CORD SIZE: 16/4; Type: SJOW/SJOW-A
- BODY CONSTRUCTION: Cast Iron
- MAXIMUM LIQUID TEMPERATURE: 140°F (60°C)
Myers WHR Series Sewage Pump Performance Data
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Resources
Resources
Myers WHR Series Sewage Pump Product Resources
Download Myers WHR Series Specification Data
