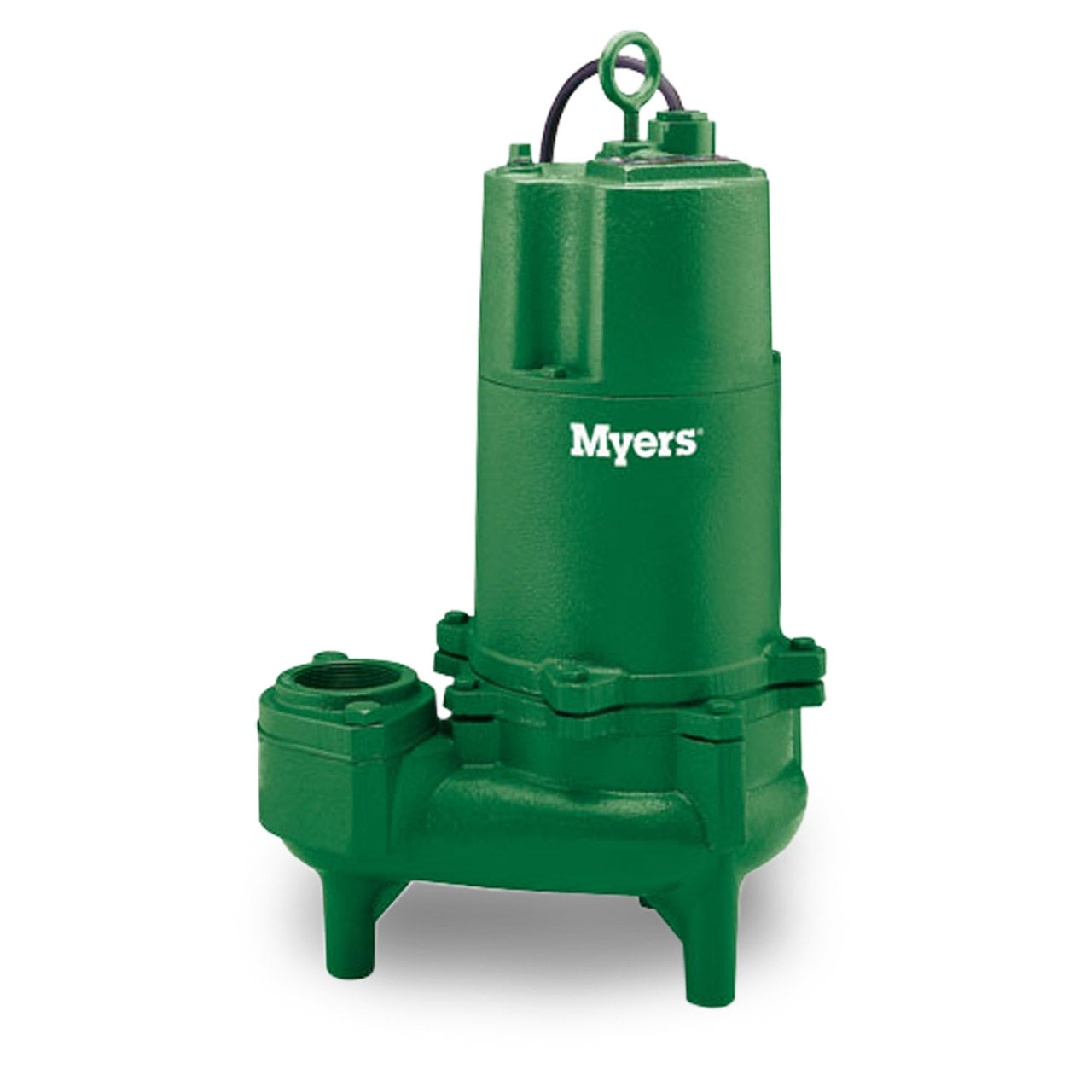

Myers WHR5P-1 Sewage Pump 0.5 HP 115V 1 PH Automatic 20' Cord

Myers WHR5P-1 Sewage Pump 0.5 HP 115V 1 PH Automatic 20' Cord

Usually ships within 2 weeks

SKU : MYRWHR5P1

In Stock Quantity:0

:
Brand : Myers
$1,814.40 USD
Shipping calculated at checkout.

Description


Myers WHR Series Sewage Pump Description

The Myers® WHR series sewage pumps feature all cast iron construction to withstand the most extreme conditions. Available in single seal, and double seal models for additional protection against water leakage. The enclosed two-vane impeller provides high-efficiency pumping and will handle stringy, trashy 2" solids without clogging. Designed for sewage and effluent and can be used for applications requiring high heads.

Myers WHR Series Sewage Pump Typical Applications

Residential and Commercial Sewage, Domestic Wastewater and Septic Systems

Myers WHR Series Sewage Pump Features

  • Non-Clog Design: Recessed Impeller Provides Maximum Efficiency and Eliminates Jamming Between Volute Case - Cast Iron Construction.
  • Leak Detection: Leak Probe Senses Water Leakage Past Seal (Dual Seal Motors Only).
  • Cool Running: Durable, Oil-Filled Motor for Continuous Bearing Lubrication and Maximum Heat Dissipation.
  • Powerful Starts: High-Torque, Permanent Split Capacitor (PSC) Motor; No Starting Switches or Relays to Wear Out.
  • Thermal Protection: Heat Sensor Overload Protection with Automatic Reset when Motor Cools to a Safe Operating Temperature.
  • High-Capacity Handling: Passes Full 2" Solids.

    Specifications

    Myers WHR5P-1 Series Sewage Pump Specifications

    • VOLTAGE: 1ø, 115V, 60Hz
    • HORSEPOWER: 0.5 HP
    • AMP DRAW (full load): 8.0
    • MOTOR TYPE: Permanent Split Capacitor (PSC)
    • MAXIMUM HEAD: up to 24'
    • MAXIMUM CAPACITY: up to 130 GPM
    • SWITCH TYPE: Mechanical Float w/Piggyback Plug
    • MINIMUM SUMP DIAMETER: Simplex: 24” Duplex: 30”
    • DISCHARGE PIPE SIZE: 2.0" NPT (3.0" optional)
    • MAXIMUM SOLIDS HANDLING SIZE: 2.0"
    • IMPELLER TYPE: Cast Iron, Vortex
    • CORD LENGTH: 20'
    • CORD SIZE: 16/3; Type: SJOW/SJOW-A
    • BODY CONSTRUCTION: Cast Iron
    • MAXIMUM LIQUID TEMPERATURE: 140°F (60°C)

    Myers WHR Series Sewage Pump Performance Data



    WARNING Cancer and Reproductive Harm - www.P65Warnings.ca.gov WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

    Resources

    Myers WHR Series Sewage Pump Product Resources


    Download Myers WHR Series Sewage Pump Specification Data

    Download Myers WHR Series Sewage Pump Installation & Service Manual

    Download Myers WHR Series Sewage Pump Parts Breakdown
