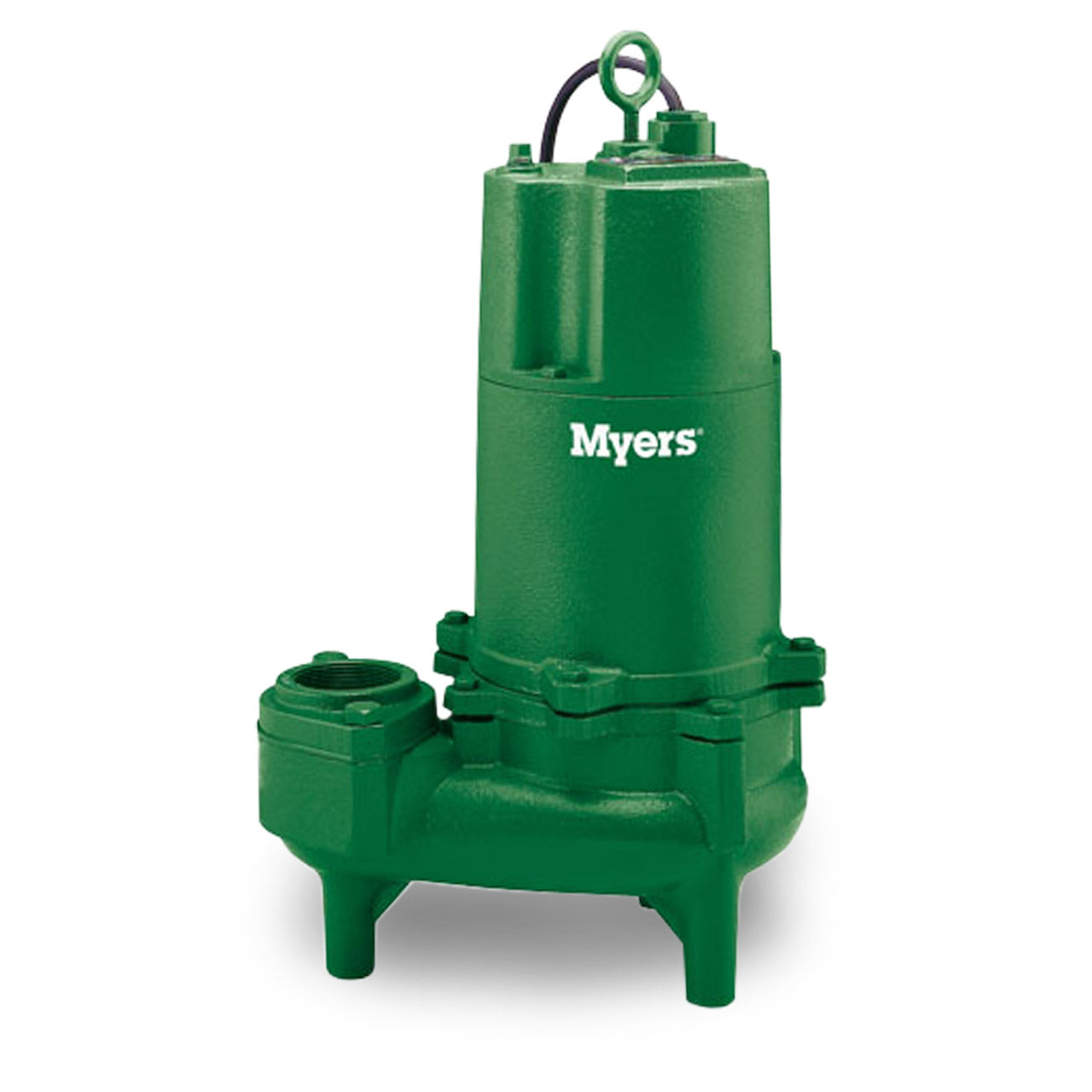

Myers WHR10P-2 Sewage Pump 1.0 HP 230V 1 PH Automatic 20' Cord
Myers WHR10P-2 Sewage Pump 1.0 HP 230V 1 PH Automatic 20' Cord
SKU : MYRWHR10P2
In Stock Quantity:0
:
Brand
:
Shipping calculated at checkout.
Couldn't load pickup availability
Description
Description
Myers WHR Series Pump Description
The WHR Series pumps are designed for use in sewage applications. WHR pumps will pass at full 2-inch sphere. The recessed vortex impeller provides an unobstructed passage in the volute case which allows these pumps to handle stringy, trashy solids without plugging the impeller. The vortex impeller also greatly extends the pumps’ bearing life. Available in double seal configuration for extended motor life.
Myers WHR Series Typical Applications
- Residential and Commercial Sewage
- High Capacity Sump
- Effluent
- Domestic Wastewater
- Septic Pumping Applications
Myers WHR Series Features
- Power range meets many applications
- Domestic wastewater and septic systems
- Light commercial sewage
- High-capacity fluid transfer
- Durable motor for long-lasting performance
- Oil-filled for cooler operation and constant bearing lubrication
- Single-phase PSC motors eliminate starting switches
- Recessed impeller increases bearing life
- Thermal overload protection with automatic reset
- Double seal and seal failure probe pump options available
- High head models available
- Piggy-backed mechanical float switch included
Specifications
Specifications
Myers WHR10P-2 Series Specifications
- BODY CONSTRUCTION: Cast Iron
- HORSEPOWER: 1.0 HP
- MAXIMUM HEAD: up to 33'
- MAXIMUM CAPACITY: up to 178 GPM
- MINIMUM SUMP DIAMETER: Simplex: 24" Duplex: 30"
- DISCHARGE PIPE SIZE: 2" or 3" NPT (Specify when Ordering)
- MAXIMUM SOLIDS HANDLING SIZE: 2"
- CORD LENGTH: 20'
- AMP DRAW (full load): 9.4
- VOLTAGE: 1ø, 230V, 60 Hz
- MAXIMUM LIQUID TEMPERATURE: 140°F (60C)
- IMPELLER: Cast Iron, Vortex
Myers WHR Series Performance Data
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Resources
Resources
Myers WHR Series Product Resources
Download Myers WHR Series Specification Data
