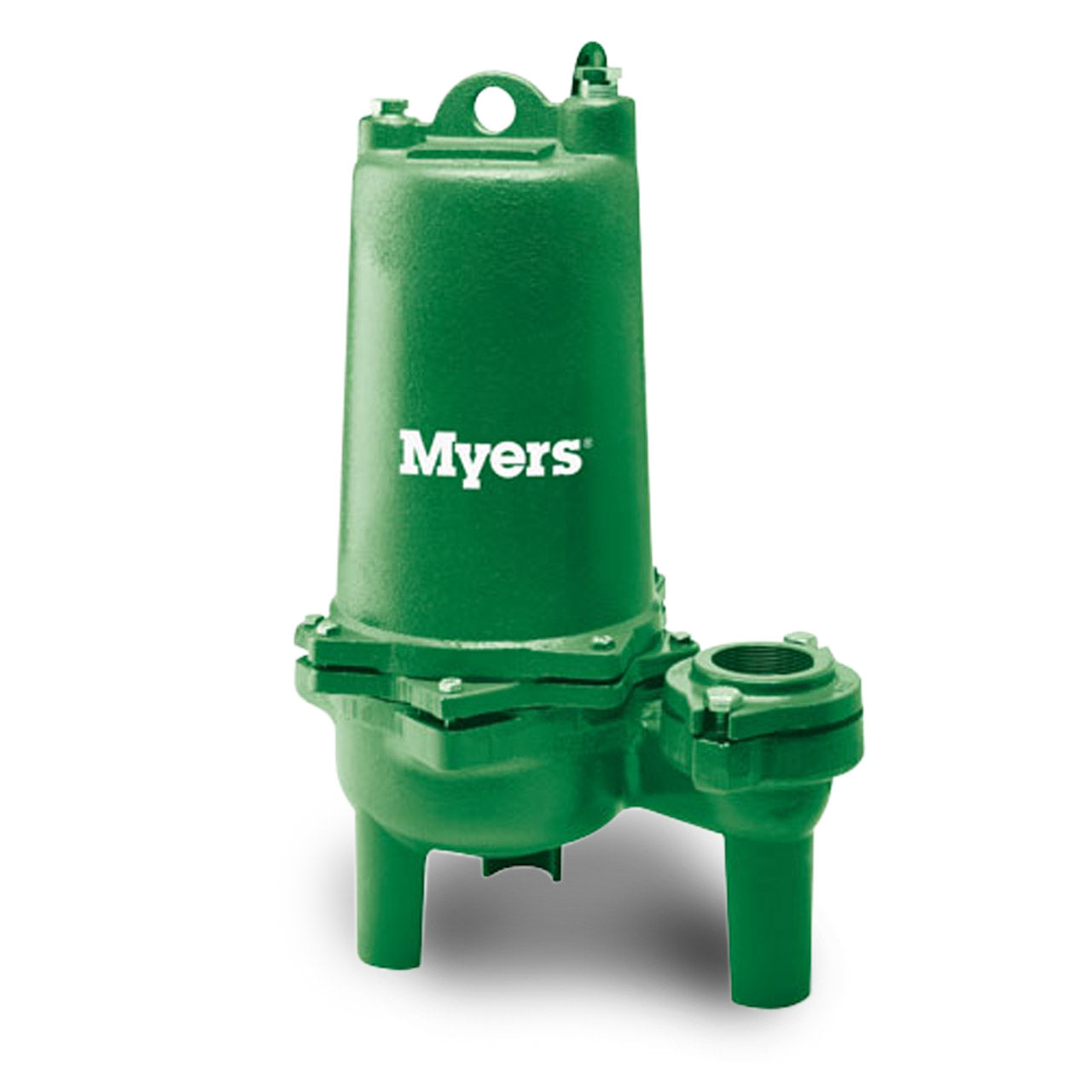

Myers WHRH Series High Head Sewage Pump Description

The Myers WHR5H - WHR20H Series Vortex Pumps are designed for use in light commercial sewage and effluent applications.

Recessed impeller is standard allowing the pump to handle stringy waste without plugging the impeller. The series passes 2 inch solids.

Myers WHRH Series High Head Sewage Pump Typical Applications

• Residential and Commercial Sewage
• High Capacity Sump
• Effluent
• Domestic Wastewater
• Septic Pumping Applications

Myers WHRH Series High Head Sewage Pump Features

• Tough Against Corrosion All Cast Iron Construction Resists the Most Extreme Corrosive Environments.
• Runs Cooler Oil-Filled Motor for Bearing Lubrication and Maximum Heat Dissipation.
• Flow to Meet Demand Higher Head Performance for Demanding Sewage and Effluent Applications.
• Powerful Starts High-Torque, Permanent Split Capacitor (PSC) Motor; No Starting Switches or Relays to Wear Out.
• Thermal Protection Single Phase Motors Have Heat Sensor Overload Protection with Automatic Reset When Motor Cools to a Safe Operating Temperature.

Myers WHR10H-43 High Head Sewage Pump Specifications

• VOLTAGE: 3ø, 460V, 60Hz
• HORSEPOWER: 1.0 HP
• AMP DRAW (full load): 3.5
• MOTOR TYPE: Permanent Split Capacitor (PSC)
• RPM: 3450
• MAXIMUM HEAD: up to 45'
• MAXIMUM CAPACITY: up to 141 GPM
• SWITCH TYPE: Manual
• MINIMUM SUMP DIAMETER: Simplex: 24” Duplex: 36”
• DISCHARGE PIPE SIZE: 2.0" NPT (3.0" optional)
• MAXIMUM SOLIDS HANDLING SIZE: 2.0"
• IMPELLER TYPE: Ductile Iron, Recessed
• IMPELLER DIAMETER: 3.88"
• CORD LENGTH: 20'
• CORD SIZE: 16/4; Type: SJOW/SJOW-A
• BODY CONSTRUCTION: Cast Iron
• MAXIMUM LIQUID TEMPERATURE: 140°F (60°C)

Myers WHRH Series High Head Sewage Pump Performance Data

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Myers WHRH Series High Head Sewage Pump Product Resources

Download Myers WHRH Series High Head Sewage Pump Data Sheet

Download Myers WHRH Series High Head Sewage Pump Installation & Service Manual

Download Myers WHRH Series High Head Sewage Pump Parts Breakdown
