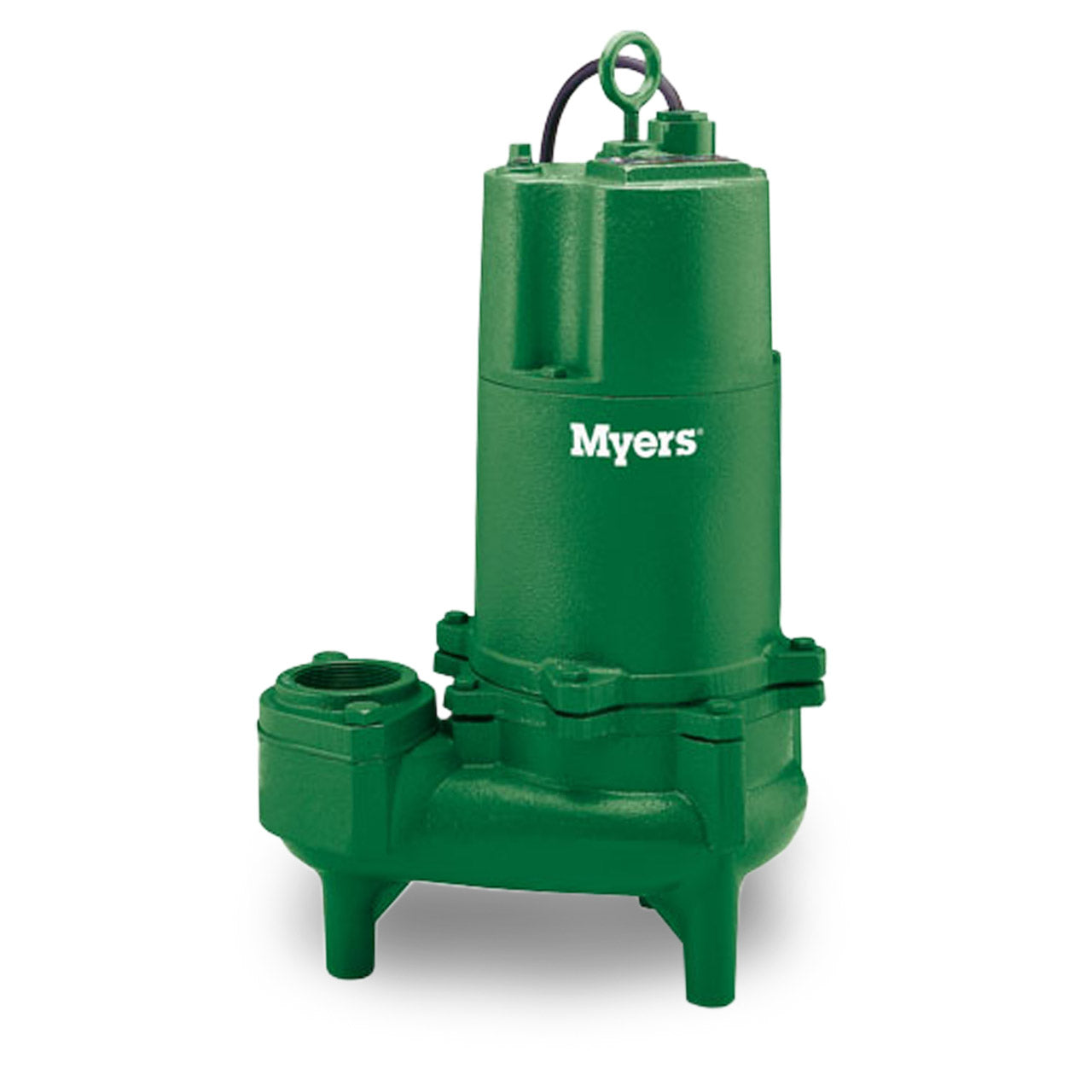

Myers WHR10-23-DS-L/D Sewage Pump 1.0 HP 230V 3 PH Dual Seal Manual 20' Cord
Myers WHR10-23-DS-L/D Sewage Pump 1.0 HP 230V 3 PH Dual Seal Manual 20' Cord
SKU : MYRWHR1023DSLD
In Stock Quantity:0
:
Brand
:
Shipping calculated at checkout.
Couldn't load pickup availability
Description
Description
Discontinued See WHR10 Series
Myers WHR Series Sewage Pump Description
The WHR Series pumps are designed for use in sewage applications. WHR pumps will pass at full 2-inch sphere. The recessed vortex impeller provides an unobstructed passage in the volute case which allows these pumps to handle stringy, trashy solids without plugging the impeller. The vortex impeller also greatly extends the pumps’ bearing life. Available in double seal configuration for extended motor life.
Myers WHR Series Sewage Pump Typical Applications
- Residential and Commercial Sewage
- High Capacity Sump
- Effluent
- Domestic Wastewater
- Septic Pumping Applications
Myers WHR Series Sewage Pump Features
- Versatile Applications Ideal for Residential and Commercial Sewage, Domestic Wastewater and Septic Systems.
- Non-Clog Design Recessed Impeller Provides Maximum Efficiency and Eliminates Jamming Between Volute Case - Cast Iron Construction.
- Leak Detection Leak Probe Senses Water Leakage Past Seal (Dual Seal Motors Only).
- Cool Running Durable, Oil-Filled Motor for Continuous Bearing Lubrication and Maximum Heat Dissipation.
- Powerful Starts High-Torque, Permanent Split Capacitor (PSC) Motor; No Starting Switches or Relays to Wear Out.
- Thermal Protection Heat Sensor Overload Protection with Automatic Reset when Motor Cools to a Safe Operating Temperature.
- High-Capacity Handling Passes Full 2" Solids.
- Leak Probe NOT INCLUDED
Specifications
Specifications
Myers WHR10-23-DS-L/D Series Sewage Pump Specifications
- VOLTAGE: 3ø, 230V, 60Hz
- HORSEPOWER: 1.0 HP
- AMP DRAW (full load): 5.2
- MOTOR TYPE: Permanent Split Capacitor (PSC)
- MAXIMUM HEAD: up to 33'
- MAXIMUM CAPACITY: up to 178 GPM
- SWITCH TYPE: Manual
- MINIMUM SUMP DIAMETER: Simplex: 24” Duplex: 30”
- DISCHARGE PIPE SIZE: 2.0" NPT (3.0" optional)
- MAXIMUM SOLIDS HANDLING SIZE: 2.0"
- IMPELLER TYPE: Cast Iron, Vortex
- CORD LENGTH: 20'
- CORD SIZE: 16/4; Type: SJOW/SJOW-A
- BODY CONSTRUCTION: Cast Iron
- MAXIMUM LIQUID TEMPERATURE: 140°F (60°C)
Myers WHR Series Sewage Pump Performance Data
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Resources
Resources
Myers WHR Series Sewage Pump Product Resources
Download Myers WHR Series Specification Data
