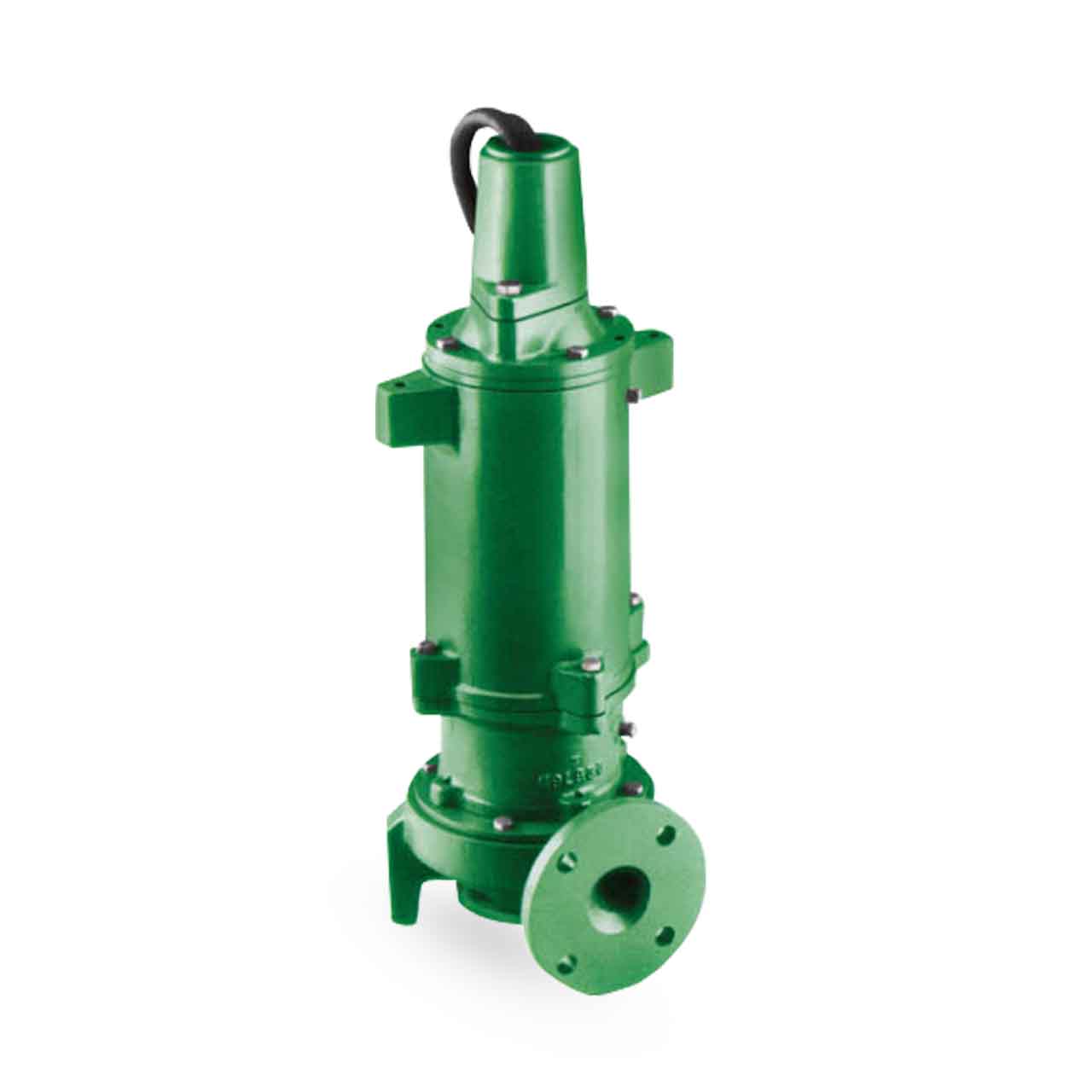

Myers Model WG30H/WGX30H Submersible Grinder Pump Description

The Myers WG30H/WGX30H are rugged 3 horsepower submersible centrifugal grinder pumps are designed for residential, commercial or industrial applications. They are especially suited for use in pressure sewer applications or in systems with long discharge runs or high static heads. The WG30H features a heavy duty cutter mechanism and recessed impeller design to efficiently grind typical sewage solids into a fine slurry.

Myers Model WG30H/WGX30H Submersible Grinder Pump Typical Application

• Residential
• Commercial
• Industrial Applications

Myers Model WG30H/WGX30H Submersible Grinder Pump Superior Features

• Cable Entry System Provides Double Seal Protection. Cable Jacket Sealed by Compression Fitting. Individual Wires Sealed by Epoxy Potting.
• Heat Sensor Protects Motor from Burnout Due to Excessive Heat from Any Overload Condition. Automatically Resets when Motor has Cooled.
• Ball Bearings Upper and Lower Ball Bearings Support Shaft and Rotor and Take Axial and Radial Loads.
• Heavy 416 SST Shaft Corrosion Resistant. Reduces Shaft Deflection Due to Grinding Loads.
• Shaft Seals Double Tandem Mechanical Shaft Seals Protect Motor. Oil-Filled Seal Chamber Provides Continuous Lubrication.
• Sleeve Bearing Takes Radial Load; Provides Flame Path (FM Listed Pumps Only)
• Seal Leak Probe Detects Water in Seal Housing; Activates Warning Light in Control Panel.
• Volute Case Cast Iron, Horizontal Discharge. Drilled for 2-1/2" Pipe Flange.

• Stator 3450 RPM, 1 and 3 Phase. Press Fit for Perfect Alignment and Best Heat Transfer. Oil-Filled Motor Conducts Heat and Lubricates Bearings
• Grinder Assembly Grinder Impeller and Shredding Ring are Replaceable without Dismantling Pump. Constructed of 440 SST Hardened to 56-60 Rockwell.
• Impeller Bronze Recessed Impeller Handles Ground Slurry without Clogging or Binding. Provides Unobstructed Flow Passage. Reduces Radial Loads. Pump-Out Vanes Help Keep Trash from Seal, Reduce Pressure at Seal Faces.

Myers WGX30H-23 Submersible Grinder Pump Specifications

• VOLTAGE: 3ø, 230V, 60Hz
• HORSEPOWER: 3.0 HP
• AMP DRAW (full load): 13
• MOTOR TYPE: Oil-Filled for Maximum Heat Dissipation and Constant Bearing Lubrication
• RPM: 3450
• MAXIMUM HEAD: up to 141'
• MAXIMUM CAPACITY: up to 98 GPM
• SWITCH TYPE: Manual
• MINIMUM SUMP DIAMETER: Simplex; 36" Duplex; 48"
• DISCHARGE PIPE SIZE: 2-1/2" Flanged Discharge
• IMPELLER TYPE: Bronze, Recessed
• IMPELLER DIAMETER: 5.25"
• CORD SIZE: 10-4
• BODY CONSTRUCTION: Cast Iron
• MAXIMUM LIQUID TEMPERATURE: 140°F (60°C)
• HAZARDOUS DUTY: UL Listed for Use in Class 1, Division 1, Group D
• CONTROL BOX REQUIRED

Myers Model WGX30H Submersible Grinder Pump Curve
