DISCONTINUED SEE SUGGESTED REPLACEMENT: Myers VH20-43-20 High Head Grinder Pump 2.0 HP 460V 3PH 20' Standard Cord

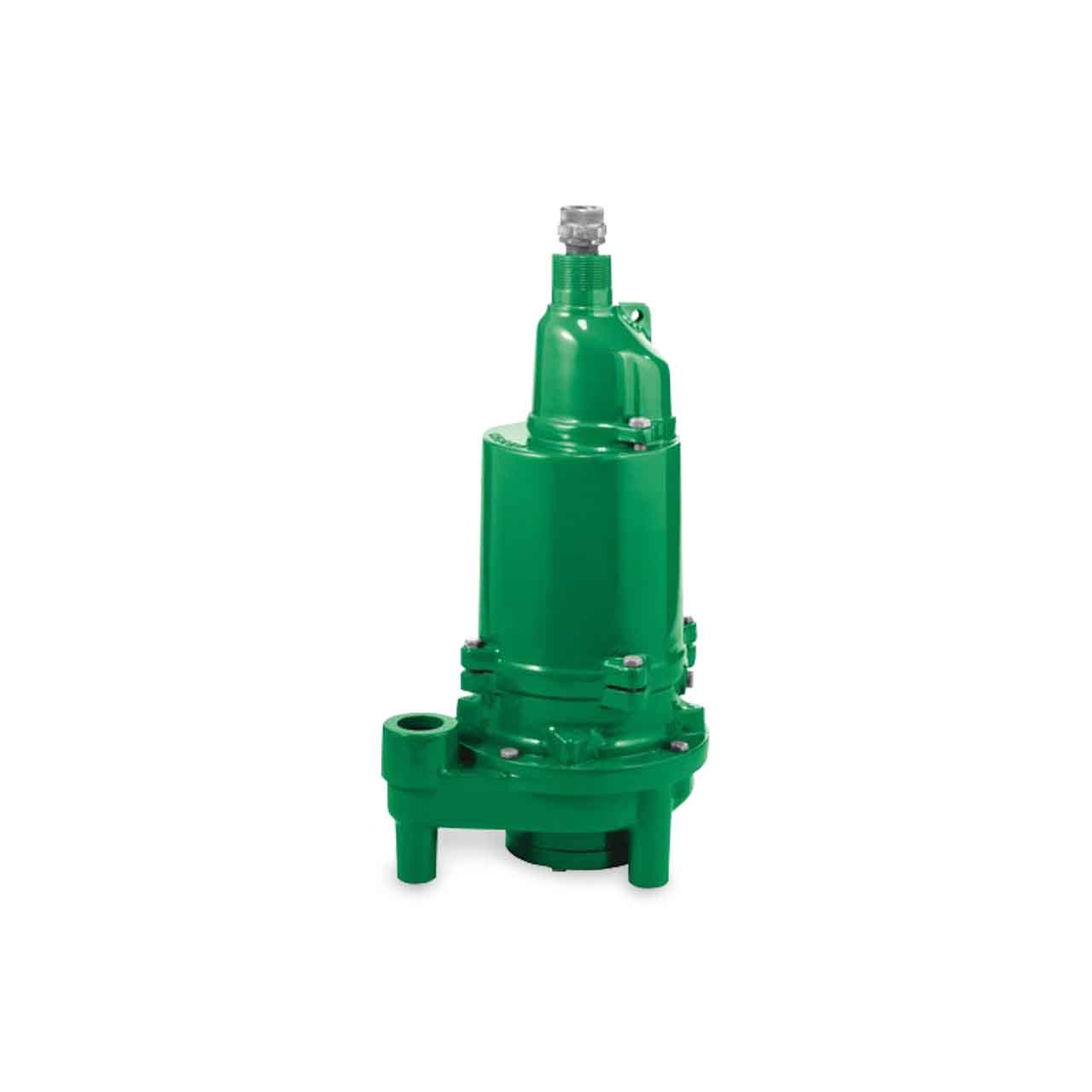

Myers Model WGL20H Submersible Grinder Pump Description

The Myers WGL20 Series are versatile 2 HP submersible grinder pumps designed specifically for use in pressure sewer applications with long discharge runs or high static heads. It features a patented cutter mechanism and recessed impeller design to effectively mascerate typical domestic sewage solids into a fine slurry.

The WGL20 Series can be installed in a variety of packaged systems. Factory-assembled simplex or duplex packages with guide rail systems or suspended systems are available. Myers also has complete turn-key systems to make selection simple. Individual rail components are also available for installation in on-site concrete systems.

Myers Model WGL20H Submersible Grinder Pump Typical Application

• Commercial Lift Stations
• Treatment Plants
• Industrial Waste Applications

Myers Model WGL20H Submersible Grinder Pump Superior Features

• Cable Entry System Provides Double Seal Protection, Cable Jacket Sealed by Compression Grommet and Individual Wires Sealed by Epoxy Potting. Power Cord can be Replaced without Disturbing Motor.
• Heat Sensor (Single Phase Only) Protects Motor from Burnout Due to Excessive Heat from any Overload Condition. Automatically Resets when Motor has Cooled.
• Ball Bearings Upper and Lower Ball Bearings Support Shaft and Rotor and Take Axial and Radial Loads.
• Seal Leak Probe (Optional) Detects Water in Seal Housing. Activates Warning Light in Control Panel.
• Volute Case Cast Iron 1-1/4" NPT Vertical Flanged Discharge.
• Stator 2 HP, 3450 RPM, 1 and 3 Phase. Press Fit for Perfect Alignment and Best Heat Transfer. Oil-Filled Motor Conducts Heat and Lubricates Bearings.
• Heavy 416 SST Shaft Corrosion Resistant. Reduces Shaft Deflection Due to Grinding Loads.
• Shaft Seals Double Tandem Mechanical Shaft Seals Protect Motor. Oil-Filled Seal Chamber Provides Continuous Lubrication.
• Impeller Cast Iron Recessed Impeller Handles Ground Slurry without Clogging or Binding. Provides Unobstructed Flow Passage. Reduces Radial Loads. Pump-Out Vanes Help Keep Trash from Seal, Reduces Pressure at Seal Faces.
• Grinder Assembly Grinder Impeller and Shredding Ring are Replaceable without Dismantling Pump. Constructed of 440 SST Hardened to 56-60 Rockwell.

Myers WGL20H-43 Submersible Grinder Pump Specifications

• VOLTAGE: 3ø, 460V, 60Hz
• HORSEPOWER: 2.0 HP
• AMP DRAW (full load): 4.2
• MOTOR TYPE: Oil Filled for Maximum Heat Dissipation and Constant Bearing Lubrication
• RPM: 3450
• MAXIMUM HEAD: up to 130'
• MAXIMUM CAPACITY: up to 18 GPM
• SWITCH TYPE: Manual
• DISCHARGE PIPE SIZE: 1-1/4" Vertical Flanged
• IMPELLER TYPE: Cast Iron, Recessed
• CORD LENGTH: 20'
• CORD SIZE: 14-5; Type: SOOW
• BODY CONSTRUCTION: Cast Iron
• CONTROL BOX REQUIRED

Myers Model WGL20H Submersible Grinder Pump Curve

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Myers Model WGL20H Submersible Grinder Pump Product Resources

Download Myers Model WGL20H Submersible Grinder Pump Sale Brochure

Download Myers Model WGL20H Submersible Grinder Pump Specification Sheet

Download Myers Model WGL20H Submersible Grinder Pump Installation & Service Manual
