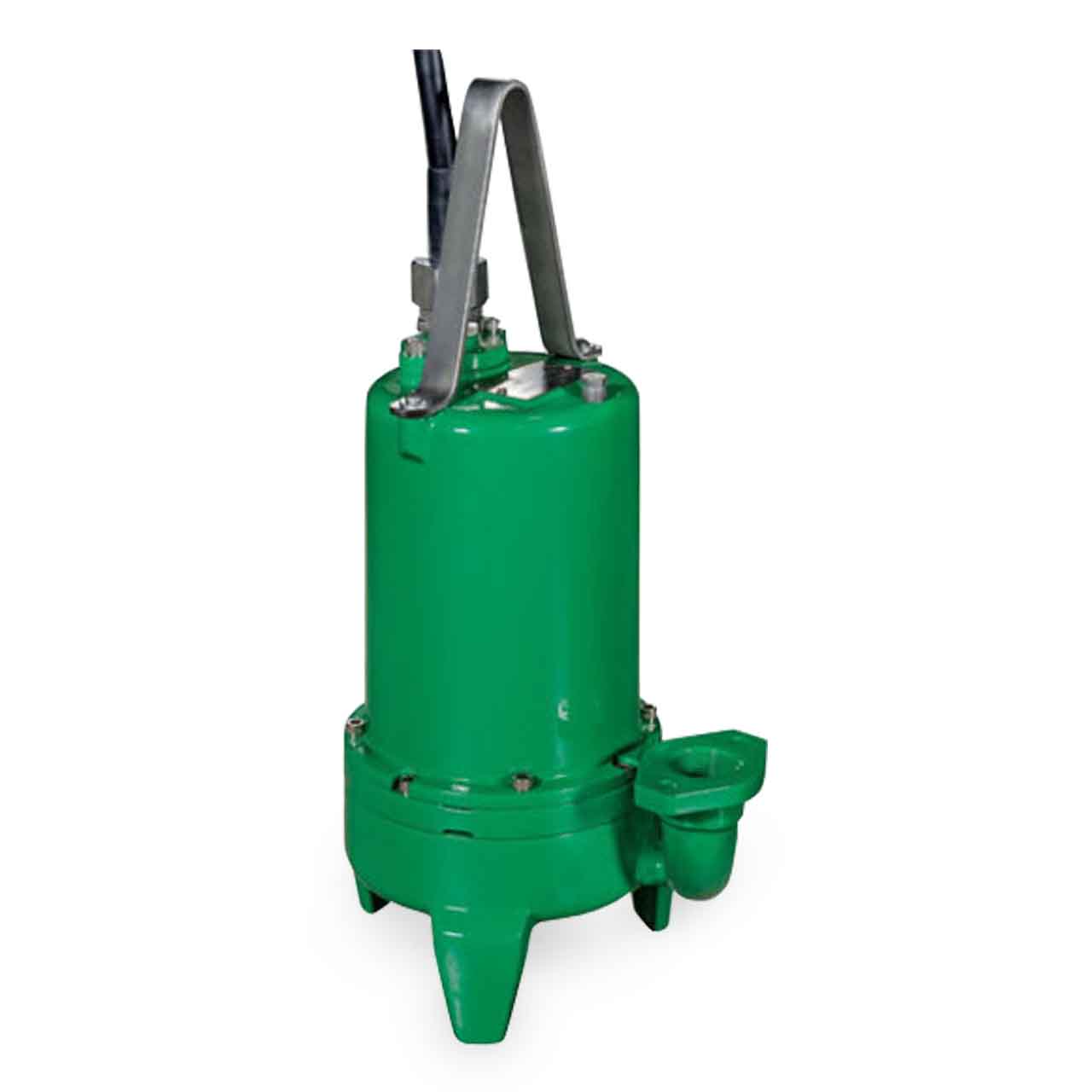

Myers VS20-43-20QD V2 Grinder Pump 2.0 HP 460V 3PH 20' Quick Disconnect
Myers VS20-43-20QD V2 Grinder Pump 2.0 HP 460V 3PH 20' Quick Disconnect
SKU : MYR28151D017
In Stock Quantity:0
:
Brand
:
Shipping calculated at checkout.
Couldn't load pickup availability
Description
Description
Discontinued - Myers
Myers Model V2 Grinder Series Description
The Myers V2 Series is the newly innovative 2 HP Submersible Grinder Pump is designed specifically for use in today's complex wastewater environment. It features an advanced cutting technology and semi-open impeller design to effectively macerate typical domestic sewage solids into a fine slurry.
Myers Model V2 Grinder Series Superior Features
- Cable Entry System:
- Optional Quick Disconnect Cord Available for Ease of Maintenance.
- Cable Jacket Sealed by Compression Fitting; Individual Wires Sealed by Compression Grommet for Double Seal Protection Against Water Ingress.
- Replace Power Cord without Disturbing Motor for Ease of Maintenance.
- Oil-Filled Motor:
- Maximizes Heat Dissipation; Provides Constant Bearing Lubrication for Long Life.
- High Torque Start/Run Capacitor for Single or Three-Phase Motors, Assured Starting Under Heavy Loads.
- Heavy 416 SST Shaft:
- Corrosion Resistant, Reduces Shaft Deflection for Long Life.
- Lower Double Row Ball Bearings:
- Absorb Both Axial and Radial Loads for Increased Durability.
- Double Mechanical Shaft Seals:
- In Oil-Filled Seal Chamber for Continuous Lubrication, Superior Motor Protection.
- Seal Leak Probe:
- Located in Seal Chamber Instead of Motor Area for Truly Early Warning of Water Leaks. Allows Corrective Action before Costly Motor or Bearing Failure Occurs.
- Activates Warning Light in Control Panel.
- SST Semi-Open Impeller:
- Provides Improved Performance, Resists Clogging.
- Pump-Out Vanes Help Keep Trash from Sea, Reduces Pressure at Seal Face for Longer Life.
- Axial Cutter System:
- Constructed of 440 SST Hardened to 57-60Rc for Long Life.
- Easily Replaceable without Dismantling Pump.
- Volute Case:
- Cast Iron 1¼" NPT Vertical Flanged Discharge.
Specifications
Specifications
Myers VS20-43-20QD Grinder Technical Details
- VOLTAGE: 3ø, 460V, 60Hz
- HORSEPOWER: 2.0 HP
- AMP DRAW (full load): 4.2
- MOTOR TYPE: Oil-Filled for Maximum Heat Dissipation and Constant Bearing Lubrication
- RPM: 3450
- MAXIMUM HEAD: up to 139'
- MAXIMUM CAPACITY: up to 31 GPM
- SWITCH TYPE: Manual
- MINIMUM SUMP DIAMETER: Simplex; 24" Duplex; 36"
- DISCHARGE PIPE SIZE: 1-1/4" Flanged, Vertical
- IMPELLER TYPE: Stainless Steel, Semi-Open
- CORD LENGTH: 20' Quick Disconnect
- CORD SIZE: 12-5
- BODY CONSTRUCTION: Cast Iron
- MAXIMUM LIQUID TEMPERATURE: 140°F (60°C)
- CONTROL BOX REQUIRED
Myers Model V2 Grinder Series Pump Curve
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Resources
Resources
Myers Model V2 Grinder Series Product Resources
Download Myers V2 Grinder Pump Sale Brochure
Download Myers V2 Grinder Pump Specifications
Download Myers V2 Grinder Pump Installation & Service Manual
