Myers VRF20M-21 VR2 Residential Submersible Grinder Pump 2.0 HP 230V 1 PH Manual 20' Cord

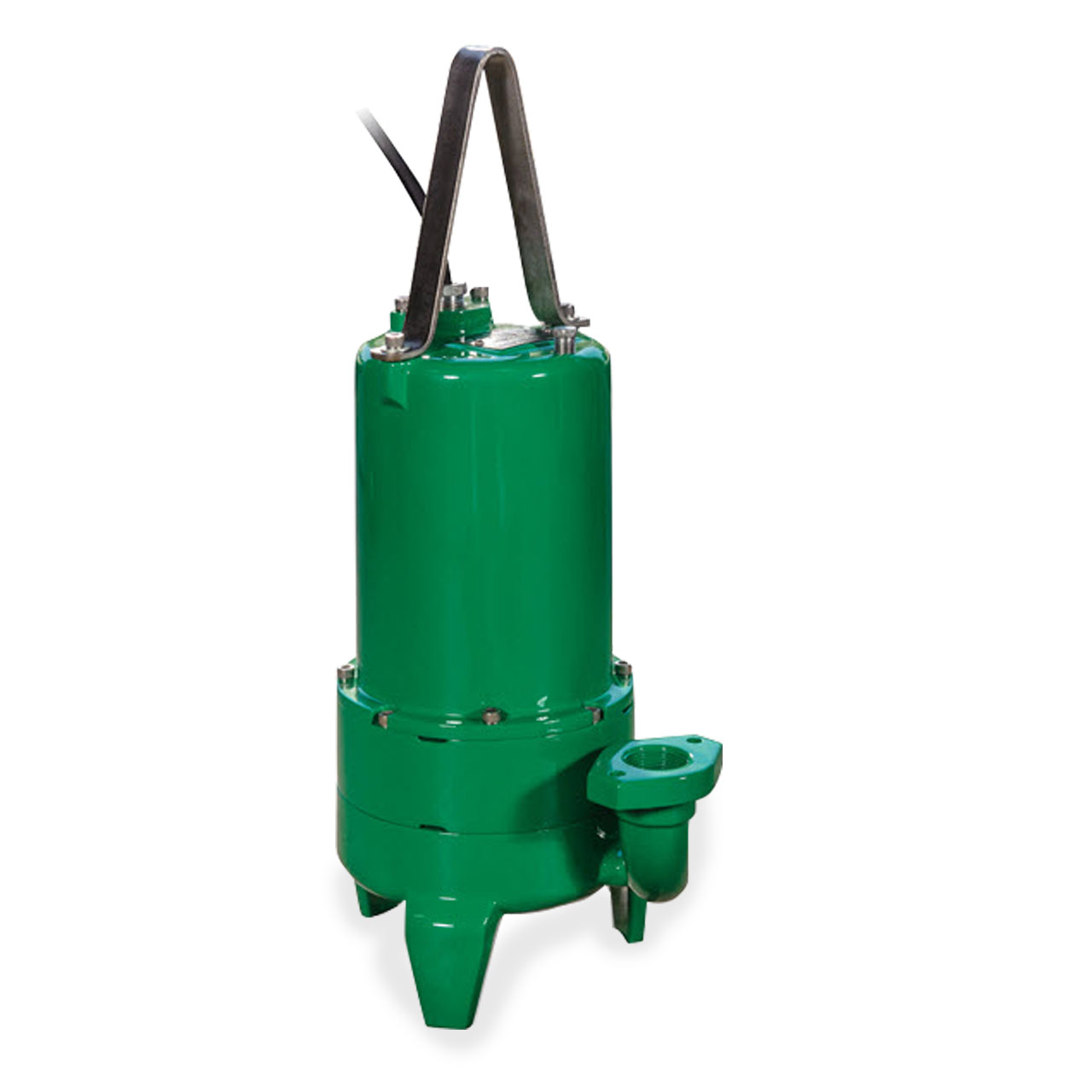

Myers VRF20M-21 VR2 Residential Submersible Grinder Pump 2.0 HP 230V 1 PH Manual 20' Cord

Usually ships within 2 weeks

SKU : MYRVRF20M21

In Stock Quantity:0

:
Brand : Myers
$2,768.00 USD
Shipping calculated at checkout.

Description


Myers VRF20 Residential Submersible Grinder Pump Description

The MYERS VR2 Grinder features a patent pending axial cutter technology that easily slices through solids and trash found in domestic wastewater without roping or clogging. They come with plenty of standard features to make installation a breeze.

The VR2 is a rugged and economical solution for residential and pressure sewage systems.

Myers VRF20 Residential Submersible Grinder Features

  • Wide Angle Float Switch
    • Piggy-Back Cord for Easy Maintenance
  • Cable Entry System
    • Cable Jacket Sealed by Compression Fitting and Individual Wires Sealed by Compression Grommet for Double Seal Protection Against Water Ingress
  • Oiled-Filled Motor
    • Maximizes Heat Dissipation and Provides Constant Bearing Lubrication for Long Life
    • High Torque Start/Run Capacitor for Single Phase Motors for Assured Starting Under Heavy Loads
    • Internal Capacitors Eliminate Need for Control Panel
  • Integrated Heat Sensor
    • Protects Motor from Burnout Due to Excessive Heat from any Overload Condition. Automatically Resets when Motor has Cooled
  • Shafts and Fasteners
    • Stainless Steel for Maximum Corrosion Resistance and Long Life
  • Shaft Seals
    • Oil Lubricated Single Carbon and Ceramic Faced Seal Provides Motor Protection
  • Impeller
    • Semi-Open Impeller Handles Ground Slurry without Clogging or Binding
    • Pump-Out Vanes Help Keep Trash from Seal and Reduces Pressure at Seal Face for Longer Life

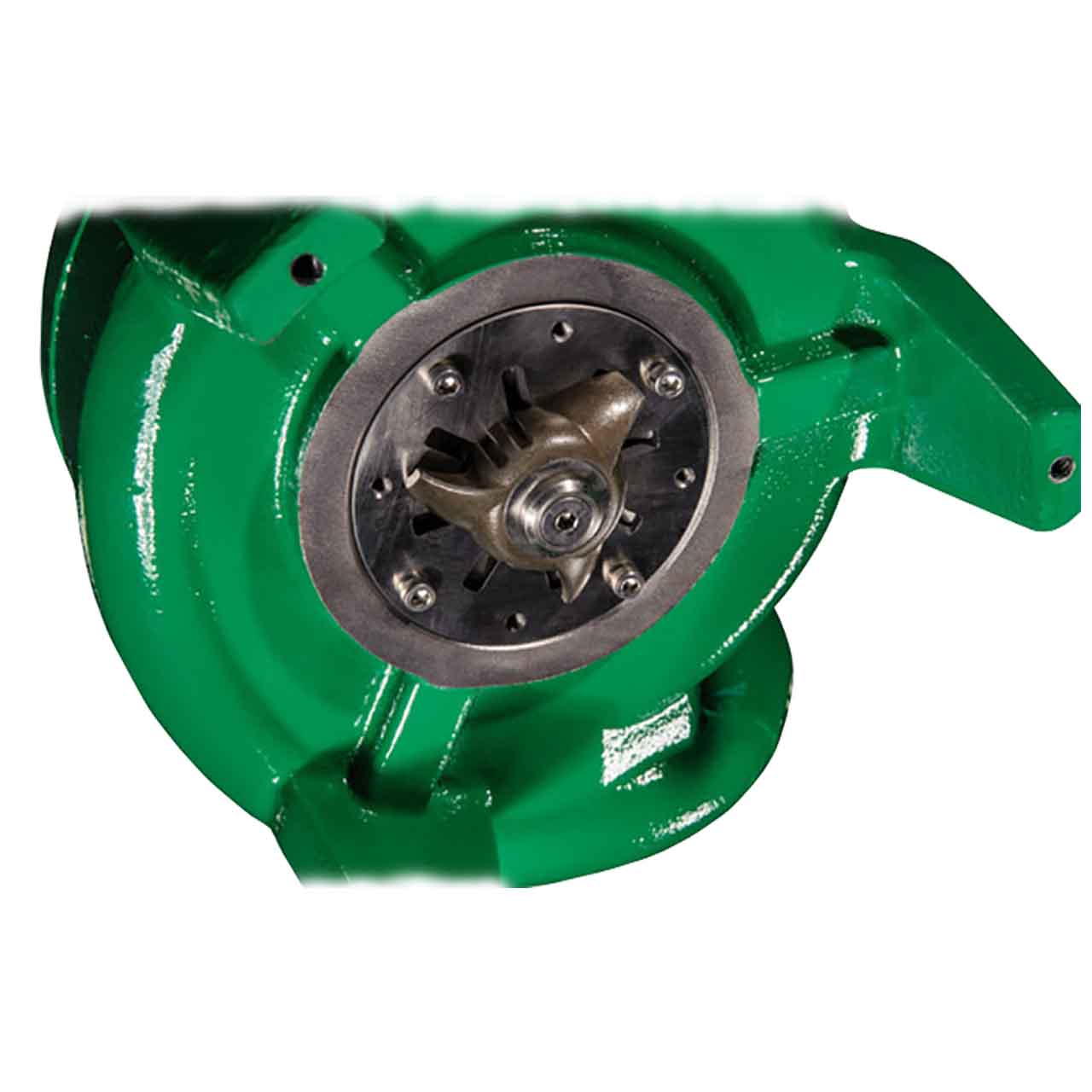

  • Axial Cutter System
    • Easily Slices Through Solids and Trash Commonly Found in Domestic Wastewater without Roping or Clogging
    • Constructed of 440 SST Hardened to 57-60Rc for Long Life
    • Easily Replaceable without Dismantling Pump
  • Volute Case
    • Cast Iron, 1-1/4" Vertical, Flanged Discharge

Specifications

Myers VRF20M-21 Residential Submersible Grinder Specifications

  • VOLTAGE: 1ø, 230V, 60 Hz
  • HORSEPOWER: 2.0 HP
  • AMP DRAW (full load): 15
  • MOTOR TYPE: Capacitor Start/ Capacitor Run w/ Overload Protection
  • RPM: 3450
  • MAXIMUM HEAD: 100'
  • MAXIMUM CAPACITY: 58 GPM
  • SWITCH TYPE: Manual
  • MINIMUM SUMP DIAMETER: Simplex: 24"
  • DISCHARGE PIPE SIZE: 1.25" Vertical Flanged
  • IMPELLER TYPE: Thermoplastic, Semi-Open
  • CORD LENGTH: 20' TYPE: SJOOW
  • BODY CONSTRUCTION: Cast Iron
  • MAXIMUM LIQUID TEMPERATURE: 140°F (60˚C)

Myers VRF20 Residential Grinder Performance Data


WARNING Cancer and Reproductive Harm - www.P65Warnings.ca.gov WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Resources

Myers VRF20 Residential Submersible Grinder Product Resources


Download Myers VRF20 Residential Submersible Grinder Brochure

Download Myers VRF20 Residential Submersible Grinder Specification Data

Download Myers VRF20 Residential Submersible Grinder Installation Manual
