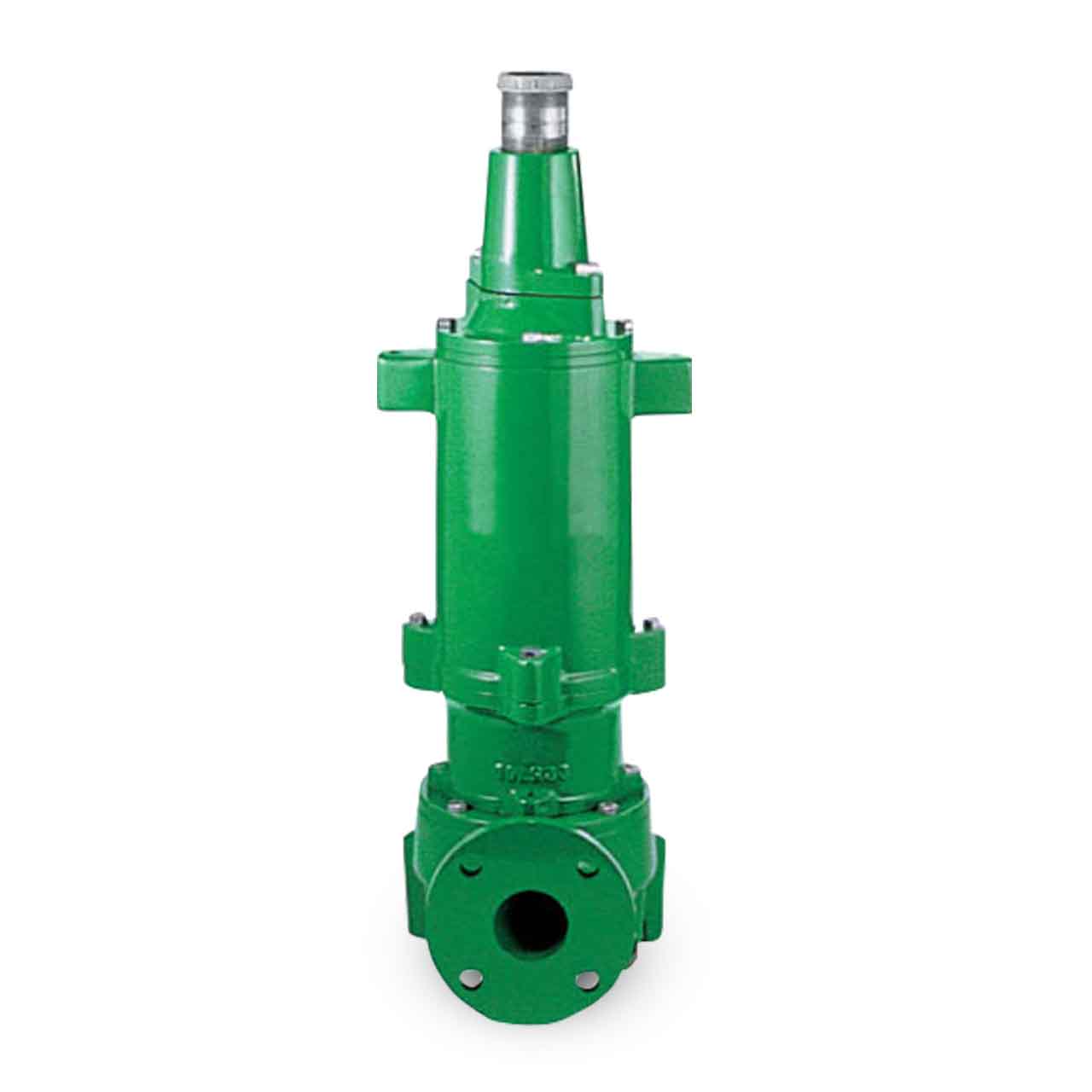

Myers Model VH75 High Head Submersible Grinder Pump Description

The Myers VH75 Grinders feature a patent-pending axial cutter designed to effectively macerate challenging sewage solids into a fine slurry. These rugged 7.5 horsepower submersible centrifugal grinder pumps are available in standard flow or high head configurations making them ideal for commercial, industrial and municipal applications. V7 Grinder Pumps can be installed in a variety of packaged systems. Factory-assembled simplex or duplex packages with guide rail systems are available. Individual rail components are also available for installation in on-site concrete systems.

Myers Model VH75 High Head Submersible Grinder Pump Superior Features

• Recessed Impeller Provides Steep Non-Overloading Operating Curve, Reduces Radial and Bearing Loads and Increases Bearing Life.
• Oil-Filled Motor for Maximum Heat Dissipation and Constant Bearing Lubrication.
• High Torque Capacitor Starts Single Phase or Three Phase Motors for Assured Starting Under Heavy Load.
• Seal Leak Probe Warns of Leak Condition, Prevents Costly Motor Damage.
• On-Winding Temperature-Sensitive Sensor.
• Patent-Pending Axial Cutter Technology Easily Slices Through Solids and Trash found in Wastewater Without Roping or Clogging.

Myers VH75-03 Submersible Grinder Pump Specifications

• VOLTAGE: 3ø, 200V, 60Hz
• HORSEPOWER: 7.5 HP
• MOTOR TYPE: Oil-Filled for Maximum Heat Dissipation and Constant Bearing Lubrication
• RPM: 3450
• MAXIMUM HEAD: up to 140'
• MAXIMUM CAPACITY: up to 90 GPM
• SWITCH TYPE: Manual
• MINIMUM SUMP DIAMETER: Simplex; 36" Duplex; 48"
• DISCHARGE PIPE SIZE: 2-1/2" Flanged
• IMPELLER TYPE: SST, Semi-Open
• IMPELLER DIAMETER: Varies
• CORD SIZE: 8-4 SOOW
• BODY CONSTRUCTION: Cast Iron
• MAXIMUM LIQUID TEMPERATURE: 140°F (60°C)
• CONTROL BOX REQUIRED

Myers Model VH75 High Head Submersible Grinder Pump Curve

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Myers Model VH75 High Head Submersible Grinder Pump Product Resources

Download Myers Model VH75 Grinder Pump Specification Sheet

Download Myers Model VH75 Grinder Pump Installation & Service Manual
