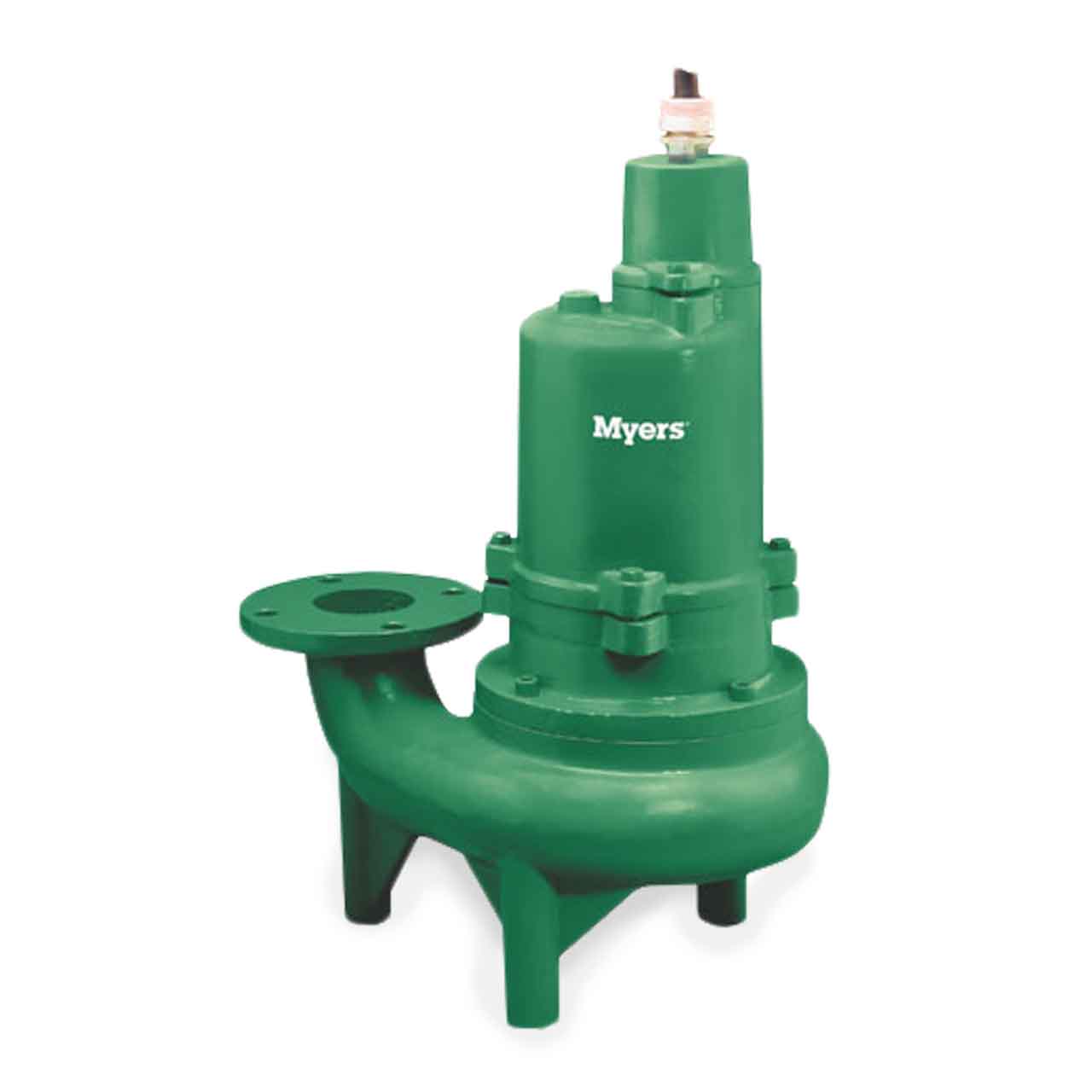

Myers V3WHV Series Sewage Pump Descriptions

The V3WHV Series Solids-Handling Pumps are designed primarily for commercial applications such as: schools, churches, industrial plants, shopping centers, apartments and condominiums, marinas, interstate rest stops, sewage collection systems, campgrounds, motels, restaurants, office & commercial buildings, state & federal parks and treatment plants. This pump can be installed on legs or with a quick-disconnect slide rail system. Its ability to handle 2-1/2" spherical solids makes it ideal for most light to medium commercial installations.

Myers V3WHV Series Sewage Pump Applications

• Residential and Commercial Sewage/Dewatering
• High Capacity Sump
• Effluent/Wastewater Transfer
• Sewage Lift Stations

Myers V3WHV Series Sewage Pump Features

• Cable Entry System Provides Double Seal Protection. Cable Jacket Sealed by Compression Fitting. Indivdual Wires Sealed by Epoxy Potting.
• Motor Stator Pressed in Shell for Optimal Alignment and Best Heat Transfer. Oil-Filled for Continuous Lubrication of Bearings and Seals. Winding in Insulation is Class F.
• Stainless Steel Shaft Prevents Deflection from Impeller Radial Loads when Pump Operates at Heads Higher than Peak Efficiency Range.
• Single Shaft Seals Protect Motor.
• Pump-Out Vanes Help Keep Trash from Seal, Reduce Pressure at Seal Faces.
• Vertical Discharge Volute Case Includes 3" Support Legs. 3" Flanged.
• High Efficiency Impeller Two-Vane Rounded Port, Solids Handling Design.

Myers V3WHV30M4-21 Series Sewage Pump Specifications

• VOLTAGE: 1ø, 230V, 60Hz
• HORSEPOWER: 3.0 HP
• AMP DRAW (full load): 21
• MOTOR TYPE: Enclosed, Oil Cooled Induction
• RPM: 1750
• MAXIMUM HEAD: up to 38'
• MAXIMUM CAPACITY: up to 400 GPM
• SWITCH TYPE: Manual
• MINIMUM SUMP DIAMETER: Duplex 60"
• DISCHARGE PIPE SIZE: 3.0" Flanged, Vertical
• MAXIMUM SOLIDS HANDLING SIZE: 2.5"
• IMPELLER TYPE: Ductile Iron, Enclosed 2-Vane
• IMPELLER DIAMETER: 6.50"
• CORD LENGTH: 35' Type SOOW W
• BODY CONSTRUCTION: Cast Iron, Class 30, ASTM A48
• MAXIMUM LIQUID TEMPERATURE: 140°F (60°C)
• CONTROL PANEL REQUIRED

Myers V3WHV Series Sewage Pump Performance Curve
