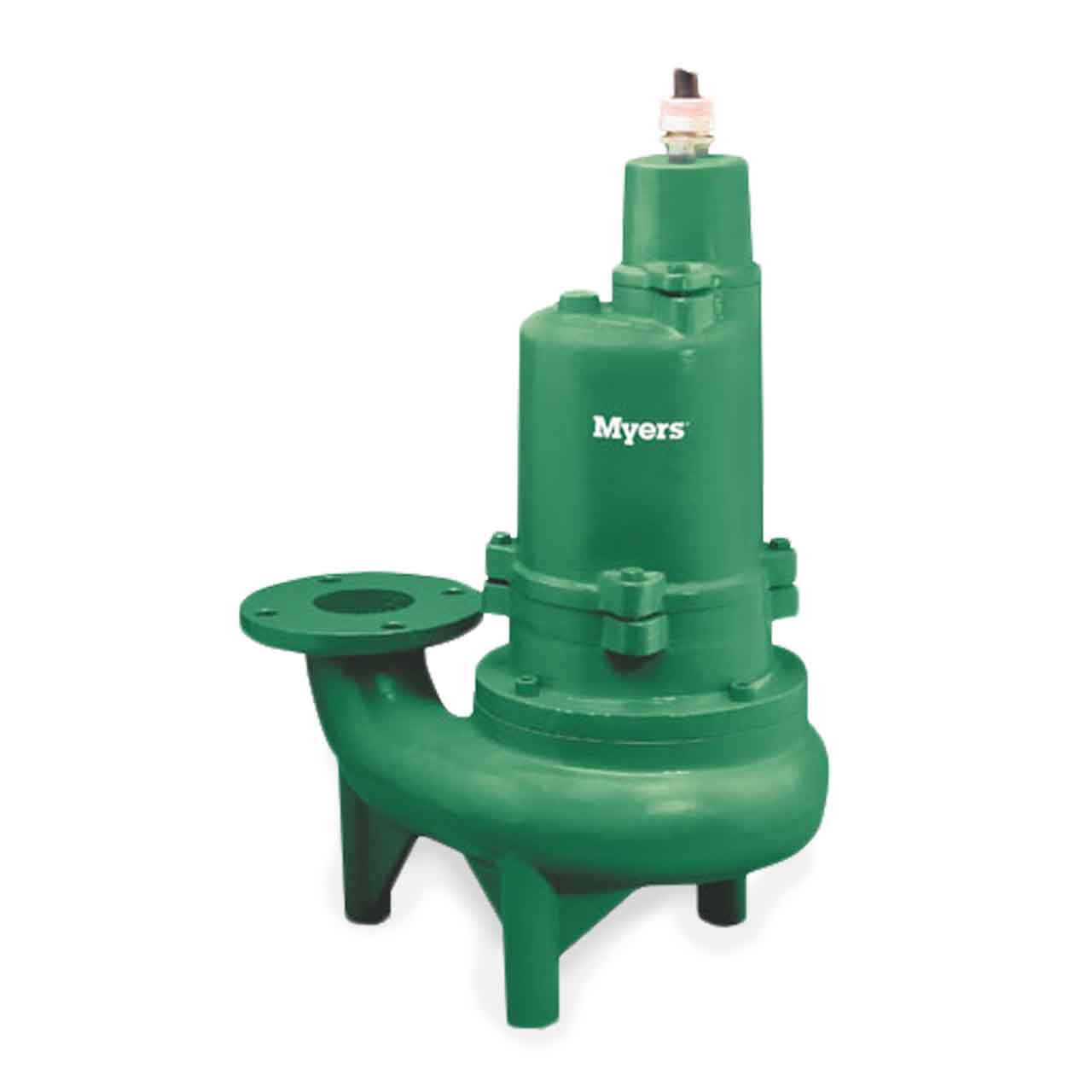

Myers V3WHV20M4-03 Submersible Sewage Pump 2.0 HP 208V 3PH 35' Cord
Myers V3WHV20M4-03 Submersible Sewage Pump 2.0 HP 208V 3PH 35' Cord
SKU : MYRV3WHV20M4-03
In Stock Quantity:0
:
Brand
:
Regular price
$5,616.00 USD
Shipping calculated at checkout.
Couldn't load pickup availability
Description
Description
Myers V3WHV Series Sewage Pump Descriptions
The V3WHV Series Solids-Handling Pumps are designed primarily for commercial applications such as: schools, churches, industrial plants, shopping centers, apartments and condominiums, marinas, interstate rest stops, sewage collection systems, campgrounds, motels, restaurants, office & commercial buildings, state & federal parks and treatment plants. This pump can be installed on legs or with a quick-disconnect slide rail system. Its ability to handle 2-1/2" spherical solids makes it ideal for most light to medium commercial installations.
Myers V3WHV Series Sewage Pump Applications
- Residential and Commercial Sewage/Dewatering
- High Capacity Sump
- Effluent/Wastewater Transfer
- Sewage Lift Stations
Myers V3WHV Series Sewage Pump Features
- Cable Entry System Provides Double Seal Protection. Cable Jacket Sealed by Compression Fitting. Indivdual Wires Sealed by Epoxy Potting.
- Motor Stator Pressed in Shell for Optimal Alignment and Best Heat Transfer. Oil-Filled for Continuous Lubrication of Bearings and Seals. Winding in Insulation is Class F.
- Stainless Steel Shaft Prevents Deflection from Impeller Radial Loads when Pump Operates at Heads Higher than Peak Efficiency Range.
- Single Shaft Seals Protect Motor.
- Pump-Out Vanes Help Keep Trash from Seal, Reduce Pressure at Seal Faces.
- Vertical Discharge Volute Case Includes 3" Support Legs. 3" Flanged.
- High Efficiency Impeller Two-Vane Rounded Port, Solids Handling Design.
Specifications
Specifications
Myers V3WHV20M4-03 Series Sewage Pump Specifications
- VOLTAGE: 3ø, 208V, 60Hz
- HORSEPOWER: 2.0 HP
- AMP DRAW (full load): 8.4
- MOTOR TYPE: Enclosed, Oil Cooled Induction
- RPM: 1750
- MAXIMUM HEAD: up to 31'
- MAXIMUM CAPACITY: up to 350 GPM
- SWITCH TYPE: Manual
- MINIMUM SUMP DIAMETER: Duplex 60"
- DISCHARGE PIPE SIZE: 3.0" Flanged, Vertical
- MAXIMUM SOLIDS HANDLING SIZE: 2.5"
- IMPELLER TYPE: Ductile Iron, Enclosed 2-Vane
- IMPELLER DIAMETER: 6.00"
- CORD LENGTH: 35' Type SOOW W
- BODY CONSTRUCTION: Cast Iron, Class 30, ASTM A48
- MAXIMUM LIQUID TEMPERATURE: 140°F (60°C)
- CONTROL PANEL REQUIRED
Myers V3WHV Series Sewage Pump Performance Curve
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Resources
Resources
Myers 3WHV/V3WHV Series Sewage Pump Product Resources
Download Myers 3WHV/V3WHV Brochure
Download Myers 3WHV/V3WHV Specifications
