Myers 3WHV/V3WHV Series Descriptions

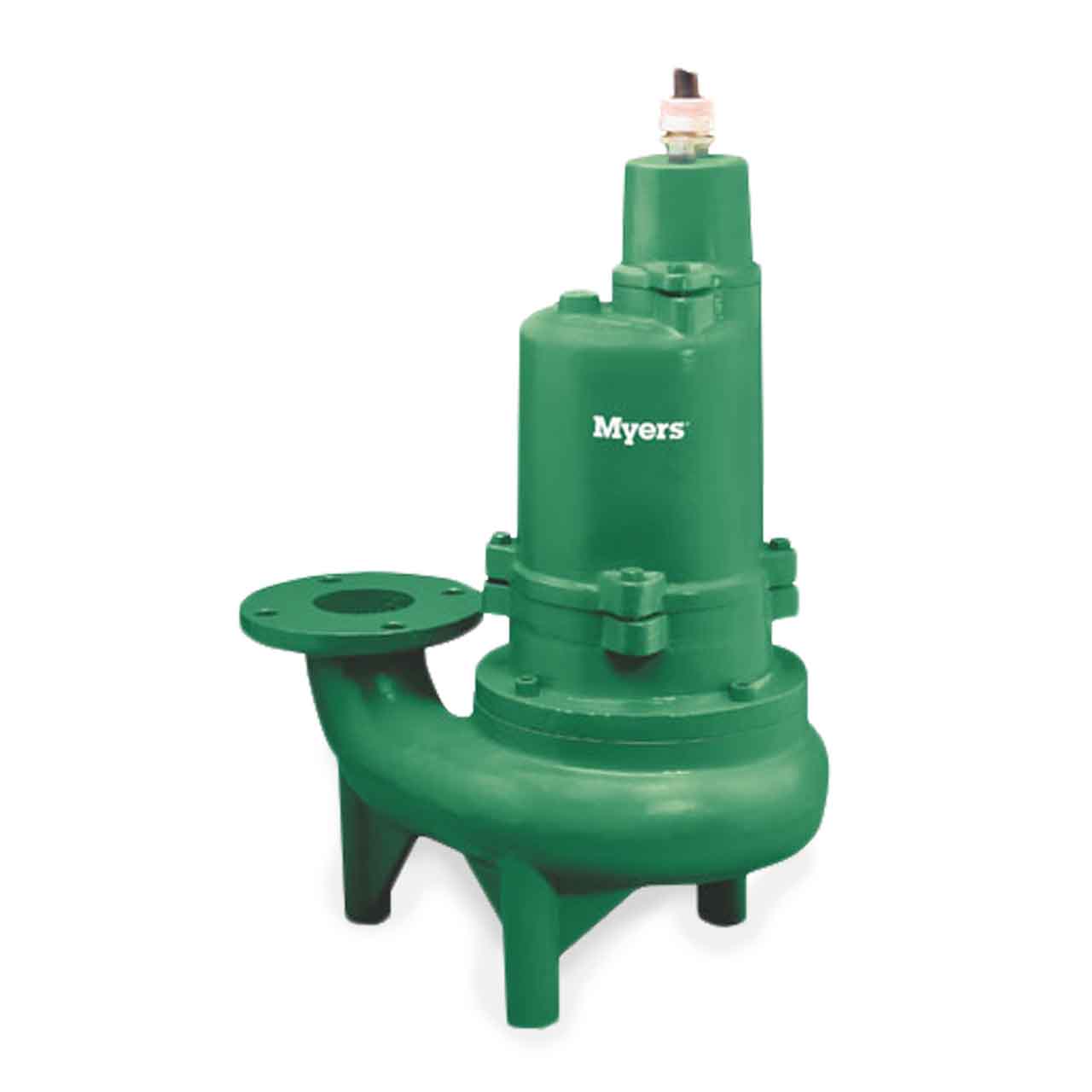

The 3WHV / V3WHV Series Solids-Handling Pumps are designed primarily for commercial applications such as: schools, churches, industrial plants, shopping centers, apartments and condominiums, marinas, interstate rest stops, sewage collection systems, campgrounds, motels, restaurants, office & commercial buildings, state & federal parks and treatment plants. This pump can be installed on legs (vertical discharge shown on left) or with a quick-disconnect slide rail system. Its ability to handle 2-1/2" spherical solids makes it ideal for most light to medium commercial installations.

Myers 3WHV/V3WHV Series Applications

• Residential and Commercial Sewage/Dewatering
• High Capacity Sump
• Effluent/Wastewater Transfer
• Sewage Lift Stations

Myers 3WHV/V3WHV Series Features

• High-volume capacity for commercial use
• Durable motor for long-lasting performance
• Offered in 1-1/2, 2, 3 & 5 HP models
• Oil-filled for maximum heat dissipation and constant bearing lubrication
• On-winding overload (1Ø) protects motor
• High-efficiency hydraulics
• Two-vane rounded port impellers pass 2-1/2” solids with ease

Myers 3MW Series Specifications

• BODY CONSTRUCTION: cast iron
• HORSEPOWER: Available in 1-1/2, 2, 3, and 5 HP
• RPM: 1750
• MAXIMUM HEAD: up to 48 ft.
• MAXIMUM CAPACITY: up to 400 GPM (1,511 LPM)
• SWITCH TYPE: control panel required
• MINIMUM SUMP DIAMETER: Simplex = 30" ( 762 mm)
• MINIMUM SUMP DIAMETER: Duplex = 60" ( 1524.0 mm)
• DISCHARGE PIPE SIZE: 3" (101.6 mm)
• DISCHARGE PIPE ORIENTATION: 3WHV Horizontal, V3WHV Vertical
• MAXIMUM SOLIDS HANDLING SIZE: 1750 RPM: 2.5"
• AMP DRAW (full load): Motor and Voltage Dependent
• CORD LENGTH: 35'; type SOOW W
• VOLTAGE: Available in 208v/230v 1-phase OR 208v/230v/460v/575v 3-phase
• MAXIMUM LIQUID TEMPERATURE: 140°F (60°C)
• MOTOR: Enclosed, oil cooled induction

Myers 3WHV/V3WHV Series Performance Curve

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Myers 3WHV/V3WHV Series Product Resources

Download Myers 3WHV/V3WHV Owners Manual

Download Myers 3WHV/V3WHV Specifications

Download Myers 3WHV/V3WHV Parts List
