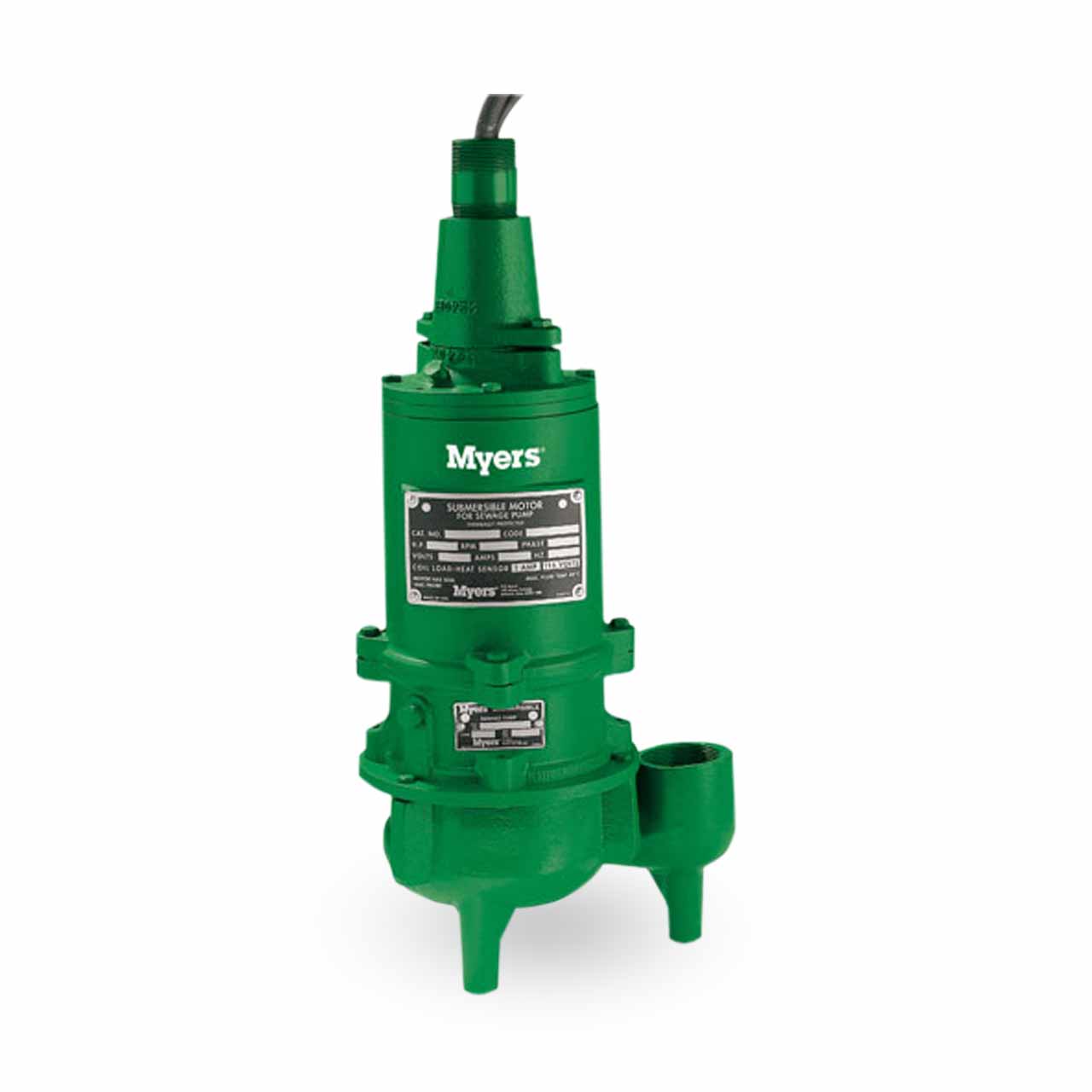

Myers SX50H-53 Explosion-Proof Submersible Pump 0.5 HP 3 PH 575V
Myers SX50H-53 Explosion-Proof Submersible Pump 0.5 HP 3 PH 575V
SKU : MYRSX50H53
In Stock Quantity:0
:
Brand
:
Shipping calculated at checkout.
Couldn't load pickup availability
Description
Description
DISCONTINUED - Myers
Myers SX50H Submersible Pump Description
Myers SX50 Series Pumps are versatile performers designed for commercial, municipal and industrial applications. The SX50 (High Flow) and the SX50H (High Pressure) are designed to pump contaminated water containing a wide range of pollutants. Each pump is matched with a safety-proven Myers Control Box (simplex or duplex, single- and three-phase models).
Myers SX50H Submersible Pump Typical Applications
- Class 1, Division 1, Group D Applications
- Commercial Applications
- Municipal Applications
- Sump, Dewatering and Effluent
Myers SX50H Submersible Pump Features
- Tough, Safe Performance Rugged and Explosion-Proof Pump Design Commercial, Industrial and Municipal Applications
- Hazardous Duty UL Listed for Use in Class 1, Division 1, Group D Hazardous Locations with Contaminated Water
- Tough Against Corrosion All Cast Iron Construction Resists the Most Extreme Corrosive Environments
- Cool Running Oil-Filled Motor for Continuous Bearing Lubrication and Maximum Heat Dissipation
- Longer Bearing Life Recessed Impeller Reduces Radial Bearing Loads, Increasing Bearing Life
- Built-In Protection Sensor and Probe Protect Against Overheating and Seal Leak
- Easy Starting High-Torque Capacitor Start, Single Phase Motor for Assured Starting Under Heavy Load
Specifications
Specifications
Myers SX50H-53 Submersible Pump Specifications
- VOLTAGE: 3ø, 575V, 60Hz
- HORSEPOWER: 0.5 HP
- AMP DRAW (full load): 1.3
- MOTOR TYPE: High-Torque Capacitor Start, Single-Phase Motor
- RPM: 1750
- MAXIMUM HEAD: 35'
- MAXIMUM CAPACITY: 75 GPM
- SWITCH TYPE: Manual
- MINIMUM SUMP DIAMETER: Simplex: 24" Duplex: 36"
- DISCHARGE PIPE SIZE: 2" NPT
- MAXIMUM SOLIDS HANDLING: 2"
- IMPELLER TYPE: Ductile Iron; Recessed
- CORD LENGTH: 20', Type SOOW
- BODY CONSTRUCTION: Cast Iron, Class 30, ASTM A48
- MAXIMUM LIQUID TEMPERATURE: 266°F (120C)
- HAZARDOUS DUTY: UL Listed for Use in Class 1, Division 1, Group D
- CONTROL BOX REQUIRED
Myers SX50 & SX50H Submersible Pump Performance Data
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Resources
Resources
Myers SX50 & SX50H Submersible Pump Product Resources
Download Myers SX50/SX50H Brochure
