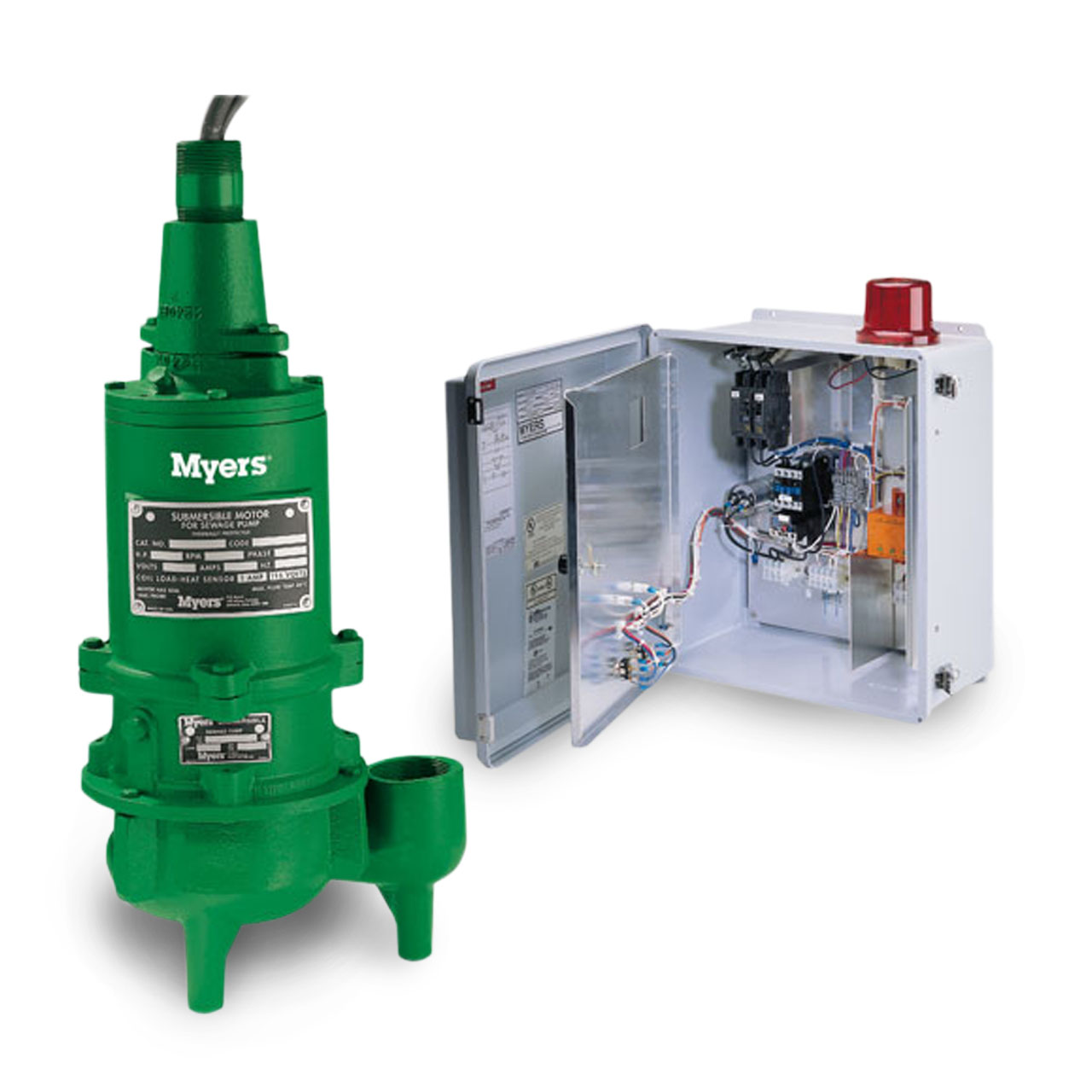

Myers SX50H Submersible Pump Description

The Myers SX Series are heavy-duty cast iron submersible pumps engineered for dewatering applications for commercial and industrial in hazardous environments. These pumps are designed to reduce the risk of vapor igniting the pump in hazardous environments classified as Class 1, Division 1, Group D.

Myers SX50H Submersible Pump Typical Applications

• Class 1, Division 1, Group D Applications
• Commercial Applications
• Municipal Applications
• Sump, Dewatering and Effluent

Myers SX50H Submersible Pump Features

• Constructed for use in Class 1, Division 1, Group D Hazardous Locations
• Designed to Pump Contaminated Water, with a Wide Range of Pollutants Listed Under the CSA Listings
• Myers Intrinsically Safe Control Panel Included
• Oil-Filled Motor for Maximum Heat Dissipation and Constant Bearing Lubrication
• Recessed Impeller Reduces Radial Bearing Loads, Increasing Bearing Life
• High-Torque Capacitor Start, Single-Phase Motor for Assured Starting Under Heavy Load
• Seal Leak Probes Warn of Seal Leak Condition
• On-Winding Heat Sensors Protect Motor from Overheating and Prevent Costly Motor Damage

Myers SX50H-23PS Submersible Pump Specifications

• BODY CONSTRUCTION: Cast Iron, Class 30, ASTM A48
• HORSEPOWER: 0.5 HP
• RPM: 1750
• MAXIMUM HEAD: 35'
• MAXIMUM CAPACITY: 73 GPM
• SWITCH TYPE: Tethered Float Connected to Control Box
• MINIMUM SUMP DIAMETER: Simplex: 24" Duplex: 36"
• DISCHARGE PIPE SIZE: 1.5" NPT
• MAXIMUM SOLIDS HANDLING: 3/4"
• CORD LENGTH: 15', Type SOOW
• FULL LOAD AMPS: 3.8
• VOLTAGE: 3ø 230V
• MAXIMUM LIQUID TEMPERATURE: 266°F (120C)
• IMPELLER: Recessed, Cast Iron, Class 20, A48

Myers SX50 & SX50H Submersible Pump Performance Data
