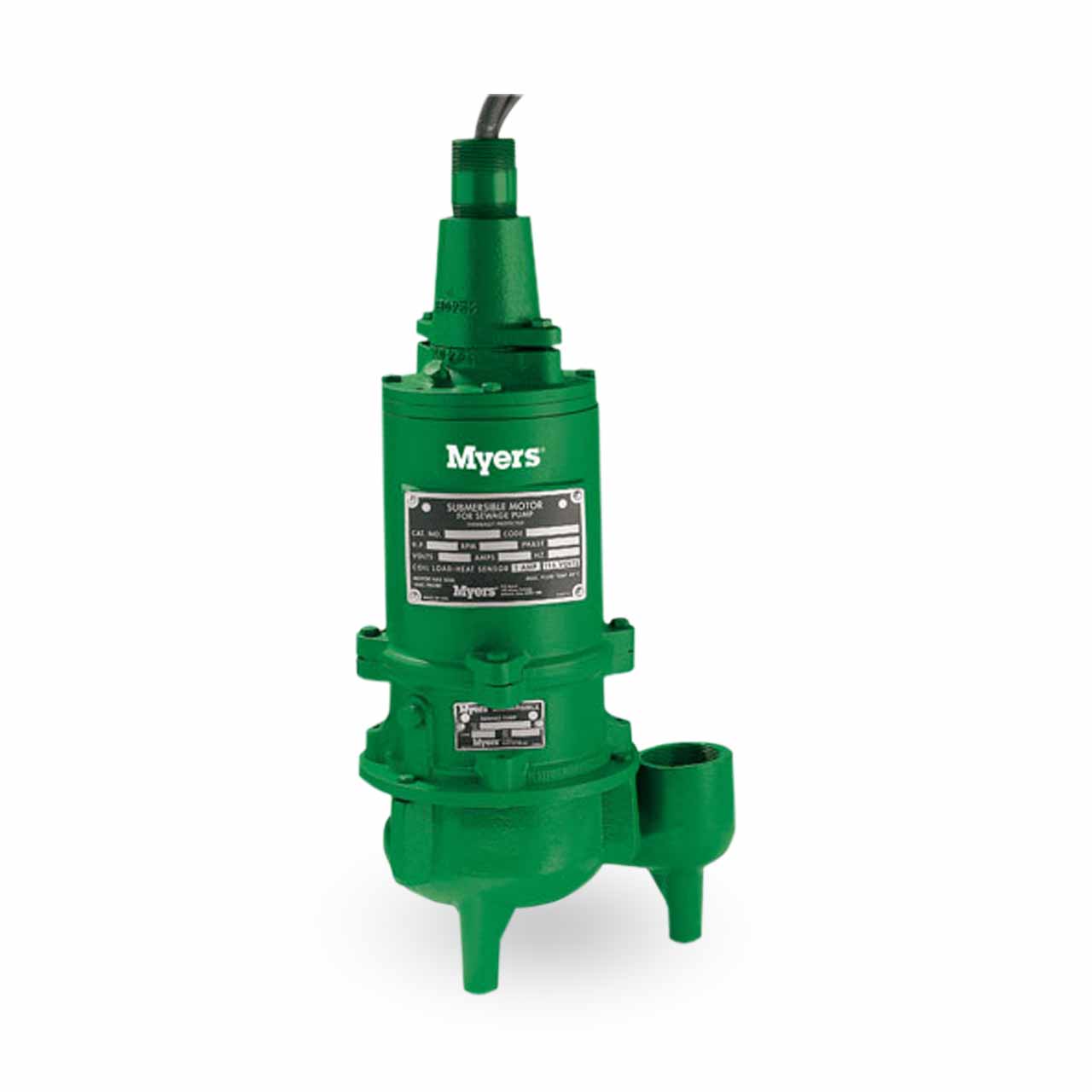

Myers SX150H Submersible Pump Description

Myers SX50 Series Pumps are versatile performers designed for commercial, municipal and industrial applications. The SX50 (High Flow) and the SX50H (High Pressure) are designed to pump contaminated water containing a wide range of pollutants. Each pump is matched with a safety-proven Myers Control Box (simplex or duplex, single- and three-phase models).

Myers SX150H Submersible Pump Typical Applications

• PUMP
• Tough, Safe Performance Rugged and Explosion-Proof Pump Design Commercial, Industrial and Municipal Applications
• Hazardous Duty UL Listed for Use in Class 1, Division 1, Group D Hazardous Locations with Contaminated Water
• Tough Against Corrosion All Cast Iron Construction Resists the Most Extreme Corrosive Environments
• Cool Running Oil-Filled Motor for Continuous Bearing Lubrication and Maximum Heat Dissipation
• Longer Bearing Life Recessed Impeller Reduces Radial Bearing Loads, Increasing Bearing Life
• Built-In Protection Sensor and Probe Protect Against Overheating and Seal Leak
• Easy Starting High-Torque Capacitor Start, Single Phase Motor for Assured Starting Under Heavy Load
• CONTROL PANEL
• NEMA 4X Enclosure with Inner Door
• Seperate Pump and Control Circuit Breaker
• H-O-A Switch
• Run, Seal, Leak Alarm Light

Myers SX150H-01 Submersible Pump Specifications

• BODY CONSTRUCTION: Cast Iron
• HORSEPOWER: 1.5 HP
• RPM: 3450
• MAXIMUM HEAD: 62'
• MAXIMUM CAPACITY: 68 GPM
• MINIMUM SUMP DIAMETER: Simplex: 24" Duplex: 36"
• DISCHARGE PIPE SIZE: 1.5" NPT
• MAXIMUM SOLIDS HANDLING: 3/4"
• CORD LENGTH: 15', Type SOOW
• FULL LOAD AMPS: 12
• VOLTAGE: 1ø, 208V
• MAXIMUM LIQUID TEMPERATURE: 266°F (120C)
• IMPELLER: Recessed, Cast Iron, Class 20, A48

Myers SX150H Submersible Pump Performance Data
