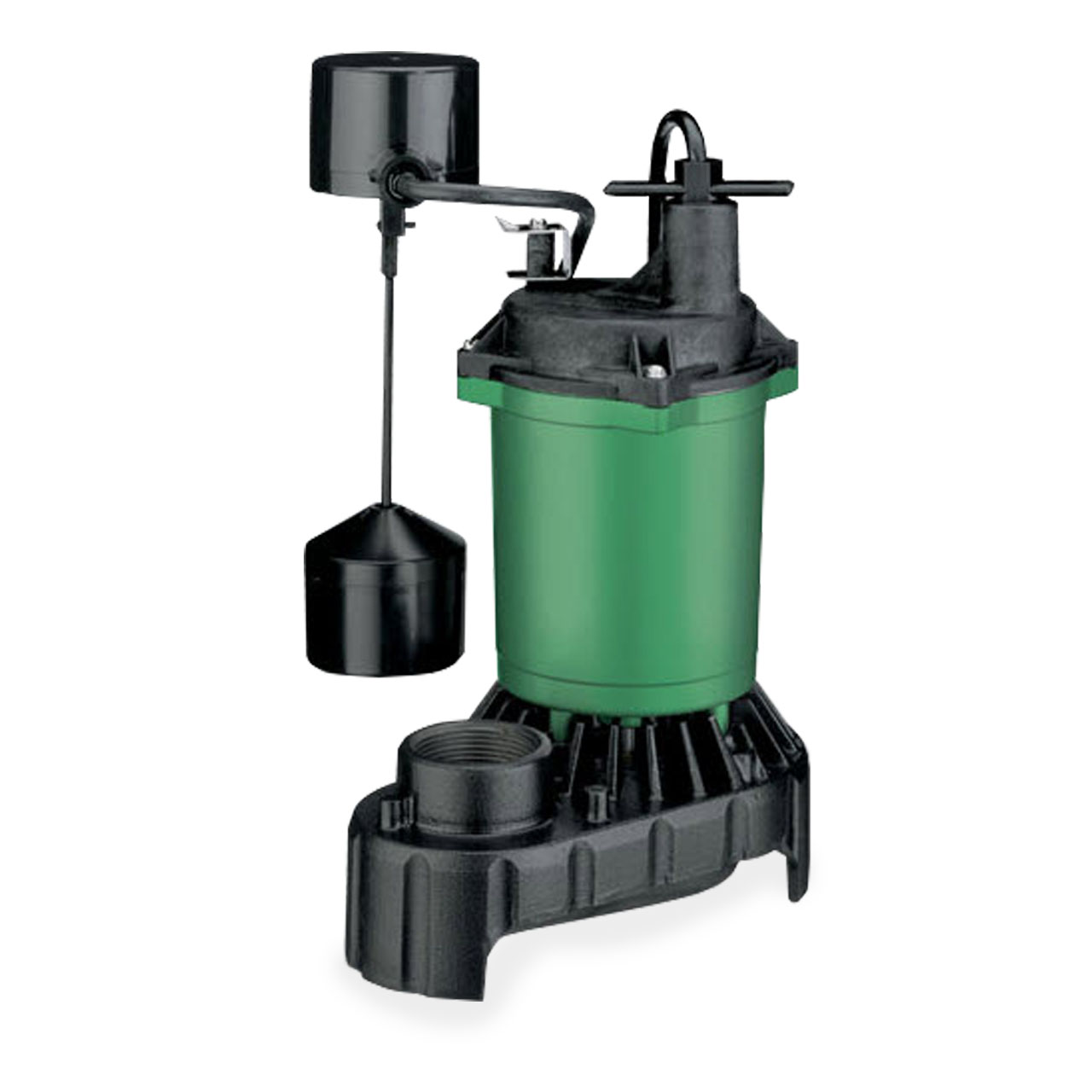

Myers MS33 Submersible Sump Pump Description

Versatile, long-life basement sump pump also appropriate for many light-duty dewatering jobs. Designed for drain water removal or permanent applications with small amounts of debris. Available in 1/3 or 1/2 HP and your choice of vertical or tethered float switch.

Myers MS33 Submersible Sump Pump Typical Applications

• Drainwater Removal
• Sump Applications with Small Amounts of Debris

Myers MS33 Submersible Sump Pump Features

• Versatility for Many Light-Duty Jobs
• Designed for Drain Water Removal or Permanent Applications with Small Amounts of Debris
• Maintenance-Free Operation
• Wide-Angle for 14" Larger Sumps. Vertical Switch or Diaphragm Switch for Small 10" or Larger Sump
• Dual Ball-Bearing Motor and Double Lip Seal Provide Durability and Longer Pump Life
• Durable PSC Motor for Years of Service
• Oil-Filled Motor for Maximum Heat Dissipation, Continuous Bearing Lubrication
• Thermal Overload Protection with Automatic Reset
• CSA Listed

Myers MS33PV20 Submersible Sump Pump Specifications

• VOLTAGE: 1ø, 115V, 60Hz
• HORSEPOWER: 0.33 HP
• AMP DRAW (full load): 3.9
• MOTOR TYPE: Permanent Split Capacitor (PSC)
• RPM: 3450
• MAXIMUM HEAD: up to 24'
• MAXIMUM CAPACITY: up to 52 GPM
• SWITCH TYPE: Vertical
• SWITCH 'ON' LEVEL: 7.5” (190.5 mm)
• SWITCH 'OFF' LEVEL: 3” (76 mm)
• MINIMUM SUMP DIAMETER: 14" (356 mm)
• DISCHARGE PIPE SIZE: 1-1/2"
• MAXIMUM SOLIDS HANDLING SIZE: 1/4"
• CORD LENGTH: 20'
• BODY CONSTRUCTION: Zinc and Cast Iron
• MAXIMUM LIQUID TEMPERATURE: 140°F (60°C)

Myers MS33 Submersible Sump Pump Performance Data

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Myers MS33 Submersible Sump Pump Product Resources

Download Myers MS33 Series Specification Data

Download Myers MS33 Series Installation & Service Manual
