Discontinued See Replacement: Myers MDC33TCI20 Cast Iron Sump Pump 0.33 HP 115V 20' Cord Automatic

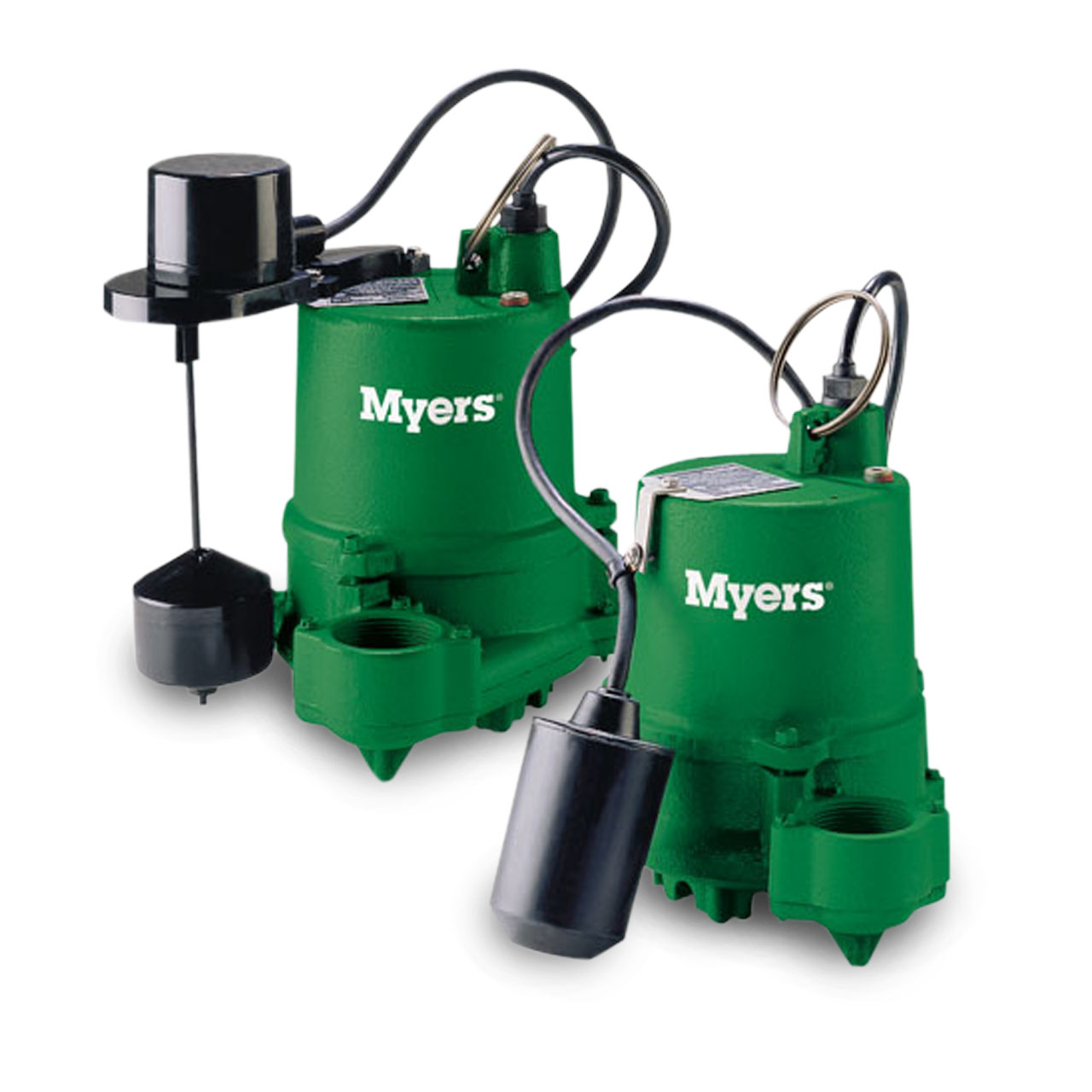

Myers SSM33I Sump Pump Description

The Myers SSM33I Series Pumps are engineered for performance in a variety of demanding drainage applications. The 1/3-hp sump pump's heavy-duty cast iron housing and oil-filled motor maximize heat dissipation for trouble-free operation and years of reliable service. Models available with tethered or vertical switch.

Myers SSM33I Sump Pump Typical Applications

• Drainwater Removal
• Light Septic Tank Effluent

Myers SSM33I Sump Pump Features

• Rugged and Reliable Durable, Oil-Filled Motor Provides Continuous Bearing Lubrication and Maximum Heat Dissipation.
• Versatile Performance Designed for Demanding Drainage Applications, Light Septic Tank Effluent and Basement Sump.
• Heavy-Duty Design Rugged Cast Iron Housing and Volute Aid in Heat Dissipation and Stand Touch in Harsh Conditions.
• Choice of Switch Types Available in Manual, Tethered Automatic, or Vertical Automatic.
• Ease of Flow Recessed Vortex Impeller for Free Flow Passages Solids and Liquid.
• Overload Protection Shaded Pole Motor Eliminates Failure-Prone Switches and Relays.
• Heat Safety Heat Sensor Protection With Automatic Reset When Motor Cools to a Safe Operation Temperature.

Myers SSM33IPC-1 Sump Pump Specifications

• VOLTAGE: 1ø, 115V, 60 Hz
• HORSEPOWER: 0.33 HP
• AMP DRAW (full load): 9
• MOTOR TYPE: Shaded Pole
• MAXIMUM HEAD: up to 23' ft.
• MAXIMUM CAPACITY: up to 31 GPM
• SWITCH TYPE: Tethered
• SWITCH 'ON' LEVEL: 9.94” (252 mm)
• SWITCH 'OFF' LEVEL: 4.06” (103 mm)
• MINIMUM SUMP DIAMETER: 12" (304.8 mm)
• DISCHARGE PIPE SIZE: 1-1/2" NPT
• MAXIMUM SOLIDS HANDLING SIZE: 1/2" (12.7 mm)
• IMPELLER TYPE: Recessed Vortex
• CORD LENGTH: 20'
• CORD SIZE: 16/3; SJTW, SJTW-A
• BODY CONSTRUCTION: Heavy Cast Iron
• MAXIMUM LIQUID TEMPERATURE: 140°F (54C)

Myers SSM33I Sump Pump Performance Data

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Myers SSM33I Sump Pump Product Resources

Download Myers SSM33I Series Specification Data

Download Myers SSM33I Series Installation & Service Manual
