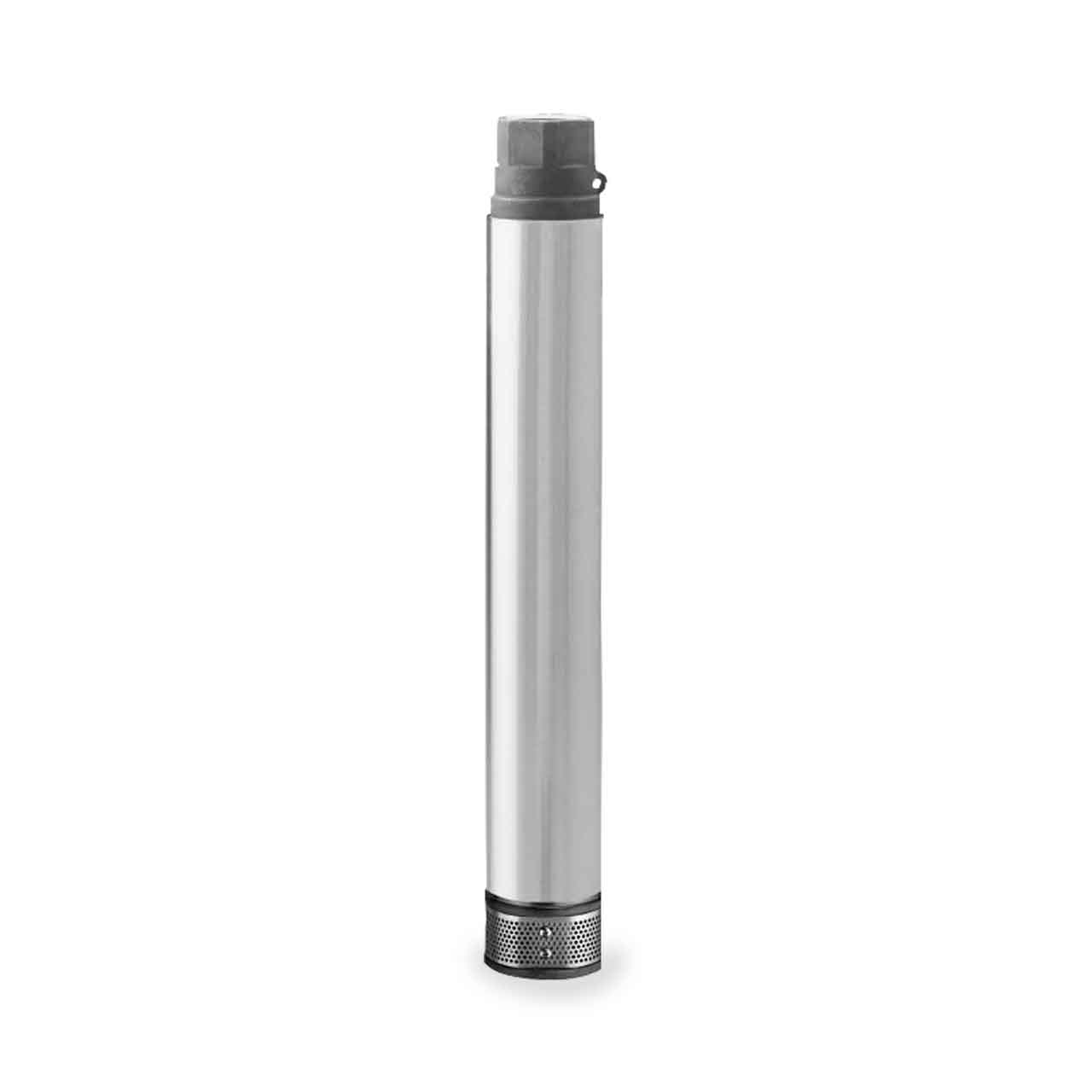

Myers SS50-90-02 Ranger Series 4" Submersible Well Pump End 90 GPM 5.0 HP
Myers SS50-90-02 Ranger Series 4" Submersible Well Pump End 90 GPM 5.0 HP
SKU : MYRSS509002
In Stock Quantity:0
:
Brand
:
Regular price
$1,661.82 USD
Shipping calculated at checkout.
Couldn't load pickup availability
Description
Description
Myers Ranger Series Pump End Description
The Ranger Series 90GPM Stainless Steel 4" High-Flo Submersible Pumps deliver efficient and dependable performance even in rough, aggressive water. New stack design delivers better efficiency and head per stage than previous model.
Myers Ranger Series Pump End Application
- Water Systems - Irrigation, Industrial, Commercial, Multiple Housing and Farm Clean Water Use.
Myers Ranger Series Pump End Features
- Discharge: Heavy-Duty 300 Grade Stainless Steel Construction Provides Smooth Water Passage to Column Pipe. Large Wrench Flats and Rope Hole.
- Top Bearing: Self-Lubricated Top Bearing Ensures Long Bearing Life.
- Impellers: 20% Glass-Reinforced Noryl to Resist Abrasives and Provide Smooth Water Passage for Minimal Friction Loss.
- Diffuser Bearing: Bearings at Each Stage Provide Radial Protection and Stability and Excellent Resistance to Sand Damage.
- Motor Bracket: 300 Grade Precision Cast Stainless Steel. Incorporates and Efficient Hydraulic Design for Maximum Volume and Access to Motor Mounting Nuts.
- Shaft: 300 Grade "Treated" Stainless Steel Pump Shaft is Corrosion-Resistant. The Hex Shape Offers Generous Impeller Drive Surfaces.
- Motor Coupling: Pressed-On, Sintered 300 Grade Stainless Steel for Maximum Corrosion Resistance Provides Trouble-Free Transfer of Power Between Motor and Pump Shaft.
- Shell: Heavy-Gauge, 300 Series Stainless Steel Pump Shell is Durable and Offers High Corrosion Resistance.
- Intake Screen: 300 Series Stainless Steel Material Offers Maximum Corrosion Resistance and Protects against Damaging Solids Entering the Pump.
Specifications
Specifications
Myers SS50-90-02 Ranger Series Pump End Specifications
- DISCHARGE SIZE: 2.0” NPT
- NOMINAL FLOW RATING: 90 GPM
- HORSEPOWER: 5.0 HP
- MAXIMUM CAPACITY: up to 125 GPM
- MAXIMUM HEAD: up to 280'
- STAGES: 13
- IMPELLER DESIGN: Floating Stack
- IMPELLER MATERIAL: Engineered Composite
- BODY MATERIAL: 304 Stainless Steel
Myers Ranger Series Pump End Curve
